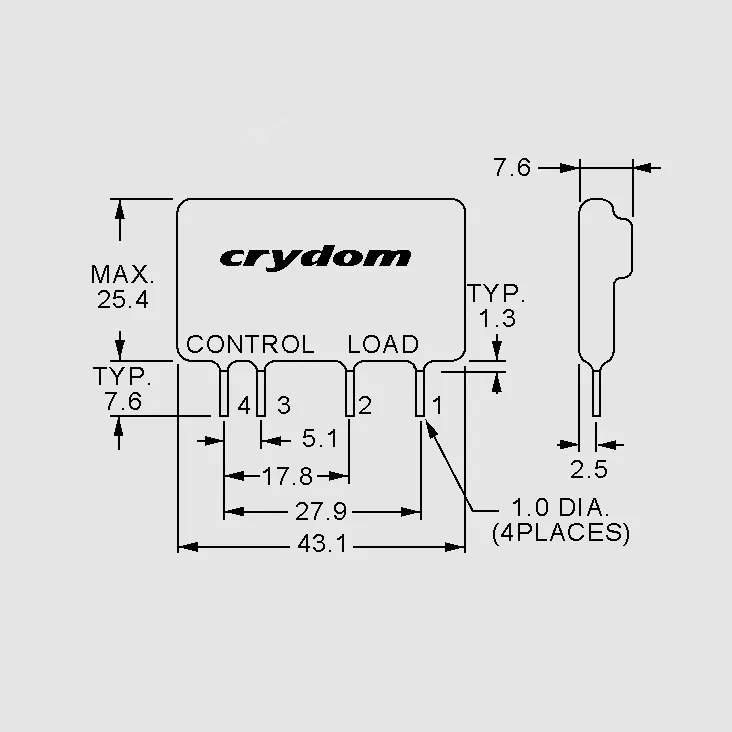

Solid State Ucntrl: 18÷36VAC; 5A; 12÷280VAC Z-Vers. SIP4
Varenummer:
107-945
Varekode: CXE240A5
0 stk.
på lager
Ved bestilling nu, får vi dem hjem torsdag d. 5/11
Vis lignende produkter i kategorien "Lastrelæ T. DIN skinne"
• Isolation voltage 4kV
• Operating temperature range -30...+80°C
|
 |
| |
|
|
|
|
|
CX_ |
UContr |
ULoad |
UDRM |
IT |
ITSM |
|
[V AC] |
[V AC] |
[VPeak] |
[A] |
[A] |
240A5 |
90...140 |
12...280 |
600 |
5 |
250 |
E240A5 |
18...36 |
12...280 |
600 |
5 |
250 |
UContr = Control Voltage, ULoad = Max. Load Voltage (Zero-Voltage Switching), UDRM = Max. Off-State Output Voltage, IT = Max. Effective On-State Current, ITSM = Peak Forward Surge Current
|
|
| |
|
|
|
|
|
CX_ |
UContr |
ULoad |
UDRM |
IT |
ITSM |
|
[V DC] |
[V AC] |
[VPeak] |
[A] |
[A] |
240D5 |
3...15 |
12...280 |
600 |
5 |
250 |
E240D5 |
15...32 |
12...280 |
600 |
5 |
250 |
240D5R |
3...15 |
12...280 |
600 |
5 |
250 |
380D5 |
4...15 |
48...530 |
1200 |
5 |
250 |
E380D5 |
15...32 |
48...530 |
1200 |
5 |
250 |
480D5 |
4...15 |
48...660 |
1200 |
5 |
250 |
| UContr = Control Voltage, ULoad = Load Voltage (_ = Zero-Voltage Switching, R = Instantaneous Switching), UDRM = Max. Off-State Output Voltage, IT = Max. Effective On-State Current, ITSM = Peak Forward Surge Current |
|
| Additional Products |
| We will also deliver on request all other articles from Crydom, forward orders possible, delivery time approx. 8 weeks. |
|
|
