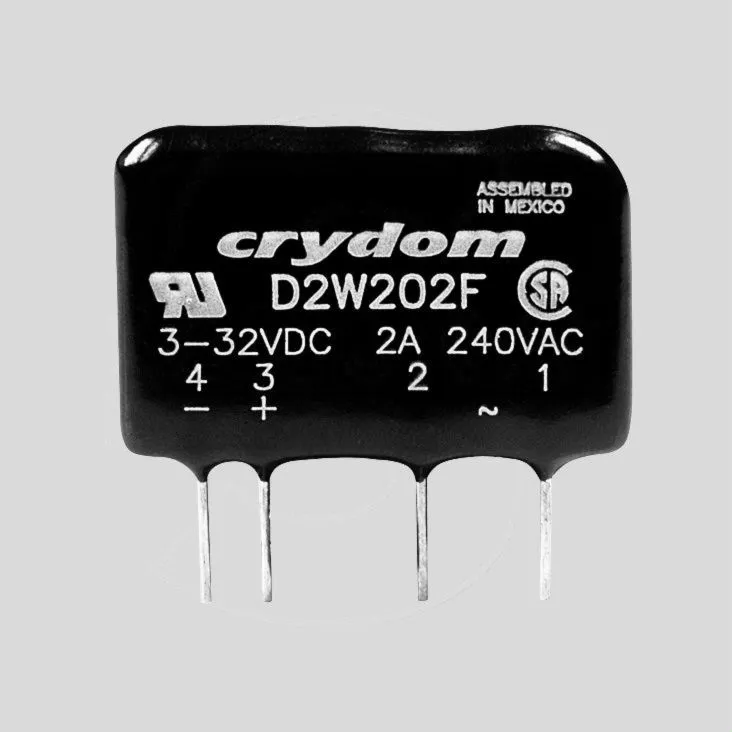

Solid State Ucontr. 3-32Vdc Z-Vers. 280V 2A SIP4
Varenummer:
107-938
Varekode: D2W202F
Vægt: 24 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem tirsdag d. 10/11
Gruppe: X8753
CRYDOM Electronic Solid State Relays for Alternating Voltage Triac Output
Series: D2W_
Case: SIP/SIL
| Technical Specifications |
| • Isolation voltage 4kV • Zero crossing circuit • Operating temperature range -30...+80°C |
 |
| D2W_ | UContr | ULoad | UDRM | IT | ITSM | [V DC] | [V AC] | [VPeak] | [A] | [A] | 202F | 3...32 | 24...280 | 600 | 2 | 28 | 203F | 3...32 | 24...280 | 600 | 3 | 70 | |||||||
| UContr = Control Voltage, ULoad = Load Voltage (Zero-Voltage Switching), UDRM = Max. Off-State Output Voltage, IT = Max. Effective On-State Current, ITSM = Peak Forward Surge Current | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| Labelling |
 |
|
| Approvals |
  |
|
| Additional Products |
| We will also deliver on request all other articles from Crydom, forward orders possible, delivery time approx. 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.crydom.com |
|
Inkl. moms
Kr. 363,68
- v/10 – Kr. 315,94
- v/25 – Kr. 243,20
