2xOptoc. 5kV 35V 50mA >50% DIP8
Varenummer:
107-864
Varekode: PC829H
Vægt: 0 g
8 stk.
på lager
Gruppe:
X7255

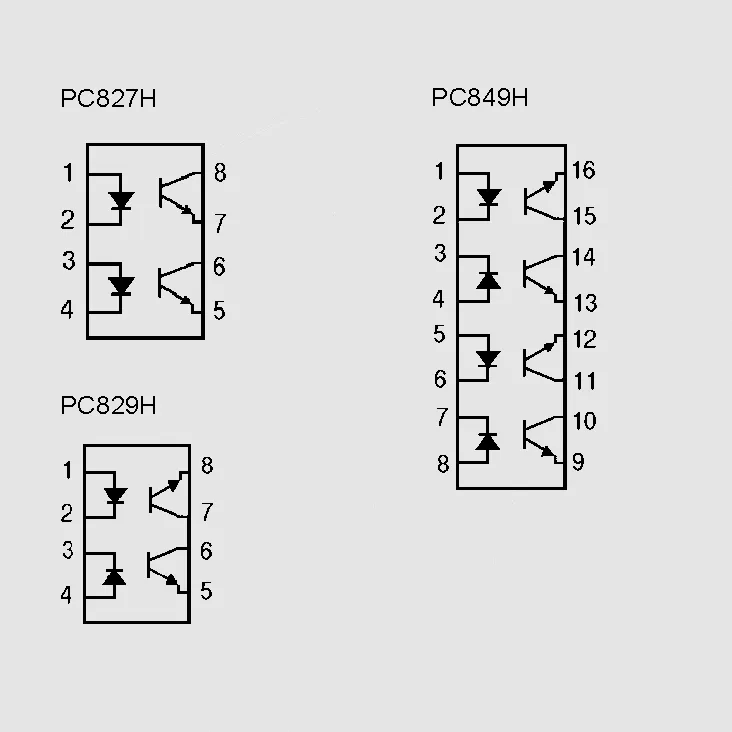

HERO DC Optocouplers
Transistor Output
Series: PC_H
Case: DIP/DIL
HERO DC Optocouplers
Transistor Output
Series: PC_H
Case: DIP/DIL
| Technical Specifications |
| Part Nr. | Approvals | UISO | CTR | @IF | UCEO |
| [V AC] | [%] | [mA] | [V] | ||
| PC827H | UL | 5000 | 50...600 | 5 | 35 |
| PC829H | UL | 5000 | 50...400 | 5 | 35 |
| PC849H | UL | 5000 | 50...400 | 5 | 35 |
| UISO = Isolation Voltage, CTR = Current Transfer Ratio, IF = Forward Current, UCEO = Collector Emitter Voltage At Open Base | |||||
 | |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| Hero |
|
