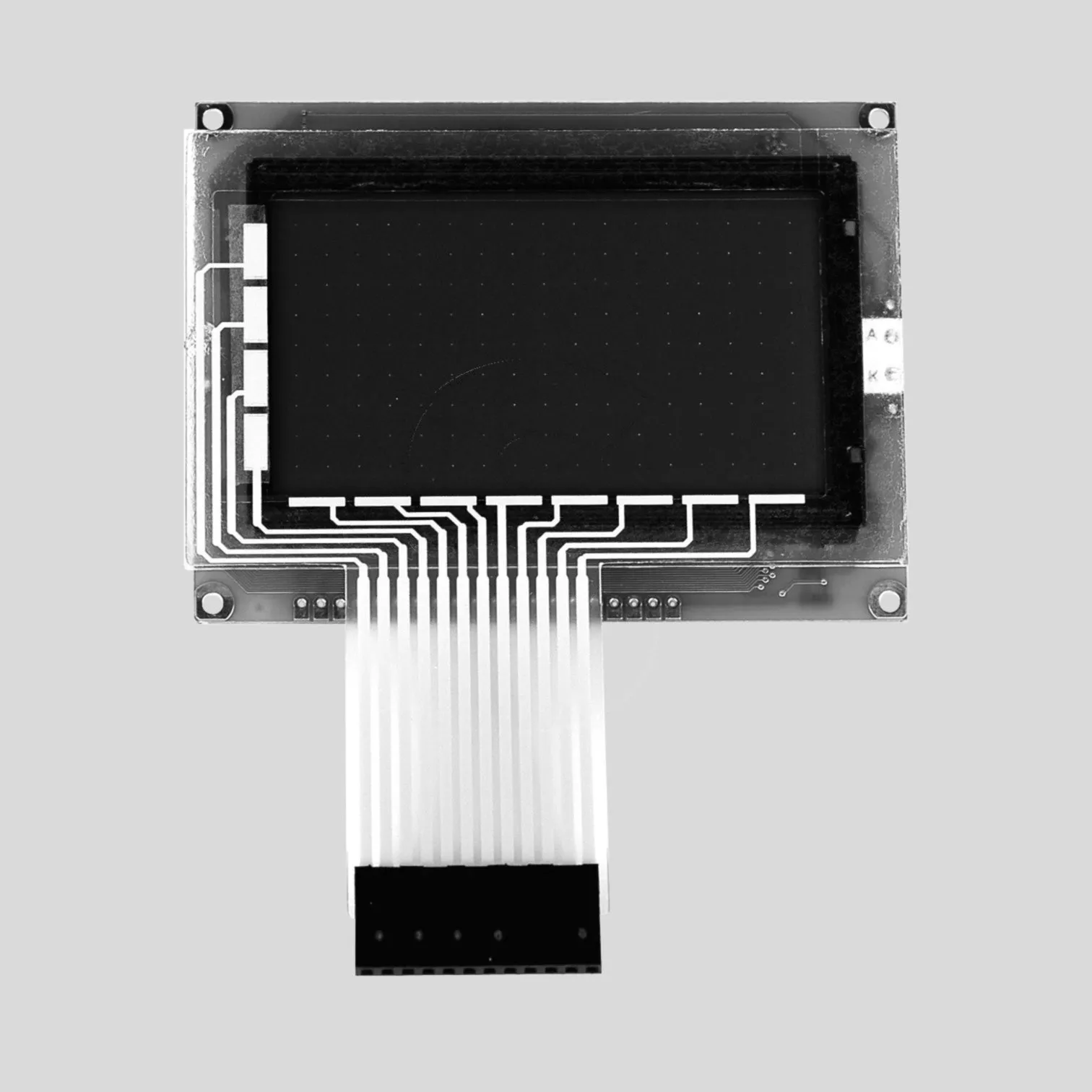

LCD-Graphicm+TP 114,0x64,0mm 240x128
Varenummer:
107-718
Varekode: EAW240-7KHLEDTP
Vægt: 231 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 31/10
Gruppe:
W6243
ELECTRONIC ASSEMBLY LCD-Graphic-Modules STN Monochrome With Backlight With Touch Panel
Series: EAP_LEDTP, EAW_LEDTP
Background: Yellow/Green
Pixels: Black
ELECTRONIC ASSEMBLY LCD-Graphic-Modules STN Monochrome With Backlight With Touch Panel
Series: EAP_LEDTP, EAW_LEDTP
Background: Yellow/Green
Pixels: Black
| Technical Specifications |
| High contrast LCD-STN display Suitable Touch Panel included Interface for 8-Bit data bus Supply voltage, typ. +5,0V Operating temperature range -20...+70C |
 |
| EA_ | Type | Format | V-Area | LxWxD |
| [HxV] | [mm] | [mm] | ||
| P120-5N_ | STN | 120x32 | 62,0x22,4 | 67,9x32,6x9,2 |
| W128B-6N2_ | STN | 128x64 | 72,0x40,0 | 93x70x15,1 |
| STN = Super Twisted Nematic, H = Horizontal (Pixel), V = Vertical (Pixel), V-Area = Viewing Area | ||||
| ||||
| EA_ | P-Size | Backl | B-Colour | Tamb |
| [mm] | [C] | |||
| P120-5N_ | 0,42x0,60 | LED | Yellow | -20...+70 |
| W128B-6N2_ | 0,48x0,48 | LED | Yellow | -20...+70 |
| P-Size = Pixel Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating Temperature | ||||
| ||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.lcd-module.de |
|
Inkl. moms
Kr. 2486,69
