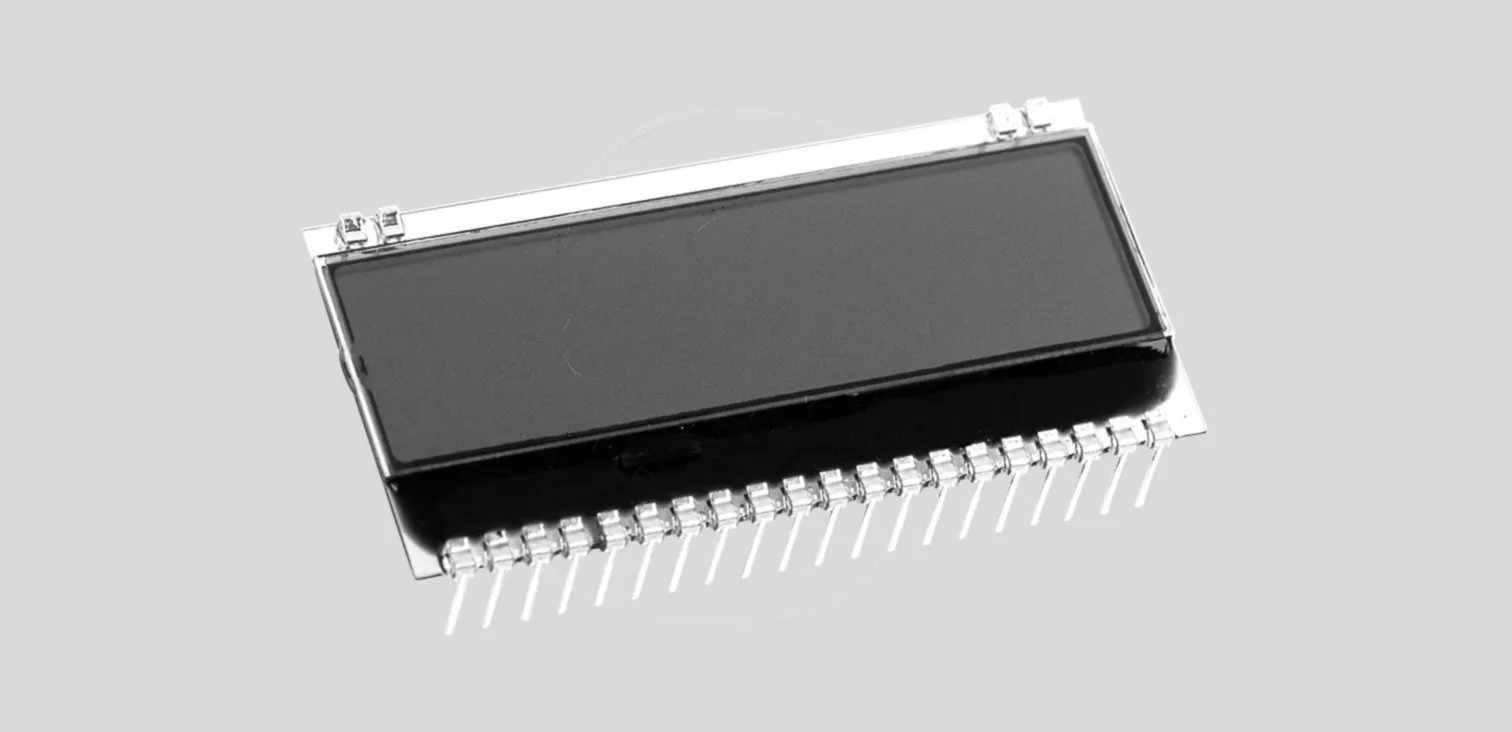

16x3 STN Yellow -20/+70°C COG
Varenummer:
107-644
Varekode: EADOGM163E-A
Vægt: 23 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem mandag d. 9/11
Gruppe:
W4741
ELECTRONIC ASSEMBLY LCD-Dot-Matrix-Modules
COG
Series: EADOGM_
ELECTRONIC ASSEMBLY LCD-Dot-Matrix-Modules
COG
Series: EADOGM_
| Technical Specifications |
| High contrast LCD-STN/FSTN display COG super flat: only 5,8mm with LED backlight Interface for SPI, 4- or 8-Bit data bus Plug-in easily to a socket connector or solder directly into a PCB Supply voltage, typ. +3,3V or +5,0V Operating temperature range -20...+70C |
 |
| EADOGM_ | Type | Chr | V-Area | LxWxD |
| [mm] | [mm] | |||
| 081E-A | STN | 8x1 | 51,0x14,5 | 55x28x2,0 |
| 081L-A | STN | 8x1 | 51,0x14,5 | 55x28x2,0 |
| 081W-A | FSTN | 8x1 | 51,0x14,5 | 55x28x2,0 |
| 162E-A | STN | 16x2 | 51,0x14,5 | 55x28x2,0 |
| 162L-A | STN | 16x2 | 51,0x14,5 | 55x28x2,0 |
| 162W-A | FSTN | 16x2 | 51,0x14,5 | 55x28x2,0 |
| 163E-A | STN | 16x3 | 51,0x14,5 | 55x28x2,0 |
| 163L-A | STN | 16x3 | 51,0x14,5 | 55x28x2,0 |
| 163W-A | FSTN | 16x3 | 51,0x14,5 | 55x28x2,0 |
| STN = Super Twisted Nematic, Chr = Characters x Lines, V-Area = Viewing Area | ||||
| ||||
| EADOGM_ | Chr-Size | Backl | B-Colour | Tamb |
| [mm] | [C] | |||
| 081E-A | 4,97x11,97 | Optional | - | -20...+70 |
| 081L-A | 4,97x11,97 | - | - | -20...+70 |
| 081W-A | 4,97x11,97 | Optional | - | -20...+70 |
| 162E-A | 2,47x5,57 | Optional | - | -20...+70 |
| 162L-A | 2,47x5,57 | - | - | -20...+70 |
| 162W-A | 2,47x5,57 | Optional | - | -20...+70 |
| 163E-A | 2,47x3,65 | Optional | - | -20...+70 |
| 163L-A | 2,47x3,65 | - | - | -20...+70 |
| 163W-A | 2,47x3,65 | Optional | - | -20...+70 |
| Chr-Size = Character Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating Temperature | ||||
| ||||
| Note |
| You will find suitable LED backlights in product group W6267. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.lcd-module.de |
|
Inkl. moms
Kr. 158,44
- v/10 – Kr. 118,83
- v/25 – Kr. 95,06
