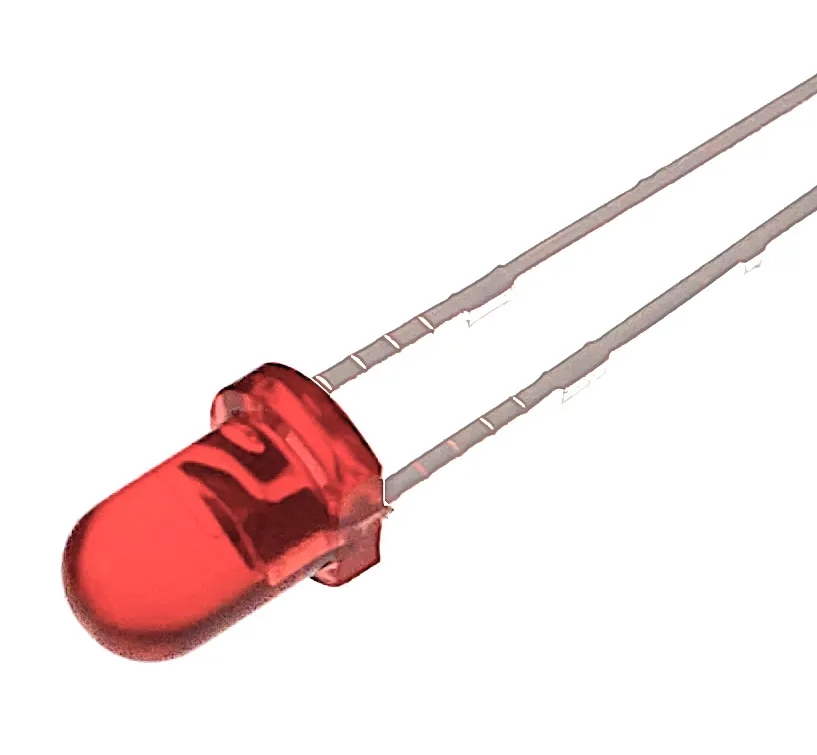

LED Diffuse Red 400mcd 30° 3mm
Varenummer:
107-398
Varekode: EL1254-10SURD/S5
Vægt: 0 g
216 stk.
på lager
Gruppe: W1224
EVERLIGHT Light-Emitting Diodes
Diffuse
High Efficiency
Series: EL1254-10_
Case: 3mm
| Technical Specifications |
| Part Nr. | Colour | WL | VA | LI | @IF | UF | [nm] | [°] | [mcd] | [mA] | [V] | EL1254-10SURD/S5 | Red | 632 | 30 | 400 | 20 | 2,0 | EL1254-10UYD/S5 | Yellow | 591 | 30 | 200 | 20 | 2,0 | EL1254-10SYGD/S5 | Green | 575 | 40 | 63 | 20 | 2,0 | |||||||||
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | |||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find suitable LED holders and spacing pieces in the blue "Passive and Electromechanical Components" catalogue starting at product group H3731 resp. G8293. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.everlight.com |
|
Inkl. moms
Kr. 2,93
- v/10 – Kr. 2,44
- v/25 – Kr. 1,71
- v/100 – Kr. 0,98
- v/1000 – Kr. 0,49
Produktfiler
