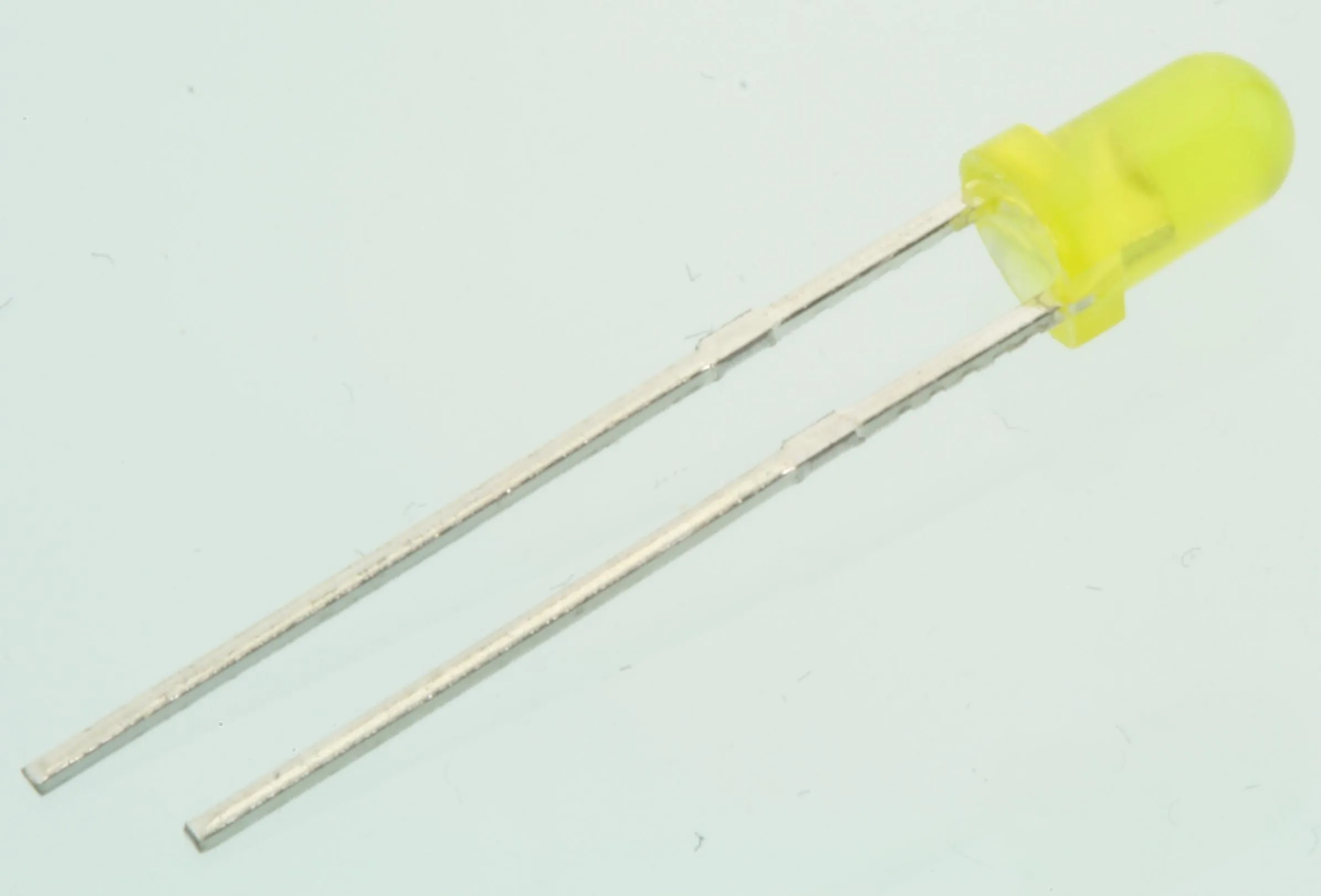

LED Diffuse Yellow 200mcd 40° 3mm
Varenummer:
107-396
Varekode: EL204-10UYD/S53
Vægt: 0 g
171 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 14000 stk. kan skaffes mandag d. 9/11
Gruppe:
W1222
EVERLIGHT Light-Emitting Diodes
Diffuse
Low-Cost
Series: EL204-10_

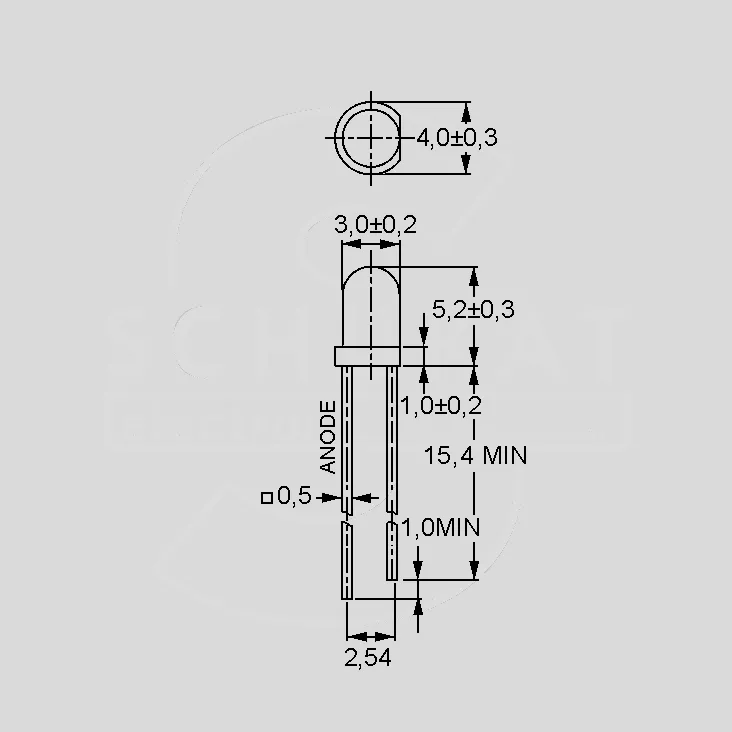

Case: 3mm
W1222
EVERLIGHT Light-Emitting Diodes
Diffuse
Low-Cost
Series: EL204-10_
Case: 3mm
| Technical Specifications |
| Part Nr. | Colour | WL | VA | LI | @IF | UF |
| [nm] | [°] | [mcd] | [mA] | [V] | ||
| EL204-10SURD/S53 | Red | 632 | 45 | 80 | 20 | 2,0 |
| EL204-10UYD/S53 | Yellow | 591 | 40 | 200 | 20 | 2,0 |
| EL204-10SYGD/S53 | Green | 575 | 60 | 50 | 20 | 2,0 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
 | ||||||
| Note |
| You will find suitable LED holders and spacing pieces in the blue "Passive and Electromechanical Components" catalogue starting at product group H3731 resp. G8293. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.everlight.com |
|
Produktfiler
LED Diffuse Yellow 200mcd 40° 3mm
107-396
/ EL204-10UYD/S53
171 stk.
på lager
Bestil nu for afsendelse i morgen
Ved bestilling nu, får vi dem hjem mandag d. 9/11
Gruppe:
W1222
EVERLIGHT Light-Emitting Diodes
Diffuse
Low-Cost
Series: EL204-10_
Case: 3mm
W1222
EVERLIGHT Light-Emitting Diodes
Diffuse
Low-Cost
Series: EL204-10_
Case: 3mm
| Technical Specifications |
| Part Nr. | Colour | WL | VA | LI | @IF | UF |
| [nm] | [°] | [mcd] | [mA] | [V] | ||
| EL204-10SURD/S53 | Red | 632 | 45 | 80 | 20 | 2,0 |
| EL204-10UYD/S53 | Yellow | 591 | 40 | 200 | 20 | 2,0 |
| EL204-10SYGD/S53 | Green | 575 | 60 | 50 | 20 | 2,0 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
| ||||||
| Note |
| You will find suitable LED holders and spacing pieces in the blue "Passive and Electromechanical Components" catalogue starting at product group H3731 resp. G8293. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| |
| http://www.everlight.com |
|
