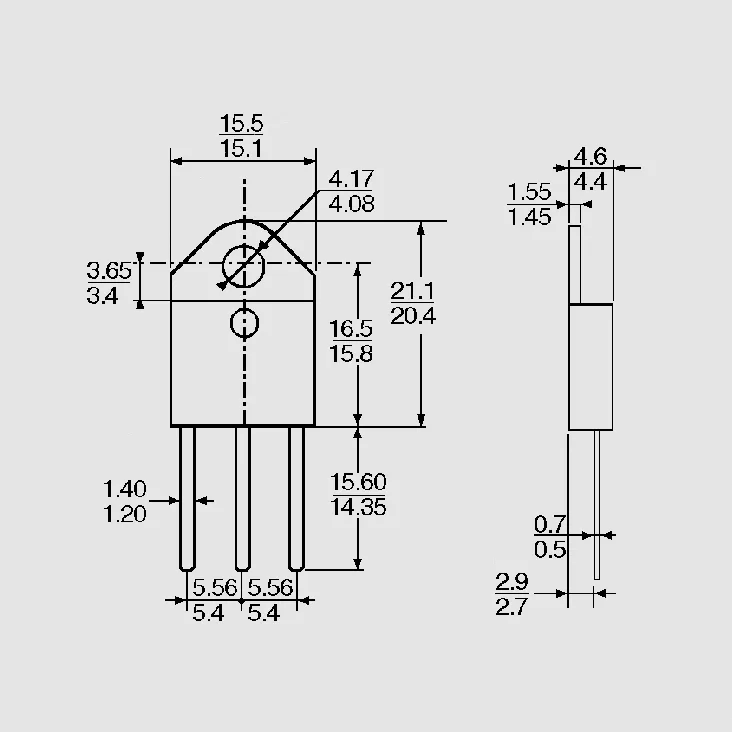

Triac 25A 700V 50mA TOP3

Name: Triac 25A 700V 50mA TOP3
SKU: 107376
Price: 44.23 DKK
Availability: InStock

Varenummer: 107-376

Varekode: BTA26-700B

Vægt: 6 g

2 stk. på lager

Vis lignende produkter i kategorien "< 40A"

Technical Specifications


Part Nr.	U_RRM	I_T(RMS)	@T_C	I_TSM	I_GT
	[V]	[A]	[°C]	[A]	[mA]
BTA06-600B	600	6	105	60	50
BTA06-800B	800	6	105	60	50
BTA08-600B	600	8	110	80	50
BTA10-600B	600	10	95	100	50
BTA10-700B	700	10	95	100	50
BTA12-600B	600	12	90	120	50
BTA16-600B	600	16	75	160	50
BTA25-600B	600	25	90	250	50
BTA26-600B	600	25	90	250	50
BTA26-700B	700	25	90	250	50
BTA40-700B	700	40	95	400	50
BTA41-600B	600	40	80	400	50
BTA41-700B	700	40	80	400	50
BTA140-600	600	25	-	190	35
BTA140-800	800	25	-	190	35
U_RRM = Max. Peak Recurrent Reverse Voltage, I_T(RMS) = Max. RMS Forward Current, T_C = Case Temperature, I_TSM = Peak Forward Surge Current, I_GT = Max. Gate Trigger Current (I - III)

Manufacturer

NXP / STM
http://www.nxp.com
http://www.st.com

Inkl. moms

Kr. 44,23

Produktfiler

107-376

/ BTA26-700B

2 stk. på lager
