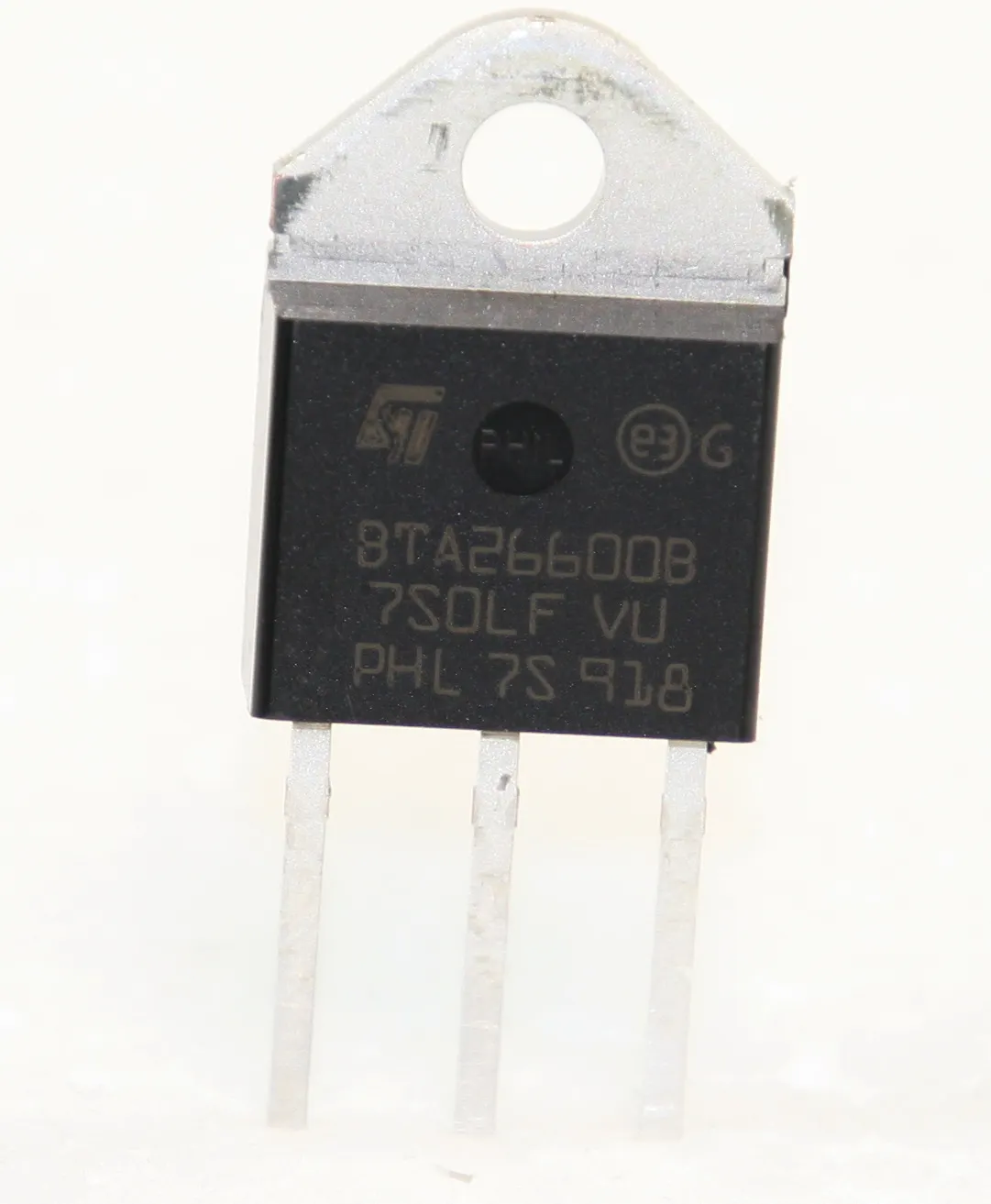

Triac 25A 600V 50mA TOP3
Varenummer:
107-375
Varekode: BTA26-600BRG
Vægt: 6 g
14 stk.
på lager
Produktoplysninger
- Gate Trigger Current Max (QI), Igt: 50mA
- Gate Trigger Voltage Max Vgt: 1.5V
- Holding Current Max Ih: 80mA
- MSL: -
- No. of Pins: 3
- On State RMS Current IT(rms): 25A
- Operating Temperature Max: 125°C
- Peak Gate Power: 1W
- Peak Non Rep Surge Current Itsm 50Hz: 250A
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- SVHC: No SVHC (17-Dec-2014)

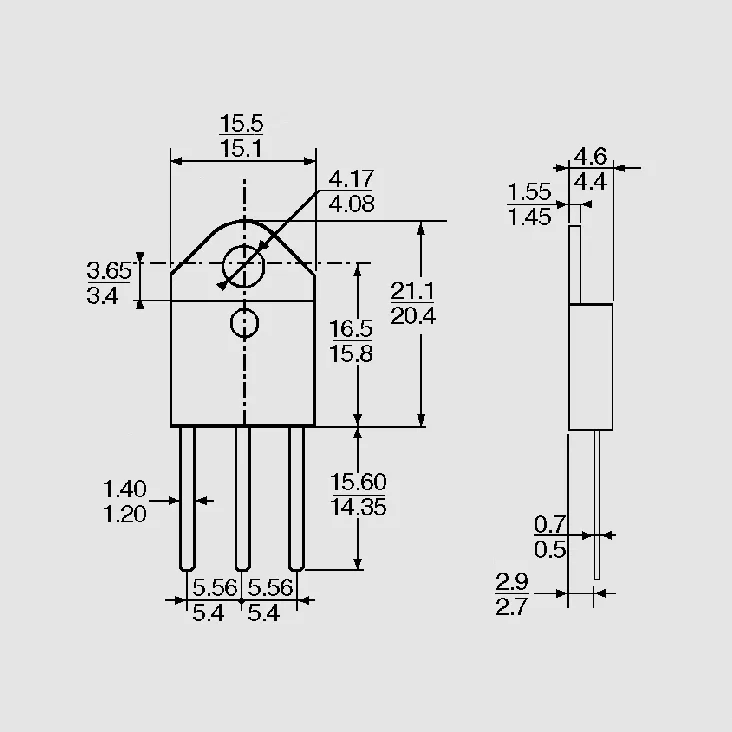

- Triac Case Style: TOP-3
Produktfiler
