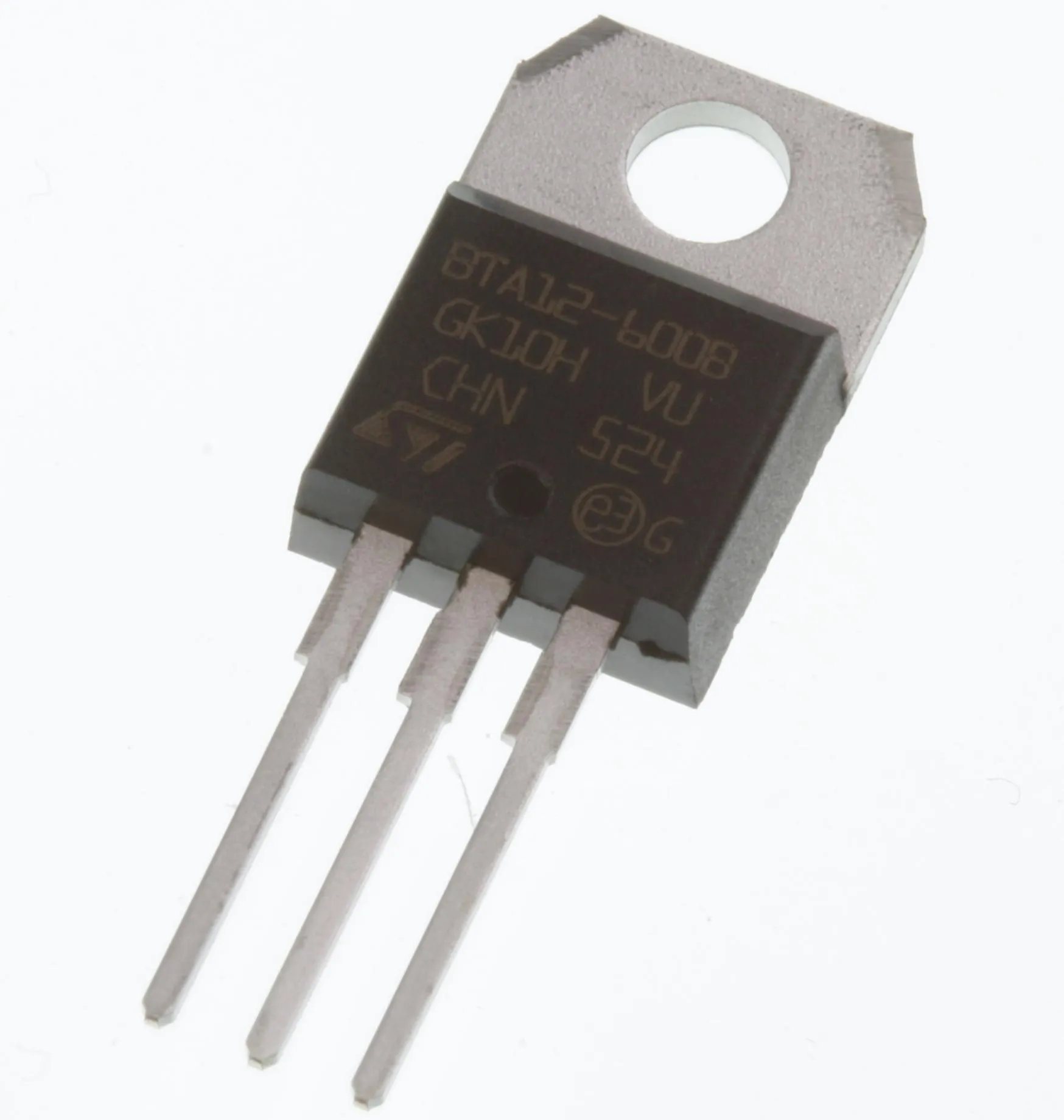

Triac 12A 600V 50mA TO220AB

Varenummer: 107-372
Varekode: BTA12-600B
Vægt: 4 g
14 stk. på lager
Vis lignende produkter i kategorien "< 40A"
Technical Specifications
Part Nr.
 URRM
 IT(RMS)
 @TC
ITSM
 IGT
  [V]
 [A]
 [°C]
 [A]
 [mA]
BTA06-600B 600
 6
 105
 60
 50
BTA06-800B 800
 6
 105
 60
 50
BTA08-600B 600
 8
 110
 80
 50
BTA10-600B 600
 10
 95
 100
 50
BTA10-700B 700
 10
 95
 100
 50
BTA12-600B 600
 12
 90
 120
 50
BTA16-600B 600
 16
 75
 160
 50
BTA25-600B 600
 25
 90
 250
 50
BTA26-600B 600
 25
 90
 250
 50
BTA26-700B 700
 25
 90
 250
 50
BTA40-700B 700
 40
 95
 400
 50
BTA41-600B 600
 40
 80
 400
 50
BTA41-700B 700
 40
 80
 400
 50
BTA140-600 600
 25
 -
 190
 35
BTA140-800 800
 25
 -
 190
 35
URRM = Max. Peak Recurrent Reverse Voltage, IT(RMS) = Max. RMS Forward Current, TC = Case Temperature, ITSM = Peak Forward Surge Current, IGT = Max. Gate Trigger Current (I - III)
Manufacturer
NXP / STM
http://www.nxp.com
http://www.st.com
Inkl. moms
Kr. 11,75
  • v/10 – Kr. 9,75
  • v/50 – Kr. 8,38
Produktfiler
