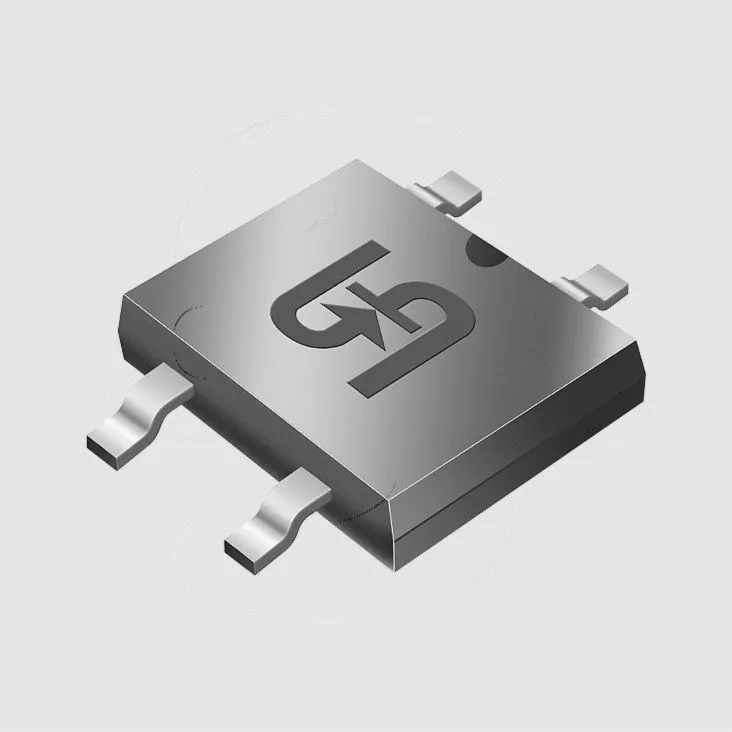

SMD Bridge Rect. 1A 140V(RMS)
Varenummer:
107-299
Varekode: ABS2
Vægt: 0 g
0 stk.
på lager
Gruppe:
V7774
TAIWAN SEMICONDUCTOR (TSC) SMD Bridge Rectifiers 1A
Glass Passivated
Series: ABS_
Case: Thin SMD
TAIWAN SEMICONDUCTOR (TSC) SMD Bridge Rectifiers 1A
Glass Passivated
Series: ABS_
Case: Thin SMD
| Technical Specifications |
| Leads solderable per MIL-STD-202, Meth. 208 Max. solderability 260C/10s Operating temperature range -55...+150C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| ABS2 | 200 | 140 | 0,95 | 1,0 | 10 |
| ABS6 | 600 | 420 | 0,95 | 1,0 | 10 |
| ABS10 | 1000 | 700 | 0,95 | 1,0 | 10 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Inkl. moms
v/10
Kr. 3,58
- v/25 – Kr. 2,04
- v/100 – Kr. 1,28
- v/1000 – Kr. 0,77
Produktfiler
