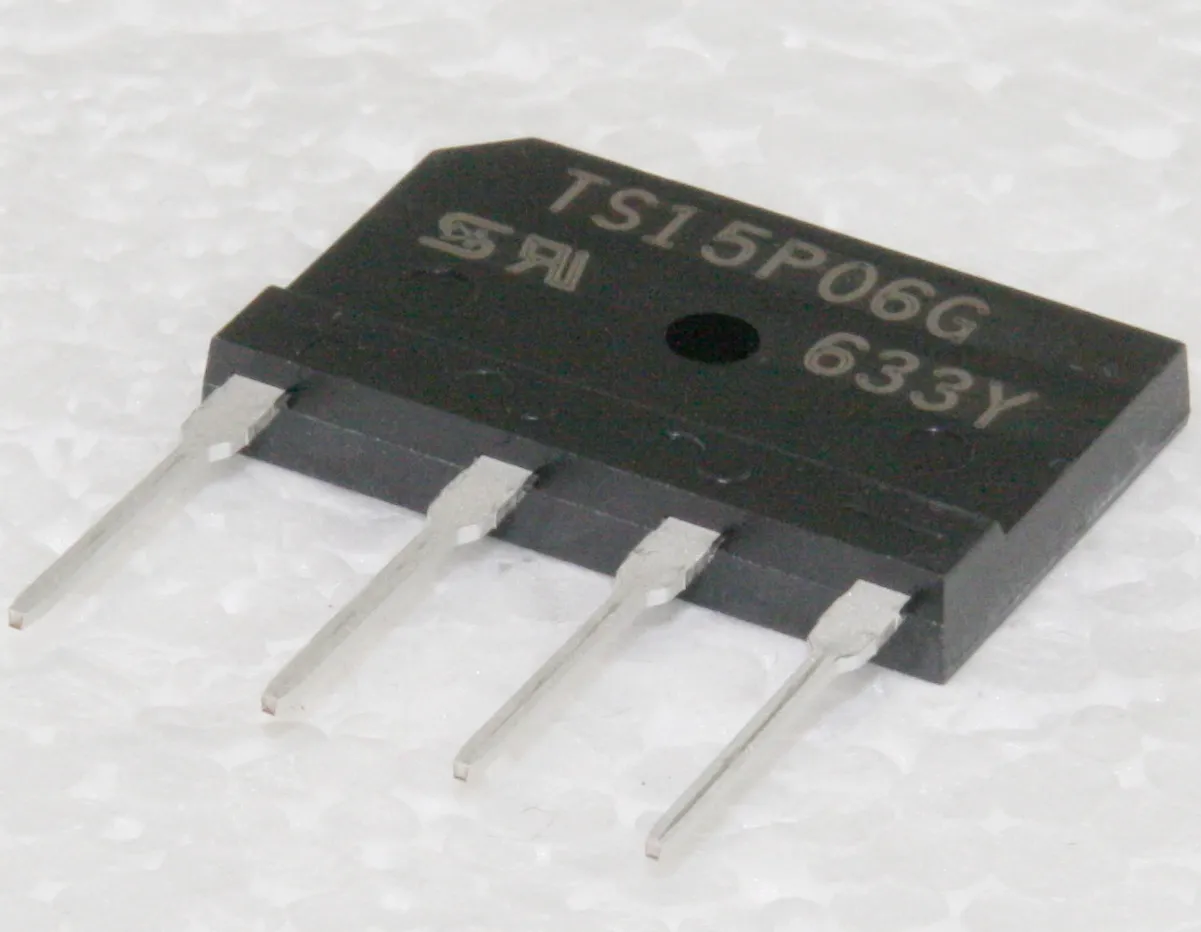

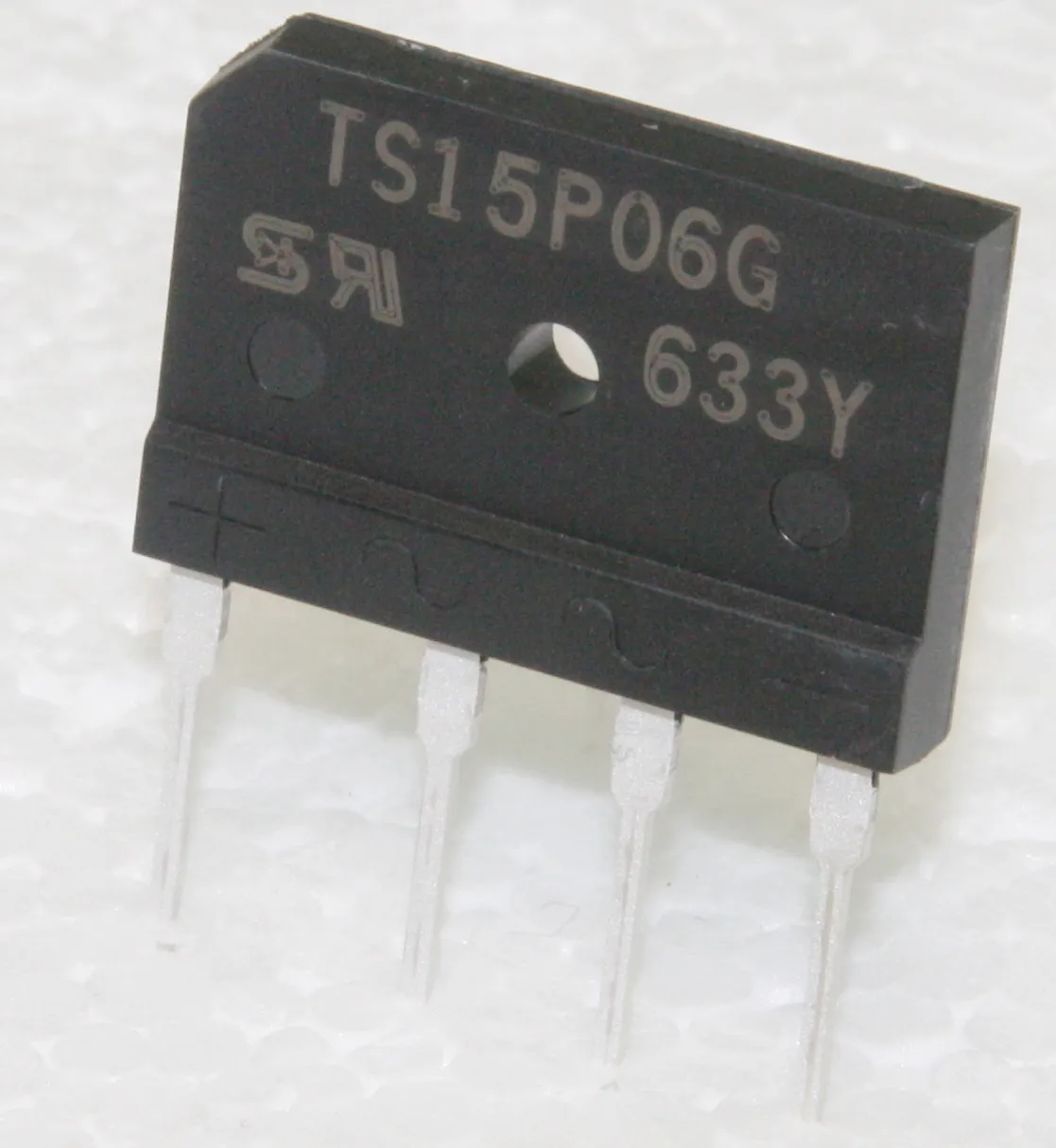

Bridge Rect. 15A 560V(RMS) 7,5/10mm
Varenummer:
107-271
Varekode: TS15P06G
Vægt: 13 g
9 stk.
på lager
Gruppe:
V7587
TAIWAN SEMICONDUCTOR (TSC) Bridge Rectifiers 15A (With Heatsink)
Glass Passivated
Series: TS15P_G
Case: In-Line, Circular Hole, 7,5/10mm Pin Spacing
TAIWAN SEMICONDUCTOR (TSC) Bridge Rectifiers 15A (With Heatsink)
Glass Passivated
Series: TS15P_G
Case: In-Line, Circular Hole, 7,5/10mm Pin Spacing
| Technical Specifications |
| The plastic conforms to UL94V-0 Leads solderable per MIL-STD-750, Meth. 2026 Operating temperature range -55...+150C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| TS15P04G | 400 | 280 | 1,1 | 15,0 | 10 |
| TS15P05G | 600 | 420 | 1,1 | 15,0 | 10 |
| TS15P06G | 800 | 560 | 1,1 | 15,0 | 10 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
| |||||
| Approvals |
 E96005 |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
