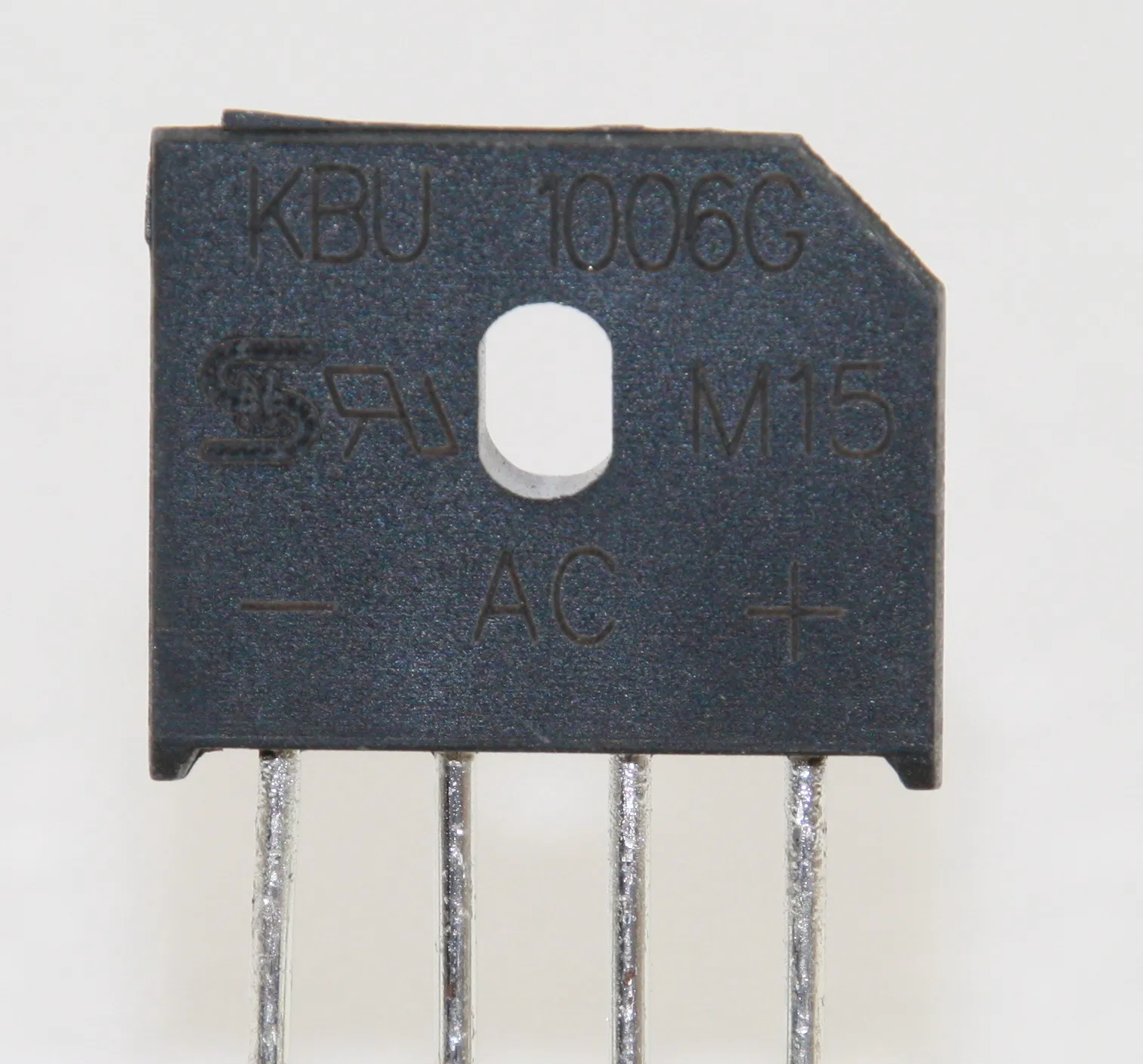

Bridge Rect. 10A 560V(RMS) 5/5mm
Varenummer:
107-268
Varekode: KBU1006G
Vægt: 10 g
85 stk.
på lager
Gruppe:
V7586
TAIWAN SEMICONDUCTOR (TSC) Bridge Rectifiers 10A (With Heatsink)
Glass Passivated
Series: KBU10_G

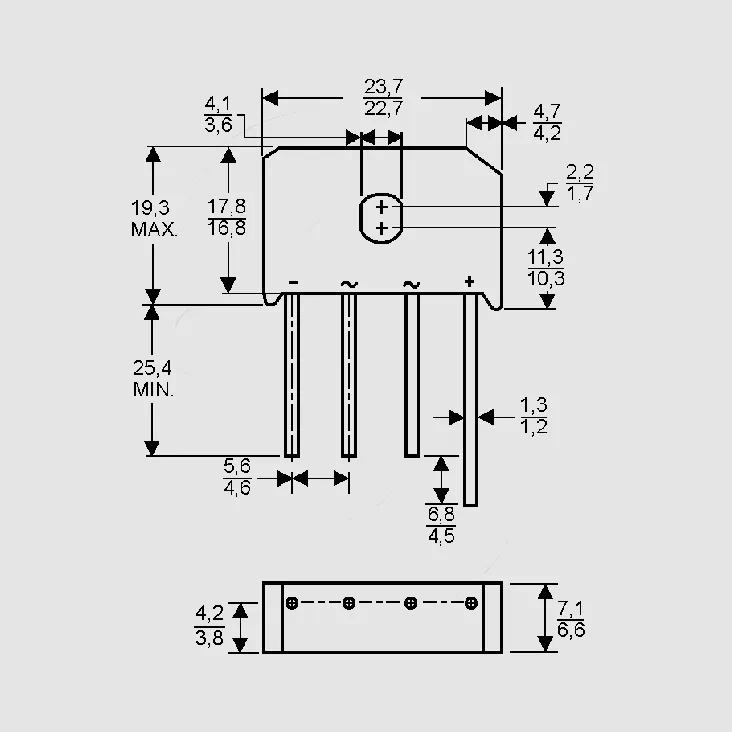

Case: In-Line, Elongated Hole, 5/5mm Pin Spacing
TAIWAN SEMICONDUCTOR (TSC) Bridge Rectifiers 10A (With Heatsink)
Glass Passivated
Series: KBU10_G
Case: In-Line, Elongated Hole, 5/5mm Pin Spacing
| Technical Specifications |
| The plastic conforms to UL94V-0 Max. solderability 260C/10s Operating temperature range -55...+150C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| KBU1002G | 100 | 70 | 1,1 | 10,0 | 5 |
| KBU1004G | 400 | 280 | 1,1 | 10,0 | 5 |
| KBU1006G | 800 | 560 | 1,1 | 10,0 | 5 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
| |||||
| Approvals |
 E96005 |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
