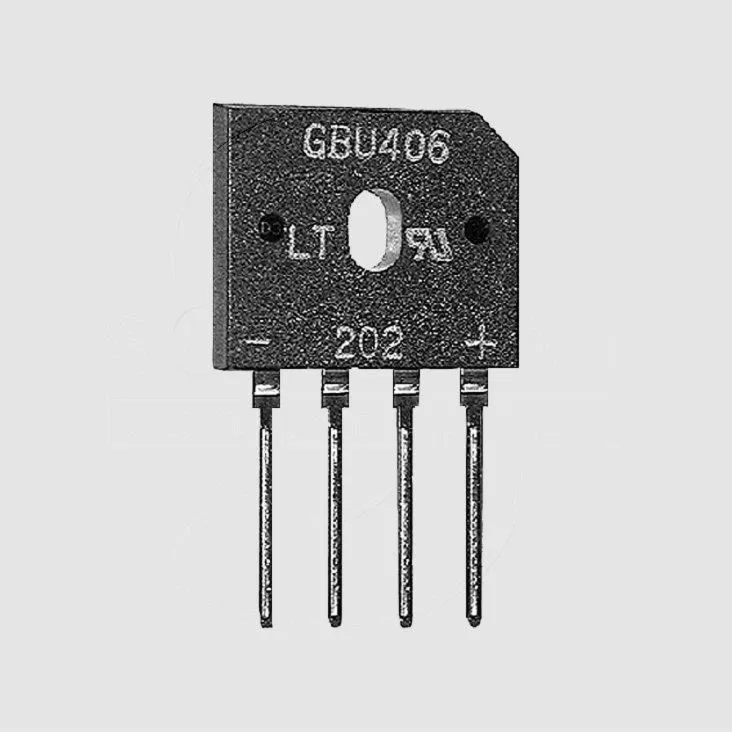

Bridge Rect. 4A 420V(RMS) 5/5mm
Varenummer:
107-259
Varekode: GBU405 C2G
Vægt: 6 g
5 stk.
på lager
Technical Specifications
| • The plastic conforms to UL94V-0 • Leads solderable per MIL-STD-202, Method 208 • Max. solderability 260°C/10s • Operating temperature range -55...+150°C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| GBU402 | 100 | 70 | 1,1 | 4,0 | 5 |
| GBU405 | 600 | 420 | 1,1 | 4,0 | 5 |
| GBU406 | 800 | 560 | 1,1 | 4,0 | 5 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
|
|||||
| Manufacturer |
| http://www.taiwansemi.com |
Inkl. moms
Kr. 9,64
- v/10 – Kr. 7,23
- v/25 – Kr. 6,02
- v/100 – Kr. 4,82
- v/1000 – Kr. 3,61
Produktfiler
Bridge Rect. 4A 420V(RMS) 5/5mm
107-259
/ GBU405 C2G
5 stk.
på lager
Technical Specifications
| • The plastic conforms to UL94V-0 • Leads solderable per MIL-STD-202, Method 208 • Max. solderability 260°C/10s • Operating temperature range -55...+150°C |
|
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| GBU402 | 100 | 70 | 1,1 | 4,0 | 5 |
| GBU405 | 600 | 420 | 1,1 | 4,0 | 5 |
| GBU406 | 800 | 560 | 1,1 | 4,0 | 5 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
|
|||||
| Manufacturer |
| http://www.taiwansemi.com |
