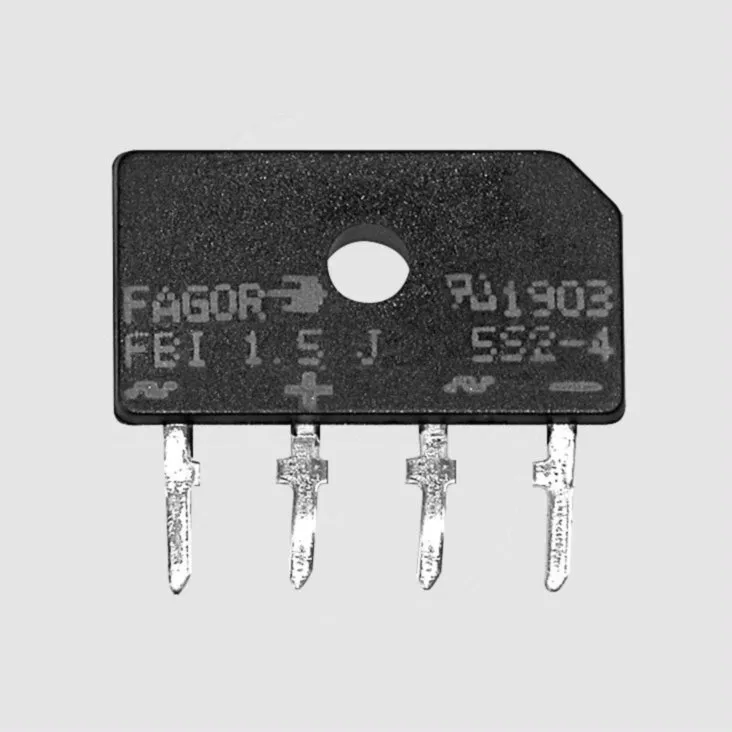

Bridge Rect. 1,5A 420V(RMS) 5/5mm

Name: Bridge Rect. 1,5A 420V(RMS) 5/5mm
SKU: 107250
Price: 12.00 DKK
Availability: OutOfStock

Varenummer: 107-250

Varekode: FBI1,5J5S2-4

0 stk. på lager

Technical Specifications

• The plastic conforms to UL94V-0
• Max. solderability 260°C/10s
• Operating temperature range -40...+150°C


Part Nr.	U_RRM	U_RMS	U_F	I_F(AV)	I_R
	[V]	[V]	[V]	[A]	[μA]
FBI1,5D5S2-4	200	140	1,1	1,5	5
FBI1,5J5S2-4	600	420	1,1	1,5	5
U_RRM = Max. Peak Recurrent Reverse Voltage, U_RMS = Max. RMS Voltage, U_F = Max. Forward Voltage, I_F(AV) = Max. Average Forward Rectified Current, I_R = Max. Reverse Current

Approvals

E130180

Manufacturer

http://www.fagorelectronica.com
