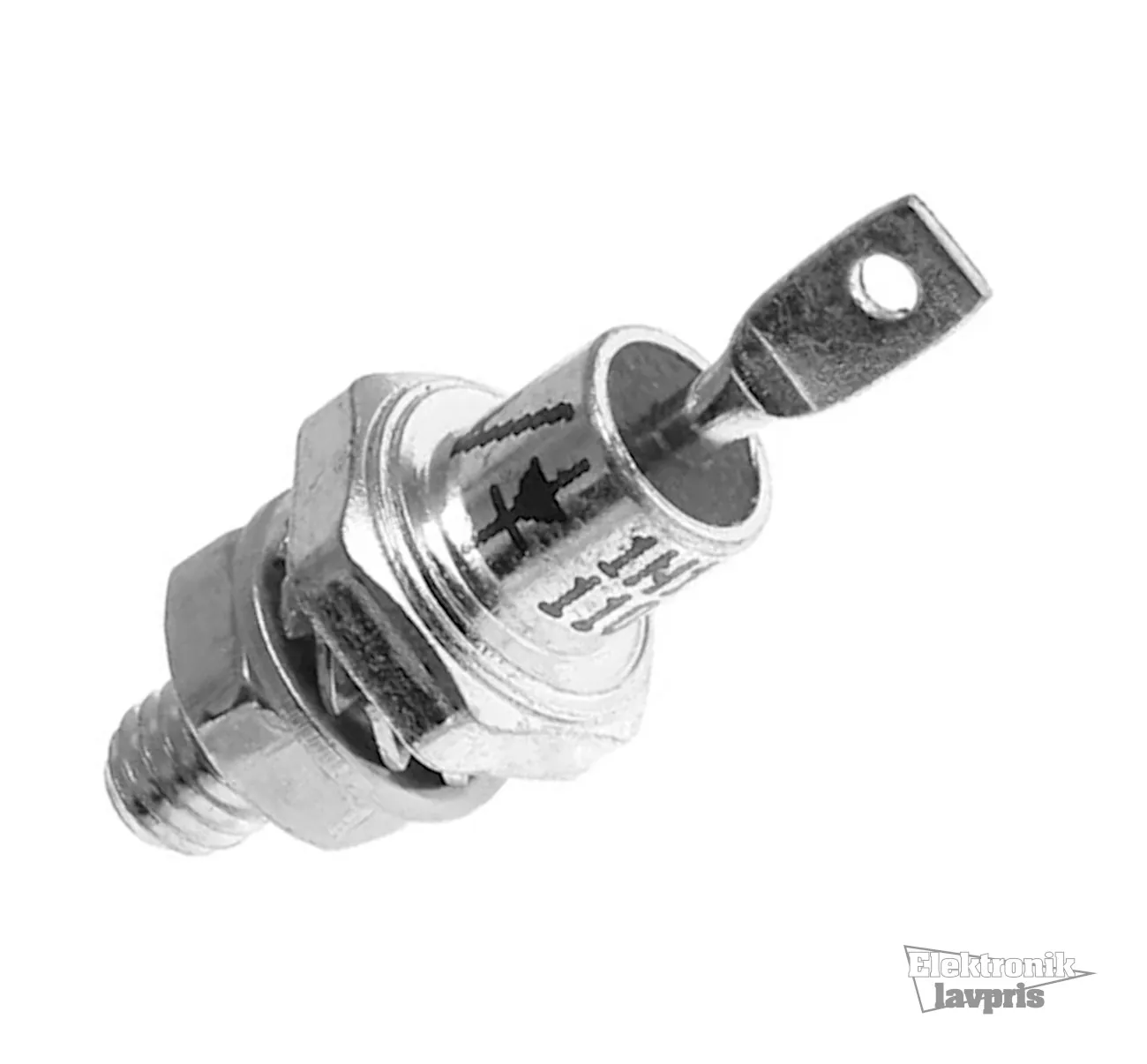

Avalanche Diode, 1200V, 110A, DO203AB
Varenummer:
107-228
Varekode: DSA75-12B
Vægt: 25 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Through Hole Avalanche Diode, 1200V
- DO-203AB (DO-5)
- Vr - Reverse Voltage: 1.2 kV
- If - Forward Current: 110 A
- Single Standard Recovery Rectifiers
- Vf - Forward Voltage:: 1.17 V
- Max Surge Current: 1.4 kA
- Ir - Reverse Current: 6 mA
- Operating Temperature: - 40 C / + 180 C
- Series: DSA75-12B
- Diameter: 17 mm
- Height: 38.3 mm
- Length: 27 mm
- Unit Weight: 17 g
Inkl. moms
Kr. 215,63
- v/10 – Kr. 194,06
- v/25 – Kr. 172,50
- v/100 – Kr. 150,94
