Avalanche Diode 200V 4A SOD64
Varenummer:
107-221
Varekode: BYV98-200
Vægt: 0 g
9 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 2876 stk. kan skaffes tirsdag d. 13/10
Gruppe:
V6235
VISHAY (VIS) Avalanche Diodes
Glass Passivated
Packing Style: Taped
Series: BYT_, BYV_, BYW_

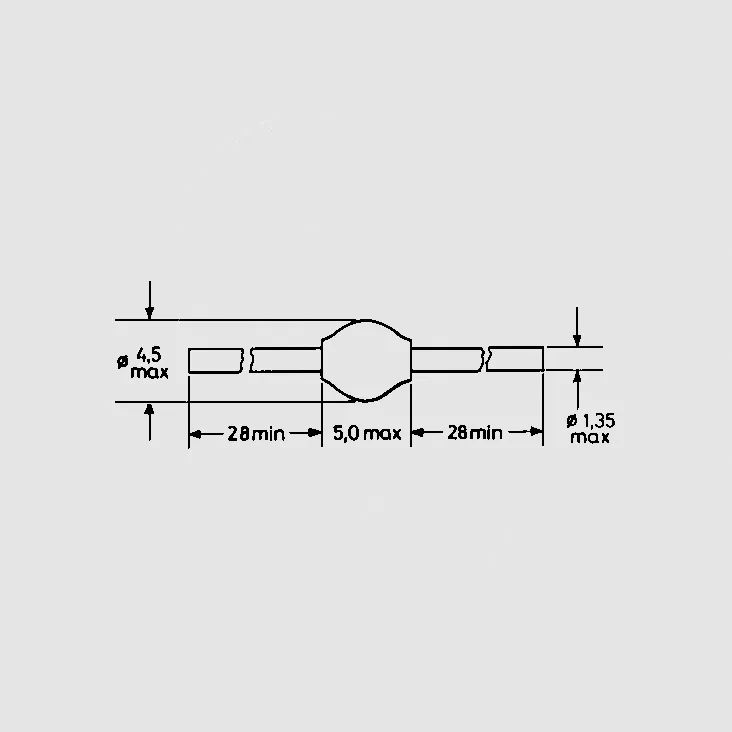

Case: SOD57, SOD64
VISHAY (VIS) Avalanche Diodes
Glass Passivated
Packing Style: Taped
Series: BYT_, BYV_, BYW_
Case: SOD57, SOD64
| Technical Specifications |
| Axial leads solderable per MIL-STD-750, Meth. 2026 |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [µA] | [C] | |
| BYT52G | 400 | 1,30 | 1,4 | 5,0 | -55...+175 |
| BYT52M | 1000 | 1,30 | 1,4 | 5,0 | -55...+175 |
| BYT56G | 400 | 1,40 | 3,0 | 5,0 | -55...+175 |
| BYT56M | 1000 | 1,40 | 3,0 | 5,0 | -55...+175 |
| BYV27-200 | 200 | 1,07 | 2,0 | 1,0 | -55...+175 |
| BYV27-600 | 600 | 1,35 | 2,0 | 5,0 | -55...+175 |
| BYV28-200 | 200 | 1,10 | 3,5 | 1,0 | -55...+175 |
| BYV28-600 | 600 | 1,35 | 3,5 | 5,0 | -55...+175 |
| BYV98-200 | 200 | 1,10 | 4,0 | 10 | -55...+175 |
| BYW56 | 1000 | 1,00 | 2,0 | 1,0 | -55...+175 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Vishay http://www.vishay.com |
|
