SMD LowUF Schottky 40V 3A SMC
Varenummer:
107-150
Varekode: SSL34
Vægt: 0 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 17/10
Gruppe:
V3875
TAIWAN SEMICONDUCTOR (TSC) SMD LowUF Schottky Diodes up to 3A
Series: SKL_, SSL_

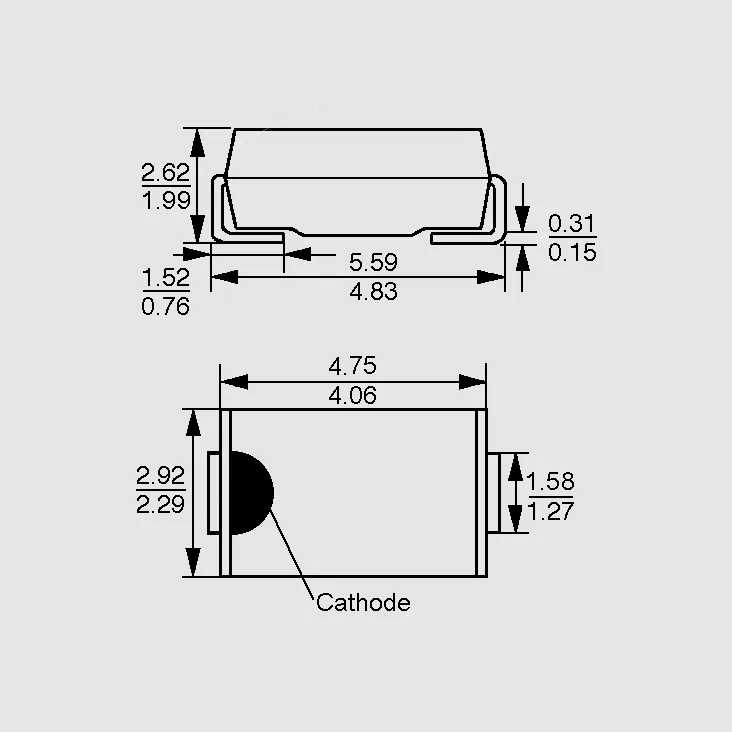

Case: DO214AC/SMA, DO214AA/SMB, DO214AB/SMC
TAIWAN SEMICONDUCTOR (TSC) SMD LowUF Schottky Diodes up to 3A
Series: SKL_, SSL_
Case: DO214AC/SMA, DO214AA/SMB, DO214AB/SMC
| Technical Specifications |
| Low UF (0,39V resp. 0,40V) The plastic conforms to UL94V-0 Max. solderability 260C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [A] | [mA] | [C] | |
| SKL13B | 30 | 0,39 | 1,0 | 1,0 | -55...+125 |
| SSL14 | 40 | 0,40 | 1,0 | 2,0 | -65...+125 |
| SSL34 | 40 | 0,40 | 3,0 | 5,0 | -55...+125 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |

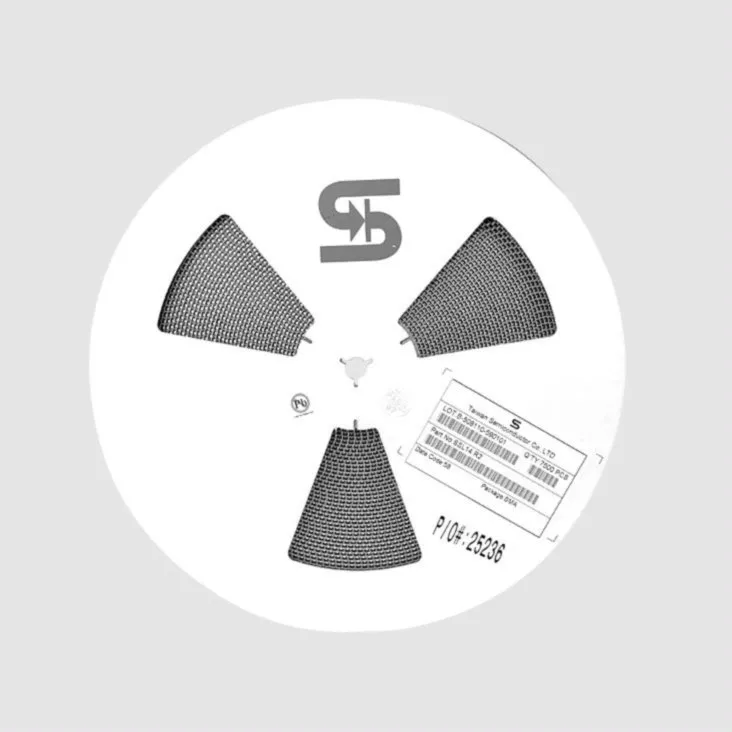

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 resp. 7500 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 resp. 7500 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Produktfiler
