Schottky 100V 10A(2x5) ITO220AB
Varenummer:
107-135
Varekode: MBRF10H100CT
Vægt: 2 g
6 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 950 stk. kan skaffes lørdag d. 17/10
Gruppe:
V3536
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 10A to 20A
Series: MBRF_CT

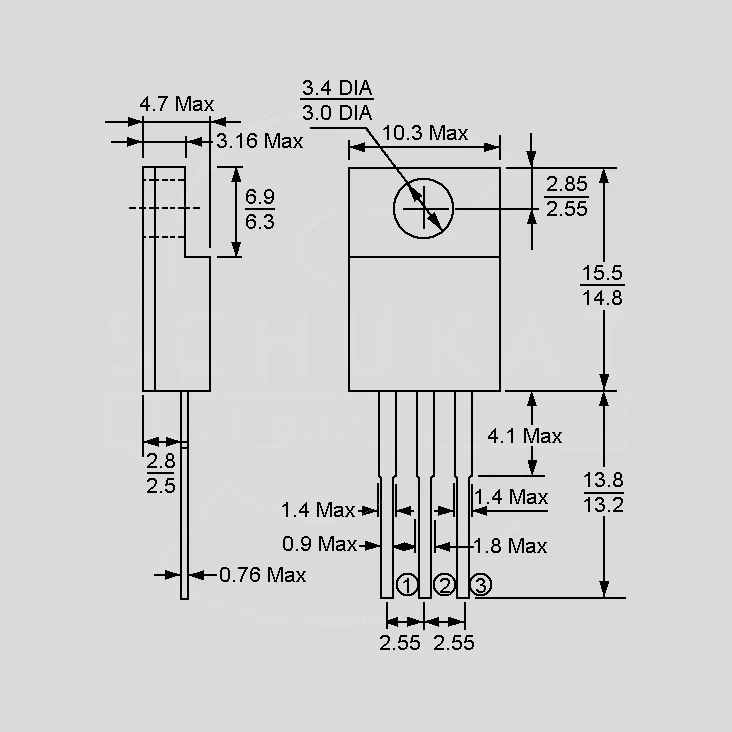

Case: ITO220AB
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 10A to 20A
Series: MBRF_CT
Case: ITO220AB
| Technical Specifications |
| The plastic conforms to UL94V-0 Leads solderable per MIL-STD-750, Meth. 2026 Max. solderability 260C/10s Min. isolation voltage 1500V Operating temperature range -65...+175C |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [A] | [µA] | [C] | |
| MBRF10H100CT | 100 | 0,95 | 5,0 | 5,0 | -65...+175 |
| MBRF20H100CT | 100 | 0,95 | 10 | 5,0 | -65...+175 |
| MBRF20H200CT | 200 | 0,97 | 10 | 5,0 | -65...+175 |
| per Diode: URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Produktfiler
