SMD Schottky 60V 3A SMC
Varenummer:
107-117
Varekode: SS36
Vægt: 0 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 17/10
Gruppe:
V3476
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes 3A
Series: SS3_

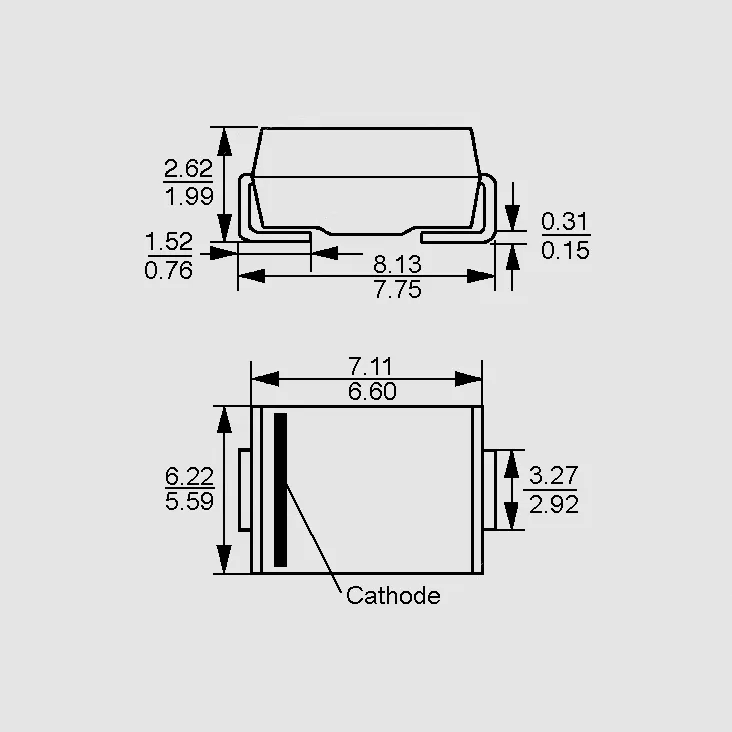

Case: DO214AB/SMC
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes 3A
Series: SS3_
Case: DO214AB/SMC
| Technical Specifications |
| The plastic conforms to UL94V-0 Max. solderability 260C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [A] | [mA] | [C] | |
| SS34 | 40 | 0,50 | 3,0 | 0,5 | -55...+125 |
| SS36 | 60 | 0,75 | 3,0 | 0,5 | -55...+150 |
| SS310 | 100 | 0,85 | 3,0 | 0,1 | -55...+150 |
| SS320 | 200 | 0,95 | 3,0 | 0,1 | -55...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
