SMD Schottky 150V 1A SMA
Varenummer:
107-111
Varekode: SS115
Vægt: 0 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 17/10
Gruppe:
V3472
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes 1A
Series: SS1_

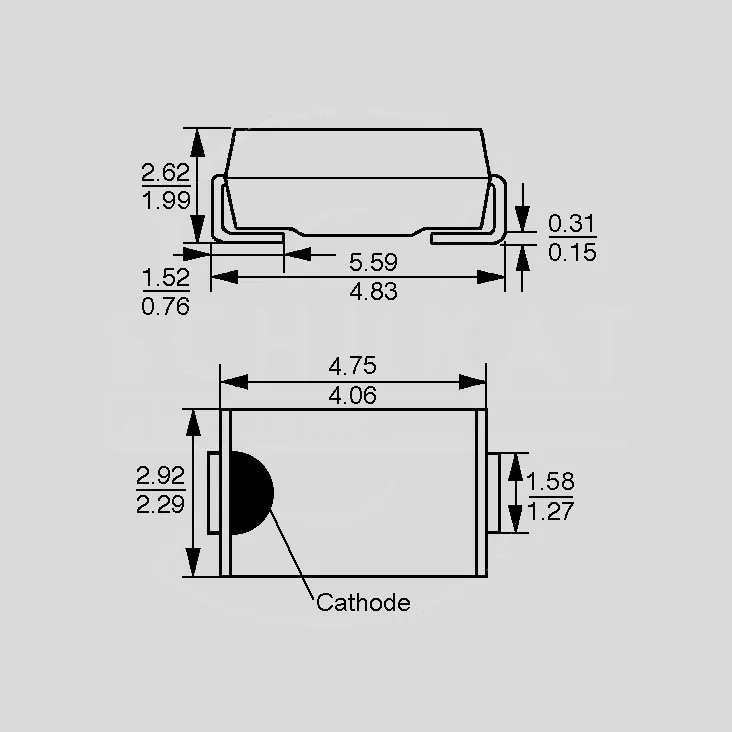

Case: DO214AC/SMA
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes 1A
Series: SS1_
Case: DO214AC/SMA
| Technical Specifications |
| The plastic conforms to UL94V-0 Max. solderability 260C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [A] | [mA] | [C] | |
| SS12 | 20 | 0,50 | 1,0 | 0,4 | -65...+125 |
| SS14 | 40 | 0,50 | 1,0 | 0,4 | -65...+125 |
| SS16 | 60 | 0,75 | 1,0 | 0,4 | -65...+150 |
| SS110 | 100 | 0,80 | 1,0 | 0,1 | -65...+150 |
| SS115 | 150 | 0,95 | 1,0 | 0,1 | -65...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |

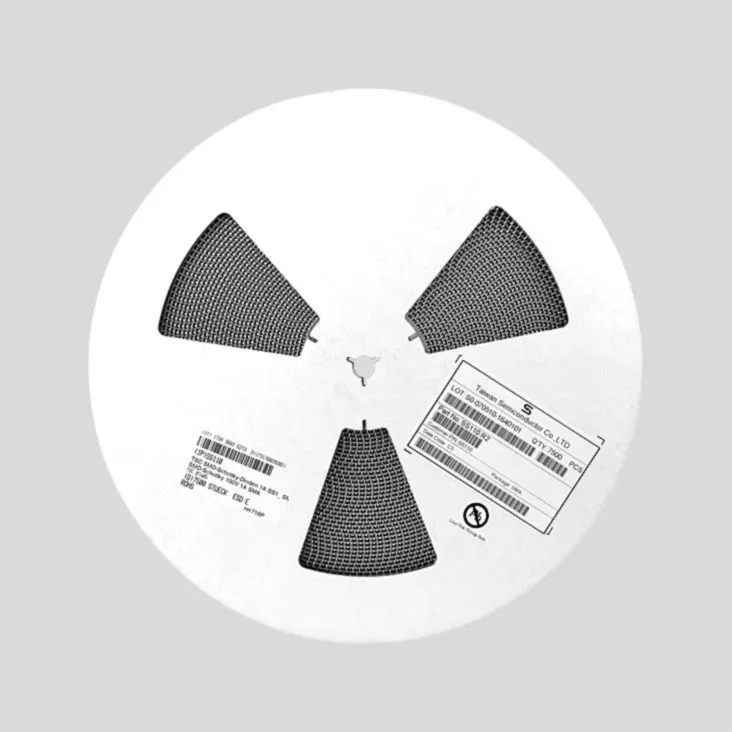

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 7500 pieces: 100 pieces on tape segment without leader tape and reel; orders of 7500 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
