SMD Schottky 20V 1A Sub-SMA

Name: SMD Schottky 20V 1A Sub-SMA
SKU: 107105
Price: 1.03 DKK
Availability: OutOfStock

Varenummer: 107-105

Varekode: SS12L

Vægt: 0 g

0 stk. på lager

Ved bestilling nu, får vi dem hjem lørdag d. 17/10

Vis lignende produkter i kategorien "Schottky dioder SMD"

Gruppe: V3471
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes 1A
Series: SS1_L

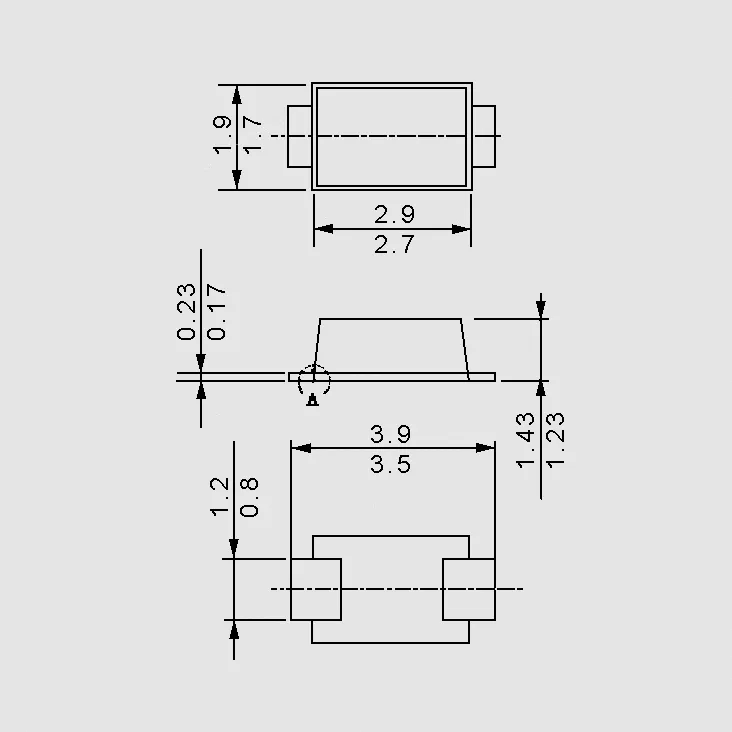

Case: DO219AB/Sub-SMA

Technical Specifications

Low-profile package
Max. solderability 260C/10s


Part Nr.	U_RRM	U_F	I_F(AV)	I_R	T_J
	[V]	[V]	[A]	[mA]	[C]
SS12L	20	0,45	1,0	0,4	-55...+125
SS13L	30	0,50	1,0	0,4	-55...+125
SS14L	40	0,55	1,0	0,4	-55...+125
U_RRM = Max. Peak Recurrent Reverse Voltage, U_F = Max. Forward Voltage, I_F(AV) = Max. Average Forward Current, I_R = Max. Reverse Current, T_J = Operating Temperature Range

Terms of Delivery

Minimum order quantity: please see price list column "MOQ".

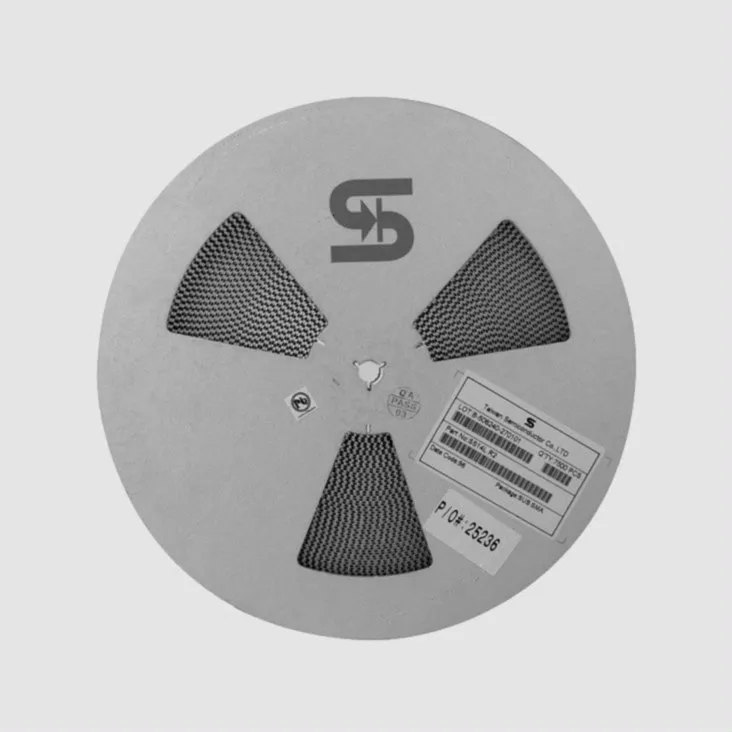

Form of delivery: orders of less than 7500 pieces: 100 pieces on tape segment without leader tape and reel; orders of 7500 pieces: delivery on reel if requested.

Manufacturer

http://www.taiwansemi.com
