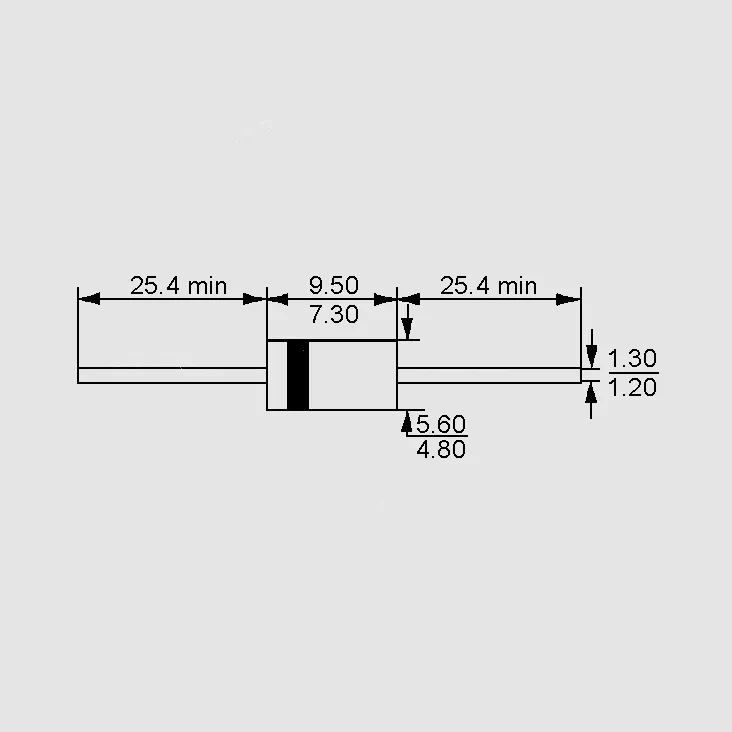

Schottky 100V 5A DO201AD
Varenummer:
107-104
Varekode: SR510
Vægt: 1 g
9 stk.
på lager
Bestil nu for afsendelse i morgen
Gruppe:
V3436
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 1A to 8A Taped
Series: SR_

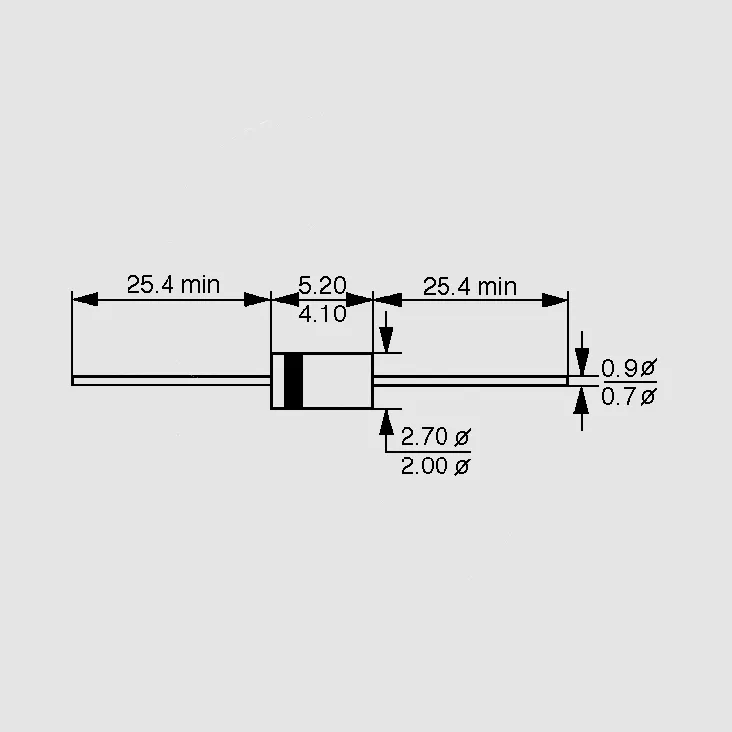

Case: DO41, DO201AD
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 1A to 8A Taped
Series: SR_
Case: DO41, DO201AD
| Technical Specifications |
| The plastic conforms to UL94V-0 Leads solderable per MIL-STD-202, Meth. 208 Max. solderability 260C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [A] | [mA] | [C] | |
| SR106 | 60 | 0,70 | 1,0 | 0,5 | -65...+150 |
| SR110 | 100 | 0,80 | 1,0 | 0,1 | -65...+150 |
| SR306 | 60 | 0,70 | 3,0 | 0,5 | -65...+150 |
| SR310 | 100 | 0,85 | 3,0 | 0,1 | -65...+150 |
| SR506 | 60 | 0,70 | 5,0 | 0,5 | -65...+150 |
| SR510 | 100 | 0,85 | 5,0 | 0,1 | -65...+150 |
| SR806 | 60 | 0,70 | 8,0 | 0,5 | -65...+150 |
| SR810 | 100 | 0,92 | 8,0 | 0,1 | -65...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
