Schottky 60V 5A DO201AD

Varenummer: 107-103
Varekode: SR506
Vægt: 1 g
68 stk. på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 750 stk. kan skaffes søndag d. 18/10
Vis lignende produkter i kategorien "Schottky dioder"
Gruppe: V3436
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 1A to 8A Taped
Series: SR_

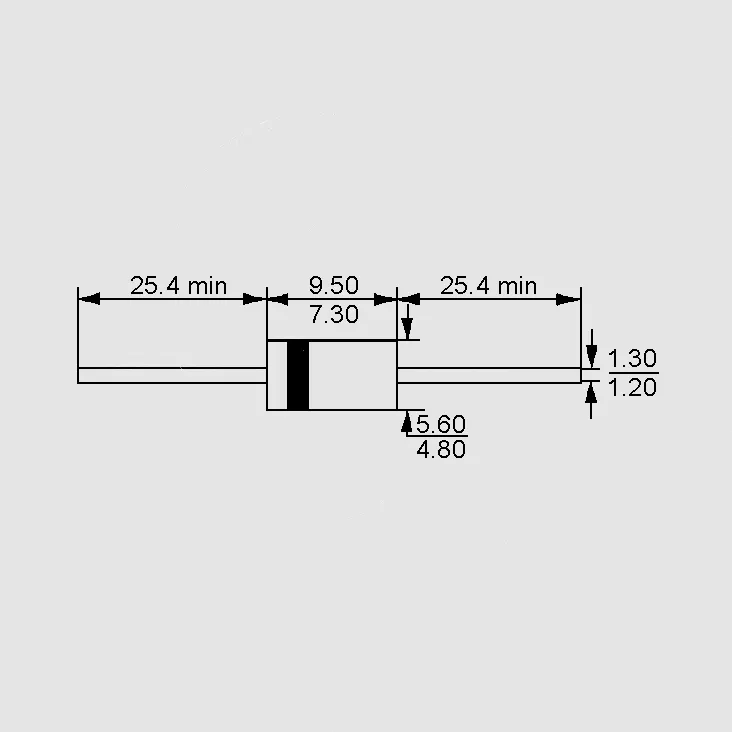

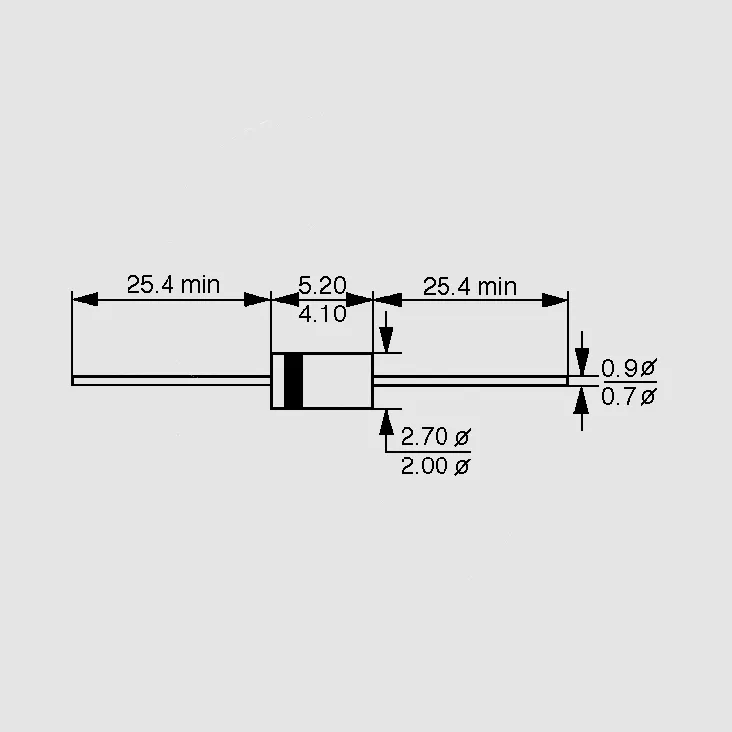

Case: DO41, DO201AD
Technical Specifications
The plastic conforms to UL94V-0
Leads solderable per MIL-STD-202, Meth. 208
Max. solderability 260C/10s

Part Nr.
URRM
UF
IF(AV)
IR
TJ
 [V]
[V]
[A]
[mA]
[C]
SR10660
0,70
1,0
0,5
-65...+150
SR110100
0,80
1,0
0,1
-65...+150
SR30660
0,70
3,0
0,5
-65...+150
SR310100
0,85
3,0
0,1
-65...+150
SR50660
0,70
5,0
0,5
-65...+150
SR510100
0,85
5,0
0,1
-65...+150
SR80660
0,70
8,0
0,5
-65...+150
SR810100
0,92
8,0
0,1
-65...+150
URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range
Terms of Delivery
Minimum order quantity: please see price list column "MOQ".
Manufacturer

http://www.taiwansemi.com
Inkl. moms
Kr. 10,08
  • v/10 – Kr. 8,06
  • v/25 – Kr. 7,05
  • v/100 – Kr. 5,04
  • v/1000 – Kr. 3,02
