Schottky Diode 60V 1A DO41
Varenummer:
107-099
Varekode: SR106
Vægt: 0 g
93 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 6052 stk. kan skaffes tirsdag d. 13/10
Gruppe: V3436
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 1A to 8A Taped
Series: SR_

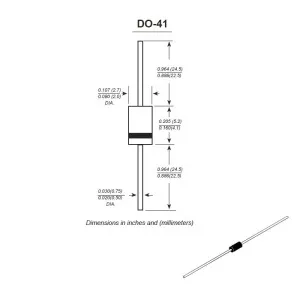

Case: DO41, DO201AD
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Leads solderable per MIL-STD-202, Meth. 208 • Max. solderability 260°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ | [V] | [V] | [A] | [mA] | [°C] | SR106 | 60 | 0,70 | 1,0 | 0,5 | -65...+150 | SR110 | 100 | 0,80 | 1,0 | 0,1 | -65...+150 | SR306 | 60 | 0,70 | 3,0 | 0,5 | -65...+150 | SR310 | 100 | 0,85 | 3,0 | 0,1 | -65...+150 | SR506 | 60 | 0,70 | 5,0 | 0,5 | -65...+150 | SR510 | 100 | 0,85 | 5,0 | 0,1 | -65...+150 | SR806 | 60 | 0,70 | 8,0 | 0,5 | -65...+150 | SR810 | 100 | 0,92 | 8,0 | 0,1 | -65...+150 | |||||||
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Produktfiler
Schottky Diode 60V 1A DO41
107-099
/ SR106
93 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem tirsdag d. 13/10
Gruppe: V3436
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 1A to 8A Taped
Series: SR_
Case: DO41, DO201AD
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Leads solderable per MIL-STD-202, Meth. 208 • Max. solderability 260°C/10s |
|
| Part Nr. | URRM | UF | IF(AV) | IR | TJ | [V] | [V] | [A] | [mA] | [°C] | SR106 | 60 | 0,70 | 1,0 | 0,5 | -65...+150 | SR110 | 100 | 0,80 | 1,0 | 0,1 | -65...+150 | SR306 | 60 | 0,70 | 3,0 | 0,5 | -65...+150 | SR310 | 100 | 0,85 | 3,0 | 0,1 | -65...+150 | SR506 | 60 | 0,70 | 5,0 | 0,5 | -65...+150 | SR510 | 100 | 0,85 | 5,0 | 0,1 | -65...+150 | SR806 | 60 | 0,70 | 8,0 | 0,5 | -65...+150 | SR810 | 100 | 0,92 | 8,0 | 0,1 | -65...+150 | |||||||
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| |
| http://www.taiwansemi.com |
|
