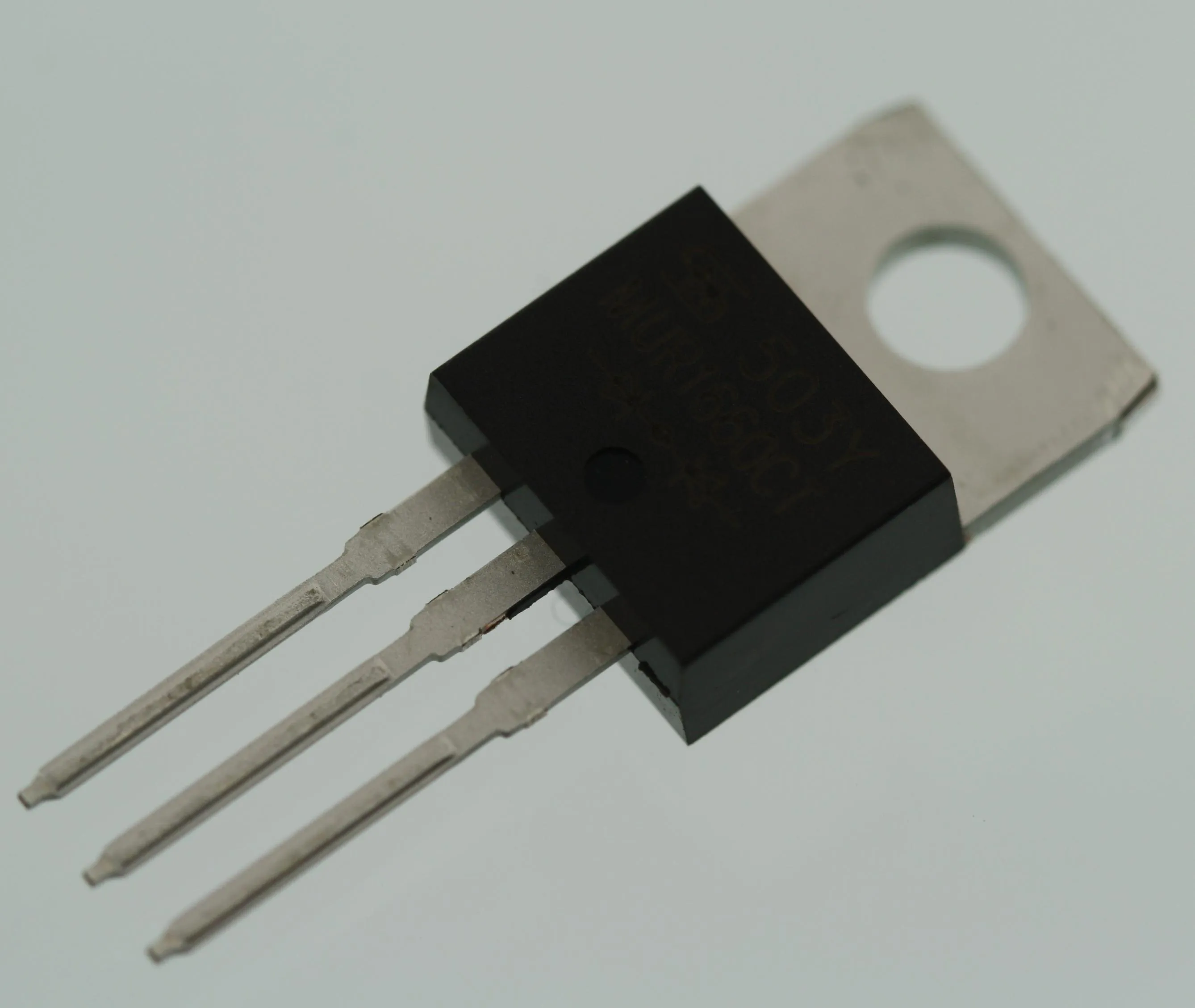

Super Fast Diode 600V 16A(2x8) TO220AB
Varenummer:
107-042
Varekode: MUR1660CT
Vægt: 2 g
26 stk.
på lager
Gruppe:
V2737
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 16A
Series: MUR16_CT
Case: TO220AB
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 16A
Series: MUR16_CT
Case: TO220AB
| Technical Specifications |
| The plastic conforms to UL94V-0 Max. solderability 260C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| MUR1620CT | 200 | 0,975 | 16,0 | 100 | 5,0 | 35 |
| MUR1640CT | 400 | 1,3 | 16,0 | 100 | 10 | 60 |
| MUR1660CT | 600 | 1,5 | 16,0 | 100 | 10 | 60 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Inkl. moms
Kr. 19,53
- v/10 – Kr. 13,95
- v/25 – Kr. 11,16
- v/100 – Kr. 8,37
- v/1000 – Kr. 5,58
