SMD Si-Rectifier Diode 400V 1A Sub-SMA
Varenummer:
107-001
Varekode: S1GL
Vægt: 0 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem tirsdag d. 10/11
Gruppe:
V1771
TAIWAN SEMICONDUCTOR (TSC) SMD Si-Rectifier Diodes 1A Glass Passivated
Series: S1_L
Case: DO219AB/Sub-SMA
TAIWAN SEMICONDUCTOR (TSC) SMD Si-Rectifier Diodes 1A Glass Passivated
Series: S1_L
Case: DO219AB/Sub-SMA
| Technical Specifications |
| Low-profile package Max. solderability 260C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [µA] | [C] | |
| S1DL | 200 | 1,1 | 1,0 | 5,0 | -55...+150 |
| S1GL | 400 | 1,1 | 1,0 | 5,0 | -55...+150 |
| S1ML | 1000 | 1,1 | 1,0 | 5,0 | -55...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |

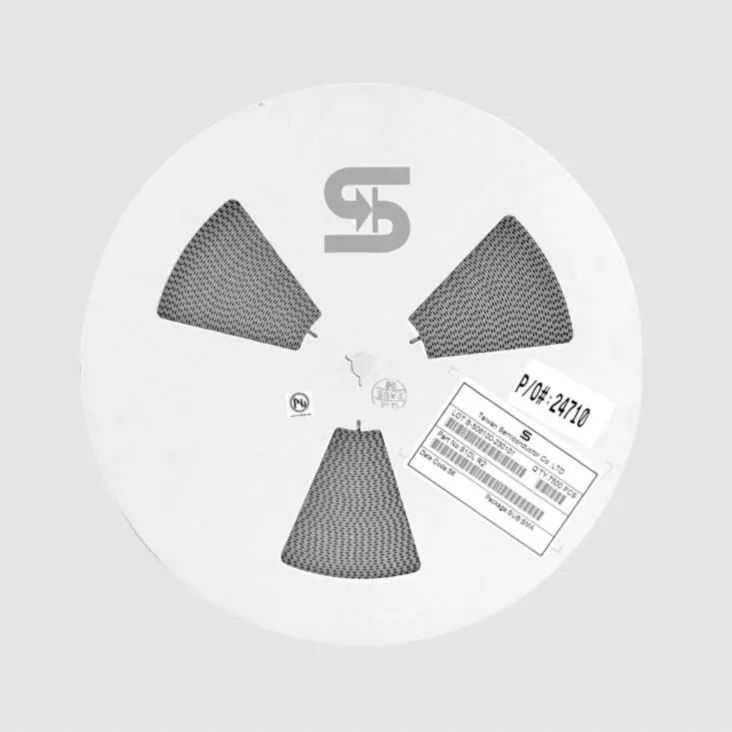

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 7500 pieces: 500 pieces on tape segment without leader tape and reel; orders of 7500 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Inkl. moms
v/500
Kr. 0,66
- v/1000 – Kr. 0,58
