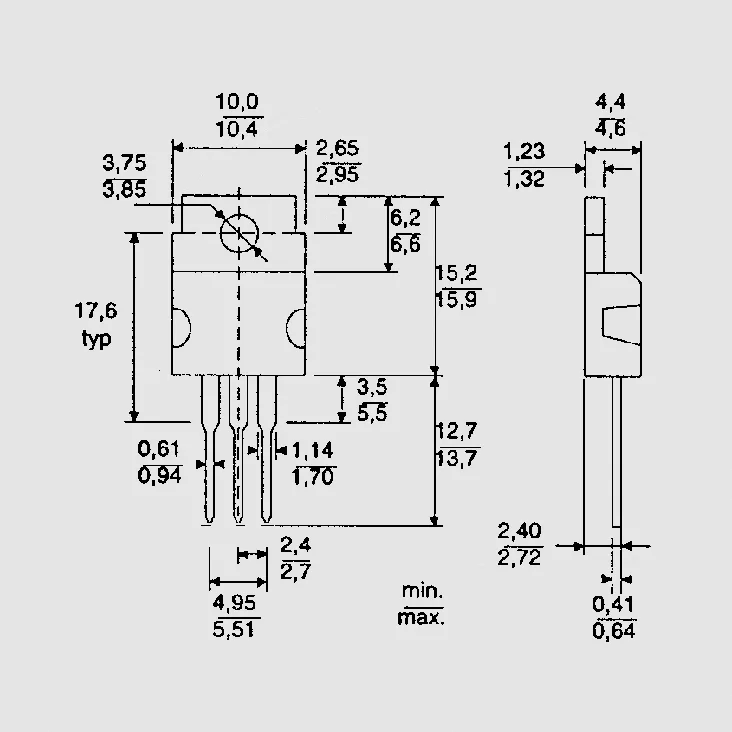

P-Ch 60V 80A 340W 0,023R TO220
Varenummer:
106-757
Varekode: SPP80P06P
Vægt: 3 g
1 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 2246 stk. kan skaffes søndag d. 1/11
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Transistor polaritet | P-Ch |
| Produkt | MOSFET |
| Continuous drain current, max | 80 A |
| Drain-Source spænding, max | 60 V |
| Effekt, max. | 340 W |
| Drain-Source On-modstand, Rds(on) | 0.023 Ω |
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| BUZ11 | 50 | 30 | 0,040 | 2,1 | 30 | 180 |
| SPA08N80C3 | 800 | 8,0 | 0,650 | 2,1 | 25 | 65 |
| SPP06N80C3 | 800 | 6,0 | 0,900 | 2,1 | 25 | 72 |
| SPP08P06P | 60 | 8,8 | 0,300 | 2,1 | 16 | 48 |
| SPP20N60S5 | 600 | 20 | 0,190 | 3,5 | 120 | 140 |
| SPP80P06P | 60 | 80 | 0,023 | 2,1 | 24 | 56 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
| Fairchild / Infineon http://www.fairchildsemi.com http://www.infineon.com.com |
|
