N-Ch 200V 3,3A 36W 1,5R TO220AB

Varenummer: 106-752
Varekode: IRF610PBF
Vægt: 2 g
17 stk. på lager
Bestil nu for afsendelse i morgen
Yderligere 3725 stk. kan skaffes lørdag d. 31/10
Vis lignende produkter i kategorien "MOSFET"
Specifikationer
Komponenthus TO220
Transistor polaritet N-Ch
Produkt MOSFET
Effekt, max. 36  W
Continuous drain current, max 3.3  A
Drain-Source spænding, max 200  V
Drain-Source On-modstand, Rds(on) 1.5  Ω
Gruppe: U8383
VISHAY (VIS) Power MOSFETs
Series: IRF_, IRL_

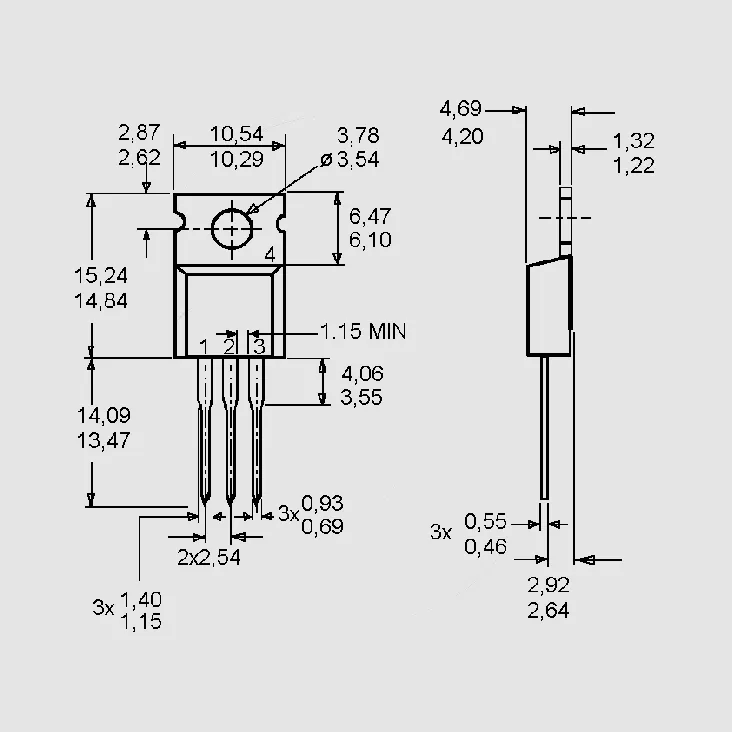

Case: TO220AB
Technical Specifications
Part Nr.
UDS
ID25
RDS(on)
UGS(th)
td(on)
td(off)
 [V]
[A]
W
[V]
[ns]
[ns]
IRF510PBF100
5,6
0,540
2,0
6,9
15
IRF520PBF100
9,2
0,270
2,0
8,8
19
IRF530PBF100
14
0,160
2,0
10
23
IRF540PBF100
28
0,077
2,0
11
53
IRF610PBF200
3,3
1,500
2,0
8,2
14
IRF620PBF200
5,2
0,800
2,0
7,2
19
IRF630PBF200
9,0
0,400
2,0
9,4
39
IRF634PBF250
8,1
0,450
2,0
9,6
42
IRF640PBF200
18
0,180
2,0
14
45
IRF710PBF400
2,0
3,600
2,0
8
21
IRF720PBF400
3,3
1,800
2,0
10
30
IRF730PBF400
5,5
1,000
2,0
10
38
IRF740PBF400
10
0,550
2,0
14
50
IRF820PBF500
2,5
3,000
2,0
8
33
IRF830PBF500
4,5
1,500
2,0
8,2
42
IRF830APBF500
5,0
1,400
2,0
10
21
IRF840PBF500
8,0
0,850
2,0
14
49
IRF840APBF500
8,0
0,850
2,0
11
26
IRF9510PBF100
4,0
1,200
2,0
10
15
IRF9520PBF100
6,8
0,600
2,0
9,6
21
IRF9530PBF100
12
0,300
2,0
12
31
IRF9540PBF100
19
0,200
2,0
16
34
IRF9610PBF200
1,8
3,000
2,0
8
10
IRF9620PBF200
3,5
1,500
2,0
15
20
IRF9630PBF200
6,5
0,800
2,0
12
28
IRF9640PBF200
11
0,500
2,0
14
39
IRFB9N65APBF650
8,5
0,930
2,0
14
34
IRFB11N50APBF500
11
0,520
2,0
14
32
IRFB17N50LPBF500
16
0,320
3,0
21
50
IRFBC30PBF600
3,6
2,200
2,0
11
35
IRFBC40PBF600
6,2
1,200
2,0
13
55
IRFBE20PBF800
1,8
6,500
2,0
8,2
58
IRFBE30PBF800
4,1
3,000
2,0
12
82
IRFBF30PBF900
3,6
3,700
2,0
14
90
IRFBG20PBF1000
1,4
11,000
2,0
9,4
58
IRFBG30PBF1000
3,1
5,000
2,0
12
89
IRL640PBF200
17
0,180
1,0
8
44
IRLZ14PBF60
10
0,200
1,0
9,3
17
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Note
You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211.
Terms of Delivery
Minimum order quantity: please see price list column "MOQ".
Manufacturer
Vishay
http://www.vishay.com
Inkl. moms
Kr. 14,88
  • v/10 – Kr. 11,19
  • v/25 – Kr. 7,86
  • v/100 – Kr. 5,79
