N-Ch+Z-Dio 600V 7A 125W 0,95R TO220

Varenummer: 106-744
Varekode: STP9NK60Z
Vægt: 3 g
8 stk. på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 2250 stk. kan skaffes søndag d. 11/10
Vis lignende produkter i kategorien "MOSFET"
Gruppe: U8372
ST MICROELECTRONICS (STM) Power MOSFETs
Series: STP_

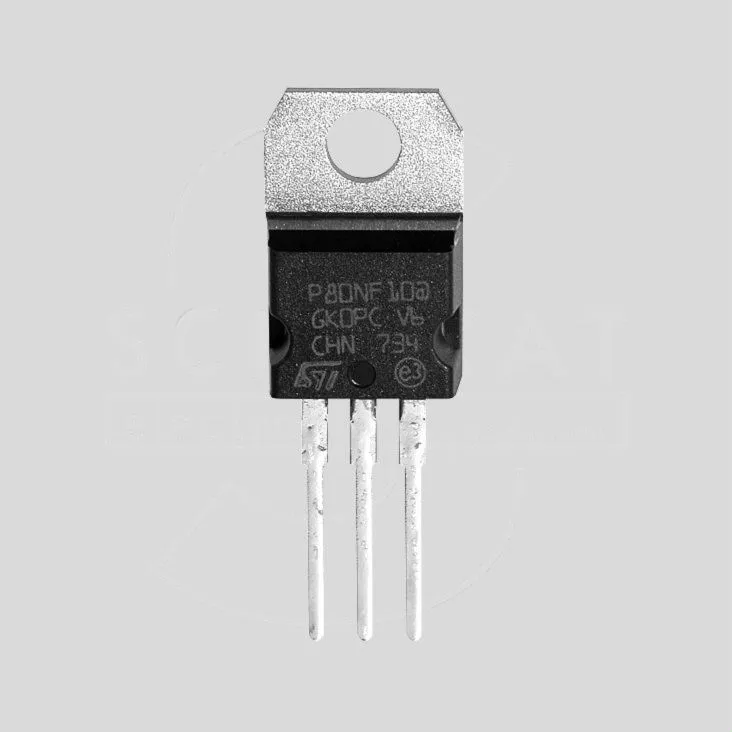

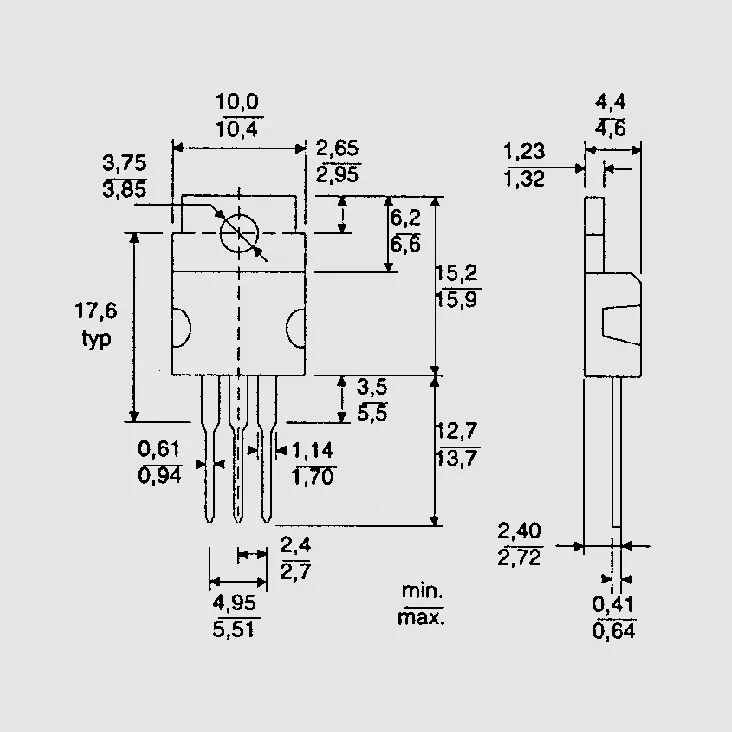

Case: TO220
Technical Specifications
Part Nr.
UDS
ID25
RDS(on)
UGS(th)
td(on)
td(off)
 [V]
[A]
W
[V]
[ns]
[ns]
STP3NK80Z800
2,5
4,500
3,0
17
36
STP3NK90Z900
3,0
4,800
3,0
18
45
STP4NK60Z600
4,0
2,000
3,0
12
29
STP5NK50Z500
4,4
1,500
3,0
15
32
STP5NK80Z800
4,3
2,400
3,0
18
45
STP5NK100Z1000
3,5
3,700
3,0
22,5
51,5
STP6NK60Z600
6,0
1,200
3,0
14
47
STP6NK90Z900
5,8
2,000
3,0
17
20
STP7NK40Z400
5,4
1,000
3,0
15
30
STP7NK80Z800
5,2
1,800
3,0
20
45
STP9NK50Z500
7,2
0,850
3,0
17
45
STP9NK60Z600
7,0
0,950
3,0
19
43
STP10NK60Z600
10
0,750
3,0
20
55
STP11NK40Z400
9,0
0,550
3,0
20
40
STP11NK50Z500
10
0,520
3,0
14,5
41
STP16NF0660
16
0,100
2,0
7
17
STP16N65M5650
12
0,299
3,0
25
30
STP20NF06L60
20
0,070
2,0
12
20
STP30NF10100
35
0,045
2,0
15
45
STP36NF0660
30
0,040
2,0
10
27
STP36NF06L60
30
0,040
1,0
10
19
STP40NF10L100
40
0,033
1,0
25
64
STP42N65M5650
33
0,079
3,0
61
65
STP60NF10100
80
0,023
2,0
17
82
STP80NF10100
80
0,015
2,0
26
116
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Note
You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211.
Terms of Delivery
Minimum order quantity: please see price list column "MOQ".
Manufacturer
STM
http://www.st.com
Inkl. moms
Kr. 25,60
  • v/10 – Kr. 14,62
  • v/25 – Kr. 10,97
  • v/100 – Kr. 7,31
