N-Ch 300V 140A 1040W 0,024R TO264AA
Varenummer:
106-739
Varekode: IXFK140N30P
Vægt: 12 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem søndag d. 1/11
Specifikationer
| Komponenthus | TO264 |
|---|---|
| Transistor polaritet | N-Ch |
| Produkt | MOSFET |
| Drain-Source spænding, max | 300 V |
| Continuous drain current, max | 140 A |
| Effekt, max. | 1 040 W |
| Drain-Source On-modstand, Rds(on) | 0.024 Ω |
Gruppe:
U8344

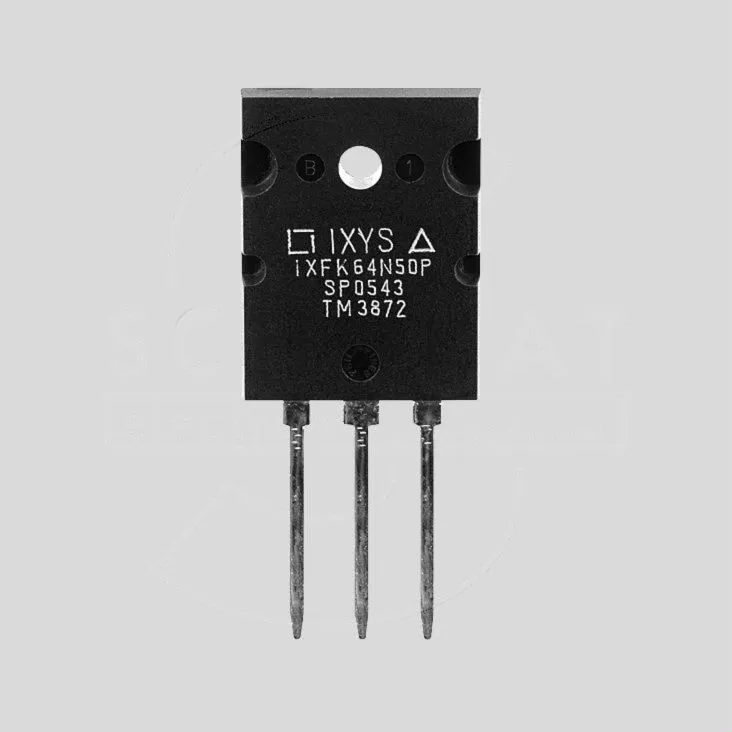

IXYS Power MOSFETs
Series: IXFK_

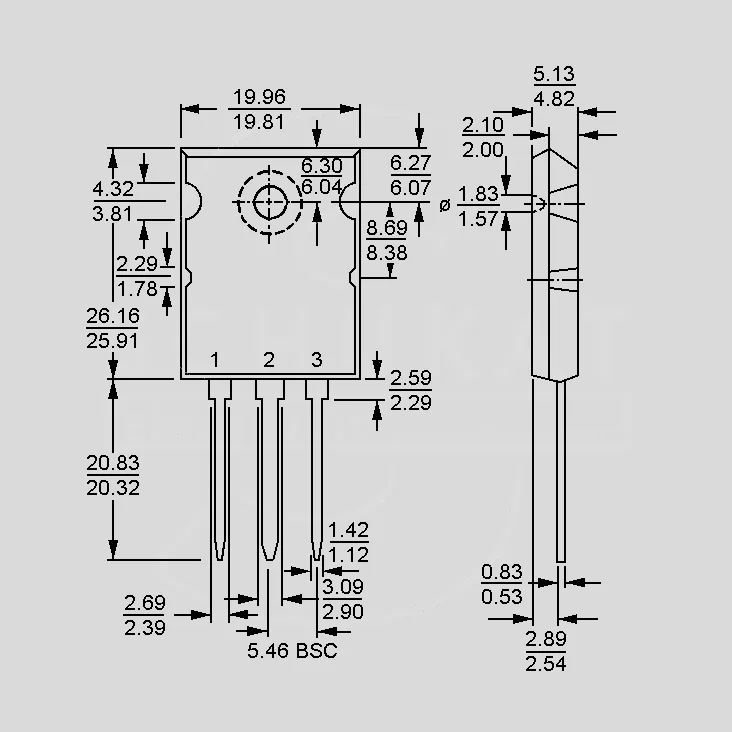

Case: TO264AA
IXYS Power MOSFETs
Series: IXFK_
Case: TO264AA
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IXFK24N100 | 1000 | 24 | 0,390 | 3,0 | 35 | 75 |
| IXFK44N80P | 800 | 44 | 0,190 | 3,0 | 28 | 75 |
| IXFK48N60P | 600 | 48 | 0,135 | 3,0 | 30 | 85 |
| IXFK64N50P | 500 | 64 | 0,085 | 3,0 | 30 | 85 |
| IXFK64N60P | 600 | 64 | 0,096 | 3,0 | 28 | 79 |
| IXFK140N30P | 300 | 140 | 0,024 | 3,0 | 30 | 100 |
| IXFK180N10 | 100 | 180 | 0,008 | 2,0 | 50 | 140 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
