N-Ch 1000V 24A 560W 0,39R TO264AA
Varenummer:
106-734
Varekode: IXFK24N100
Vægt: 13 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Komponenthus | TO264 |
|---|---|
| Transistor polaritet | N-Ch |
| Produkt | MOSFET |
| Effekt, max. | 560 W |
| Continuous drain current, max | 24 A |
| Drain-Source spænding, max | 1 000 V |
| Drain-Source On-modstand, Rds(on) | 0.39 Ω |
Gruppe:
U8344

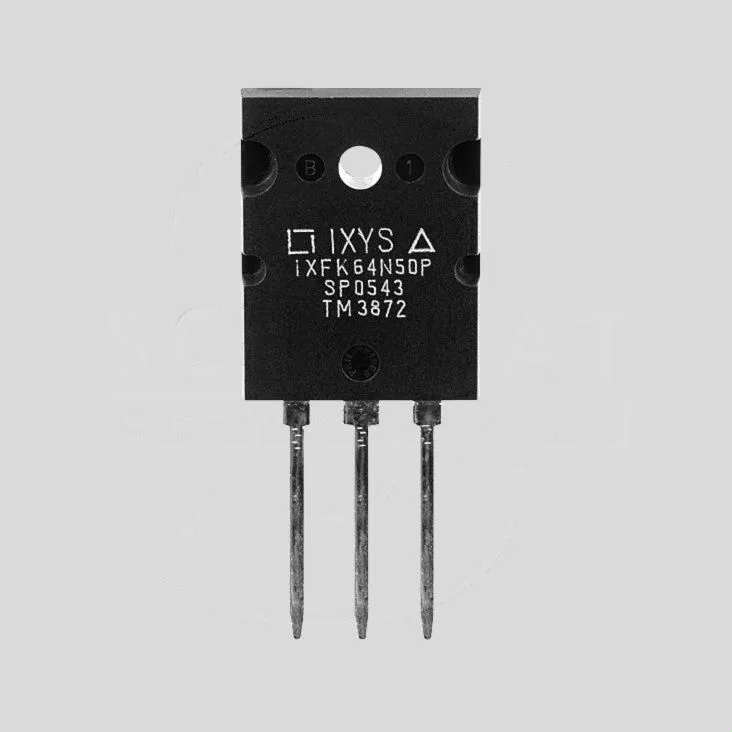

IXYS Power MOSFETs
Series: IXFK_

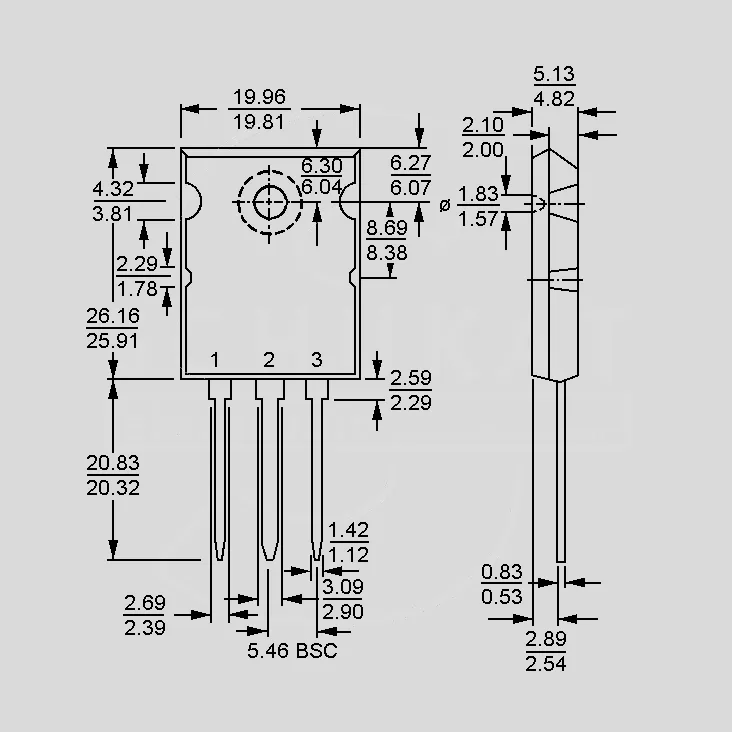

Case: TO264AA
IXYS Power MOSFETs
Series: IXFK_
Case: TO264AA
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IXFK24N100 | 1000 | 24 | 0,390 | 3,0 | 35 | 75 |
| IXFK44N80P | 800 | 44 | 0,190 | 3,0 | 28 | 75 |
| IXFK48N60P | 600 | 48 | 0,135 | 3,0 | 30 | 85 |
| IXFK64N50P | 500 | 64 | 0,085 | 3,0 | 30 | 85 |
| IXFK64N60P | 600 | 64 | 0,096 | 3,0 | 28 | 79 |
| IXFK140N30P | 300 | 140 | 0,024 | 3,0 | 30 | 100 |
| IXFK180N10 | 100 | 180 | 0,008 | 2,0 | 50 | 140 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
