N-Ch 500V 48A 400W 0,090R TO247-Isoplus
Varenummer:
106-730
Varekode: IXFR55N50
Vægt: 7 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Komponenthus | TO247-Isoplus |
|---|---|
| Transistor polaritet | N-Ch |
| Produkt | MOSFET |
| Drain-Source spænding, max | 500 V |
| Continuous drain current, max | 48 A |
| Effekt, max. | 400 W |
| Drain-Source On-modstand, Rds(on) | 0.09 Ω |
Gruppe:
U8343
IXYS Power MOSFETs
Series: IXFR_

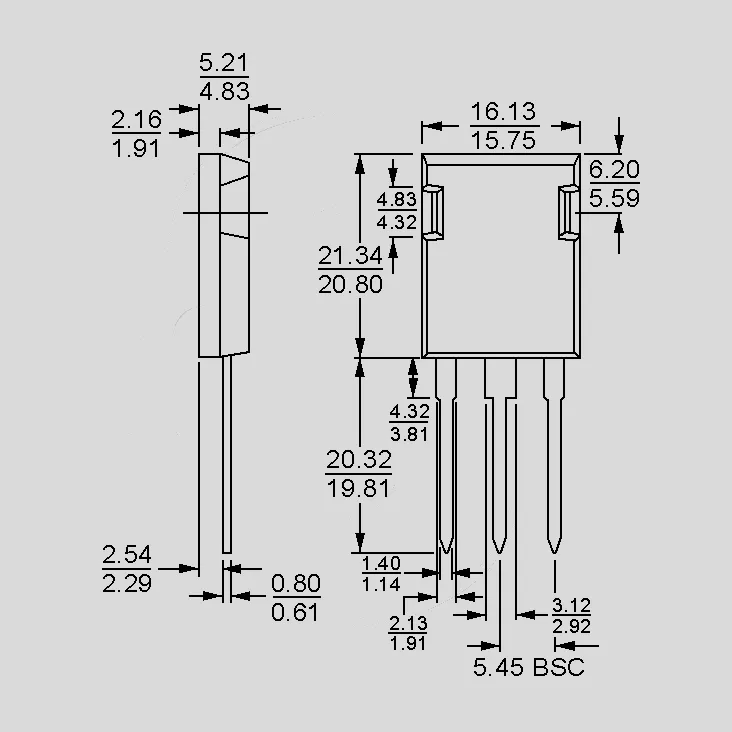

Case: TO247-Isoplus
IXYS Power MOSFETs
Series: IXFR_
Case: TO247-Isoplus
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IXFR55N50 | 500 | 48 | 0,090 | 2,5 | 45 | 120 |
| IXFR90N30 | 300 | 75 | 0,033 | 2,0 | 42 | 100 |
| IXFR180N10 | 100 | 165 | 0,008 | 2,0 | 50 | 140 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
