N-Ch 200V 94A 580W 0,023R TO247AC

Varenummer: 106-728
Varekode: IRFP90N20DPBF
Vægt: 7 g
3 stk. på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 105 stk. kan skaffes søndag d. 1/11
Vis lignende produkter i kategorien "MOSFET"
Specifikationer
Komponenthus TO247
Transistor polaritet N-Ch
Produkt MOSFET
Continuous drain current, max 94  A
Effekt, max. 580  W
Drain-Source spænding, max 200  V
Drain-Source On-modstand, Rds(on) 0.023  Ω
Gruppe: U8327
INTERNATIONAL RECTIFIER (IR) Power MOSFETs
Series: IRFP_

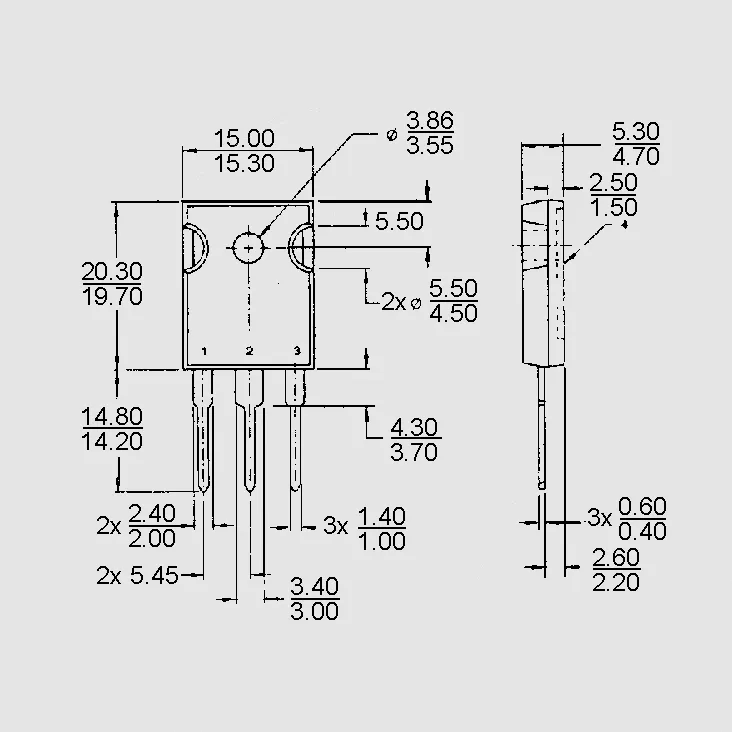

Case: TO247AC
Technical Specifications
Part Nr.
UDS
ID25
RDS(on)
UGS(th)
td(on)
td(off)
 [V]
[A]
W
[V]
[ns]
[ns]
IRFP044NPBF55
53
0,020
2,0
12
43
IRFP054NPBF55
81
0,012
2,0
11
40
IRFP064NPBF55
110
0,008
2,0
14
43
IRFP140NPBF100
33
0,052
2,0
8,2
44
IRFP150NPBF100
42
0,036
2,0
11
45
IRFP250NPBF200
30
0,075
2,0
14
41
IRFP260NPBF200
50
0,040
2,0
17
55
IRFP2907PBF75
209
0,0045
2,0
23
130
IRFP2907ZPBF75
90
0,0045
2,0
19
97
IRFP3077PBF75
120
0,0033
2,0
25
69
IRFP3206PBF60
120
0,003
2,0
19
55
IRFP3306PBF60
120
0,0042
2,0
15
40
IRFP3710PBF100
57
0,025
2,0
14
58
IRFP4004PBF40
195
0,0017
2,0
59
160
IRFP4110PBF100
120
0,0045
2,0
25
78
IRFP4227PBF200
65
0,025
3,0
33
21
IRFP4229PBF250
44
0,046
3,0
25
44
IRFP4310ZPBF100
120
0,006
2,0
20
55
IRFP4321PBF150
78
0,0155
3,0
18
25
IRFP4332PBF250
57
0,033
3,0
-
-
IRFP4368PBF75
195
0,00185
2,0
43
170
IRFP4410ZPBF100
97
0,009
2,0
16
43
IRFP4468PBF100
195
0,0026
2,0
52
160
IRFP4568PBF150
171
0,0059
3,0
27
47
IRFP4668PBF200
130
0,0097
3,0
41
64
IRFP90N20DPBF200
94
0,023
3,0
23
43
IRFP9140NPBF100
23
0,117
2,0
15
51
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Note
You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211.
Terms of Delivery
Minimum order quantity: Please see price list column "MOQ".
Manufacturer

http://www.irf.com
Inkl. moms
Kr. 94,83
  • v/10 – Kr. 56,90
  • v/25 – Kr. 47,41
  • v/100 – Kr. 37,93
Produktfiler
