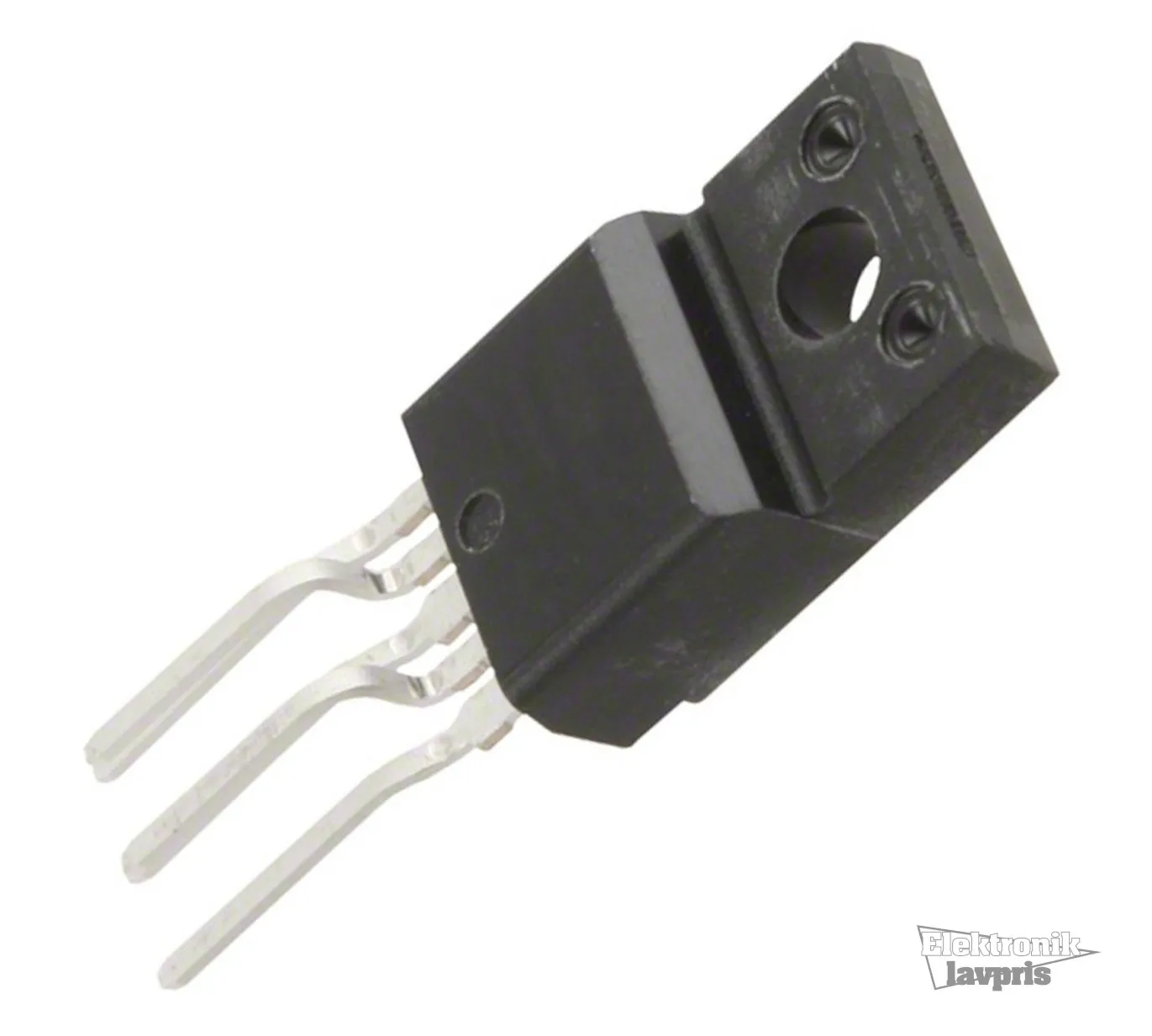

2xN-Ch 100V 11A 18W 0,0725R TO220-5-Full
Varenummer:
106-716
Varekode: IRFI4212H-117PBF
Vægt: 3 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Komponenthus | TO220-5 |
|---|---|
| Produkt | MOSFET |
| Transistor polaritet | 2xN-Ch |
| Effekt, max. | 18 W |
| Continuous drain current, max | 11 A |
| Drain-Source spænding, max | 100 V |
| Drain-Source On-modstand, Rds(on) | 0.0725 Ω |
Gruppe:
U8326
INTERNATIONAL RECTIFIER (IR) Power MOSFETs
Series: IRFI_
Case: TO220-5-Fullpak
INTERNATIONAL RECTIFIER (IR) Power MOSFETs
Series: IRFI_
Case: TO220-5-Fullpak
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IRFI4019H-117PBF | 150 | 8,7 | 0,095 | 3,0 | 7 | 13 |
| IRFI4020H-117PBF | 200 | 9,1 | 0,100 | 3,0 | 8,4 | 18 |
| IRFI4024H-117PBF | 55 | 11 | 0,060 | 2,0 | 5,9 | 13 |
| IRFI4212H-117PBF | 100 | 11 | 0,0725 | 3,0 | 4,7 | 9,5 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.irf.com |
|
Inkl. moms
Kr. 22,36
- v/10 – Kr. 14,67
- v/25 – Kr. 13,68
- v/100 – Kr. 8,94
