Transistor MOSFET, N-Ch, 75V, 80A, 140W, 0,009R, TO220AB

Varenummer: 106-690
Varekode: IRFB3607PBF
Vægt: 2 g
40 stk. på lager
Vis lignende produkter i kategorien "MOSFET"
Specifikationer
Komponenthus TO220
Transistor polaritet N-Ch
Produkt MOSFET
Continuous drain current, max 80  A
Drain-Source spænding, max 75  V
Effekt, max. 140  W
Drain-Source On-modstand, Rds(on) 0.009  Ω

Gruppe: U8324
INTERNATIONAL RECTIFIER (IR) Power MOSFETs
Series: IRF_, IRL_

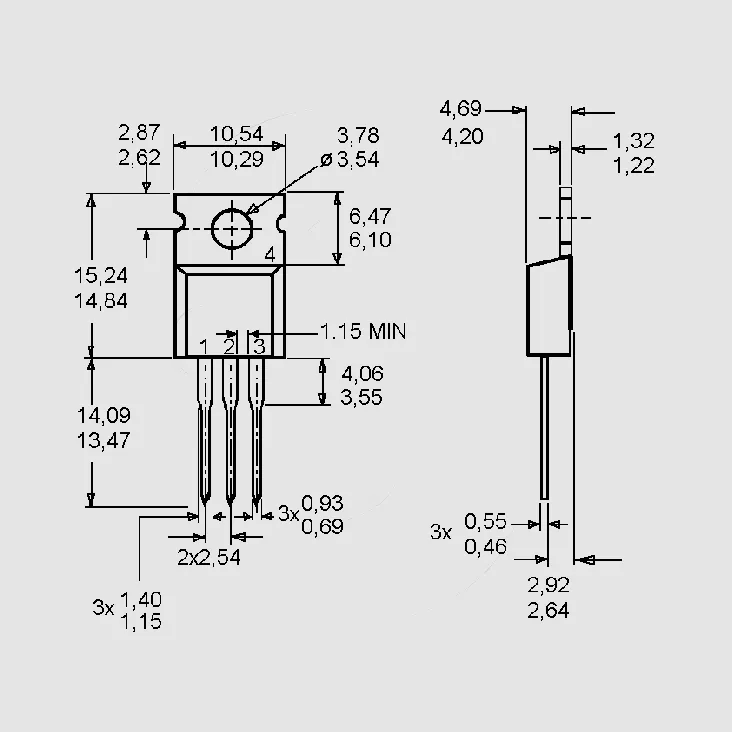

Case: TO220AB

Technical Specifications
              Part Nr. UDS ID25 RDS(on) UGS(th) td(on) td(off)   [V] [A] W [V] [ns] [ns] IRF520NPBF 100 9,7 0,200 2,0 4,5 32 IRF530NPBF 100 17 0,090 2,0 9,2 35 IRF540NPBF 100 33 0,044 2,0 11 39 IRF540ZPBF 100 36 0,0265 2,0 15 43 IRF630NPBF 200 9,3 0,300 2,0 7,9 27 IRF640NPBF 200 18 0,150 2,0 10 23 IRF9Z34NPBF 55 19 0,100 2,0 13 30 IRF1010NPBF 55 85 0,011 2,0 13 39 IRF1010ZPBF 55 75 0,0075 2,0 18 36 IRF1018EPBF 60 79 0,0084 2,0 13 55 IRF1310NPBF 100 42 0,036 2,0 11 45 IRF1404PBF 40 202 0,004 2,0 17 46 IRF1404ZPBF 40 75 0,0037 2,0 18 36 IRF1405PBF 55 169 0,0053 2,0 13 130 IRF2804PBF 40 75 0,002 2,0 13 130 IRF2807PBF 75 82 0,013 2,0 13 49 IRF2903ZPBF 30 75 0,0024 2,0 24 48 IRF3205PBF 55 110 0,008 2,0 14 50 IRF3205ZPBF 55 75 0,0065 2,0 18 45 IRF3415PBF 150 43 0,042 2,0 12 71 IRF3703PBF 30 210 0,0028 2,0 18 53 IRF3704ZPBF 20 67 0,0079 1,65 8,9 11 IRF3708PBF 30 62 0,012 0,6 7,2 17,6 IRF3709ZPBF 30 87 0,0063 1,35 13 16 IRF3710PBF 100 57 0,023 2,0 12 45 IRF3710ZPBF 100 59 0,018 2,0 17 41 IRF3711ZPBF 20 92 0,006 1,55 12 15 IRF3808PBF 75 140 0,007 2,0 16 68
              Part Nr. UDS ID25 RDS(on) UGS(th) td(on) td(off)   [V] [A] W [V] [ns] [ns] IRF4104PBF 40 75 0,0055 2,0 16 38 IRF4905PBF 55 74 0,020 2,0 18 61 IRF5210PBF 100 40 0,060 2,0 17 79 IRF5305PBF 55 31 0,060 2,0 14 39 IRF9520NPBF 100 6,8 0,480 2,0 14 28 IRF9530NPBF 100 14 0,200 2,0 15 45 IRF9540NPBF 100 23 0,117 2,0 15 51 IRFB260NPBF 200 56 0,040 2,0 17 52 IRFB3006PBF 60 195 0,0025 2,0 16 118 IRFB3077PBF 75 210 0,0033 2,0 25 69 IRFB31N20DPBF 200 31 0,082 3,0 16 26 IRFB3206PBF 60 75 0,003 2,0 19 55 IRFB3207ZPBF 75 75 0,0041 2,0 20 55 IRF3306BPBF 60 75 0,0042 2,0 15 40 IRFB3307ZPBF 75 75 0,0058 2,0 15 38 IRFB3607PBF 75 80 0,009 2,0 16 43 IRFB3806PBF 60 43 0,0158 2,0 6,3 49 IRFB38N20DPBF 200 38 0,054 3,0 16 29 IRFB4019PBF 150 17 0,095 3,0 7 12 IRFB4020PBF 200 18 0,100 3,0 7,8 16 IRFB4103PBF 200 17 0,165 3,0 9,6 16 IRFB4110PBF 100 180 0,0045 2,0 25 78 IRFB4115PBF 150 104 0,011 3,0 18 41 IRFB41N15DPBF 150 41 0,045 3,0 16 25 IRFB4127PBF 200 76 0,020 3,0 17 56 IRFB4212PBF 100 18 0,0725 3,0 7,7 14 IRFB4227PBF 200 65 0,024 3,0 33 21 IRFB4229PBF 250 46 0,046 3,0 18 30 IRFB4310ZPBF 100 75 0,006 2,0 20 55 IRFB4321PBF 150 83 0,015 3,0 18 25
              Part Nr. UDS ID25 RDS(on) UGS(th) td(on) td(off)   [V] [A] W [V] [ns] [ns] IRFB4332PBF 250 60 0,033 3,0 - - IRFB4410ZPBF 100 97 0,009 2,0 16 43 IRFB4610PBF 100 73 0,014 2,0 18 53 IRFB4615PBF 150 35 0,039 3,0 15 25 IRFB4620PBF 200 25 0,0725 3,0 13,4 25,4 IRFB4710PBF 100 75 0,014 3,5 35 41 IRFZ24NPBF 55 17 0,070 2,0 4,9 19 IRFZ34NPBF 55 29 0,040 2,0 7 31 IRFZ44EPBF 60 48 0,023 2,0 12 70 IRFZ44NPBF 55 49 0,0175 2,0 12 44 IRFZ44ZPBF 55 51 0,0139 2,0 14 33 IRFZ46NPBF 55 53 0,0165 2,0 14 52 IRFZ48NPBF 55 64 0,014 2,0 12 34 IRFZ48ZPBF 55 61 0,011 2,0 15 35 IRL530NPBF 100 17 0,100 1,0 7,2 30 IRL540NPBF 100 36 0,044 1,0 11 39 IRL1004PBF 40 130 0,0065 1,0 16 25 IRL1404PBF 40 160 0,004 1,0 18 38 IRL1404ZPBF 40 75 0,0031 1,4 19 30 IRL2203PBF 30 116 0,007 1,0 11 23 IRL3103PBF 30 64 0,012 1,0 8,9 14 IRL3705NPBF 55 89 0,010 1,0 12 37 IRL3714ZPBF 20 36 0,016 1,65 6 10 IRL3715ZPBF 20 50 0,011 1,65 7,1 11 IRL3803PBF 30 140 0,006 1,0 14 29 IRL7833PBF 30 150 0,0038 1,4 18 21 IRL8113PBF 30 105 0,006 1,35 14 18 IRLZ24NPBF 55 18 0,060 1,0 7,1 20 IRLZ34NPBF 55 30 0,035 1,0 8,9 21 IRLZ44NPBF 55 47 0,022 1,0 11 26
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Note
You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211.
Terms of Delivery
Minimum order quantity: Please see price list column "MOQ".
Manufacturer
http://www.irf.com
Inkl. moms
Kr. 14,43
  • v/10 – Kr. 10,87
  • v/25 – Kr. 9,09
  • v/100 – Kr. 6,95
  • v/1000 – Kr. 6,06
