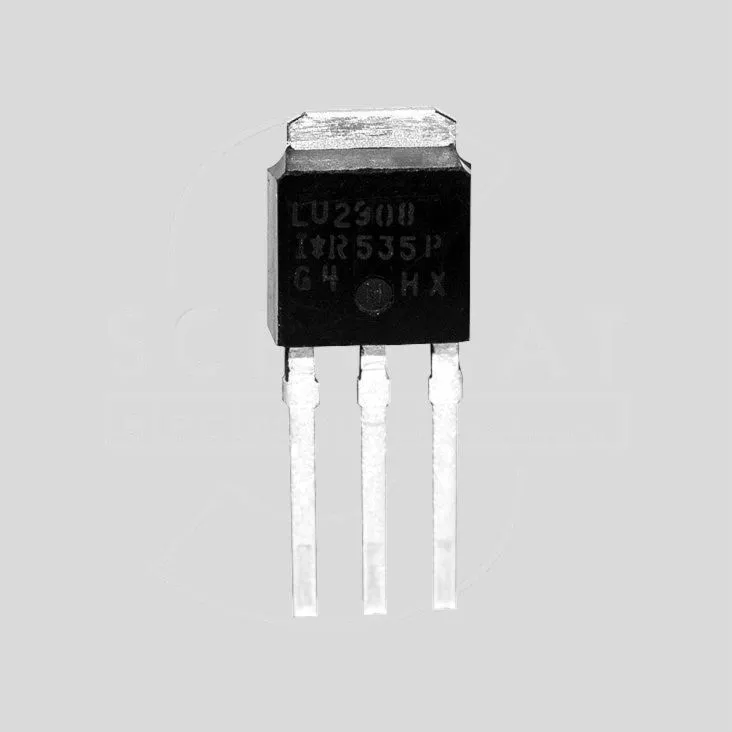

N-Ch 30V 86A 79W 0,0065R TO251AA

Varenummer: 106-654
Varekode: IRFU3709ZPBF
Vægt: 0 g
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "MOSFET"
Specifikationer

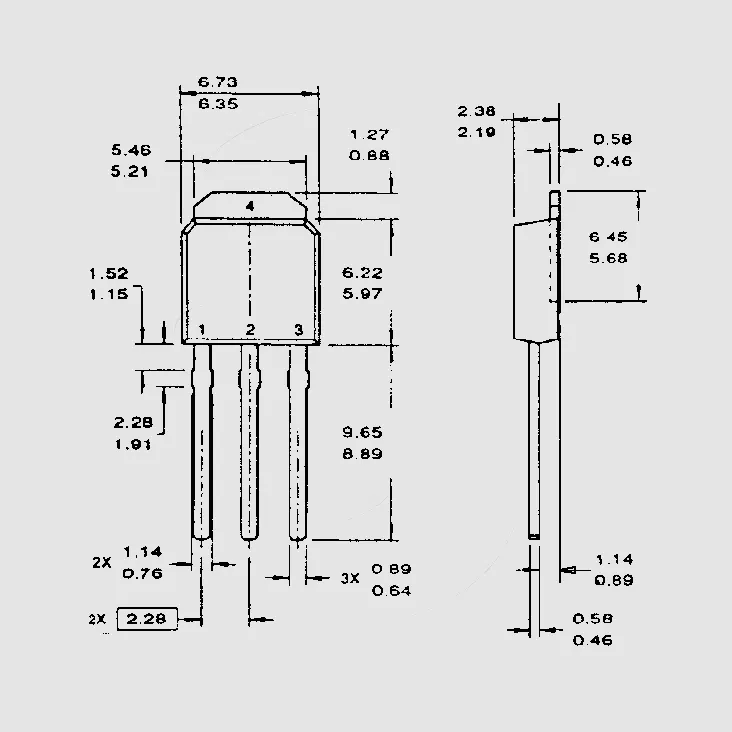

Komponenthus TO251
Transistor polaritet N-Ch
Produkt MOSFET
Continuous drain current, max 86  A
Effekt, max. 79  W
Drain-Source spænding, max 30  V
Drain-Source On-modstand, Rds(on) 0.0065  Ω
Technical Specifications
Part Nr.
UDS
ID25
RDS(on)
UGS(th)
td(on)
td(off)
 [V]
[A]
W
[V]
[ns]
[ns]
IRFU48ZPBF55
42
0,011
2,0
15
40
IRFU120NPBF100
9,4
0,210
2,0
4,5
32
IRFU120ZPBF100
8,7
0,190
2,0
8,3
27
IRFU220NPBF200
5,0
0,600
2,0
6,4
20
IRFU1010ZPBF55
42
0,0075
2,0
17
42
IRFU1018EPBF60
56
0,0084
2,0
13
55
IRFU2307ZPBF75
42
0,016
2,0
16
44
IRFU2607ZPBF75
42
0,022
2,0
14
39
IRFU3607PBF75
56
0,009
2,0
16
43
IRFU3704ZPBF20
60
0,0084
1,65
41
4,9
IRFU3707ZPBF30
56
0,0095
1,35
8
12
IRFU3709ZPBF30
86
0,0065
1,35
12
15
IRFU3710ZPBF100
42
0,018
2,0
14
53
IRFU3711ZPBF20
93
0,0057
1,55
12
15
IRFU3806PBF60
43
0,0158
2,0
6,3
49
IRFU4104PBF40
42
0,0055
2,0
17
37
IRFU4105ZPBF55
30
0,0245
2,0
10
26
Part Nr.
UDS
ID25
RDS(on)
UGS(th)
td(on)
td(off)
 [V]
[A]
W
[V]
[ns]
[ns]
IRFU9024NPBF55
11
0,175
2,0
13
23
IRLU024NPBF55
17
0,065
1,0
7,1
20
IRLU024ZPBF55
16
0,058
1,0
8,2
19
IRLU120NPBF100
10
0,185
1,0
4
23
IRLU2905PBF55
42
0,027
1,0
11
26
IRLU2905ZPBF55
42
0,0135
1,0
14
24
IRLU2908PBF80
30
0,028
1,0
12
36
IRLU3110ZPBF100
42
0,014
1,0
24
33
IRLU3114ZPBF40
42
0,0049
1,0
25
33
IRLU3410PBF100
17
0,105
1,0
7,2
30
IRLU3705ZPBF55
42
0,008
1,0
17
33
IRLU3715ZPBF20
49
0,011
1,65
7,8
10
IRLU3717PBF20
120
0,004
1,55
14
5,8
IRLU7807ZPBF30
43
0,0138
1,35
7,1
9,8
IRLU8113PBF30
94
0,006
1,35
9,2
15
IRLU8721PBF30
65
0,0084
1,35
8,8
9,4
IRLU8743PBF30
160
0,0031
1,35
19
21
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Note
You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211.
Terms of Delivery
Minimum order quantity: Please see price list column "MOQ".
Manufacturer

http://www.irf.com
Inkl. moms
v/10 Kr. 20,70
  • v/25 – Kr. 18,02
  • v/100 – Kr. 14,19
  • v/1000 – Kr. 12,85
