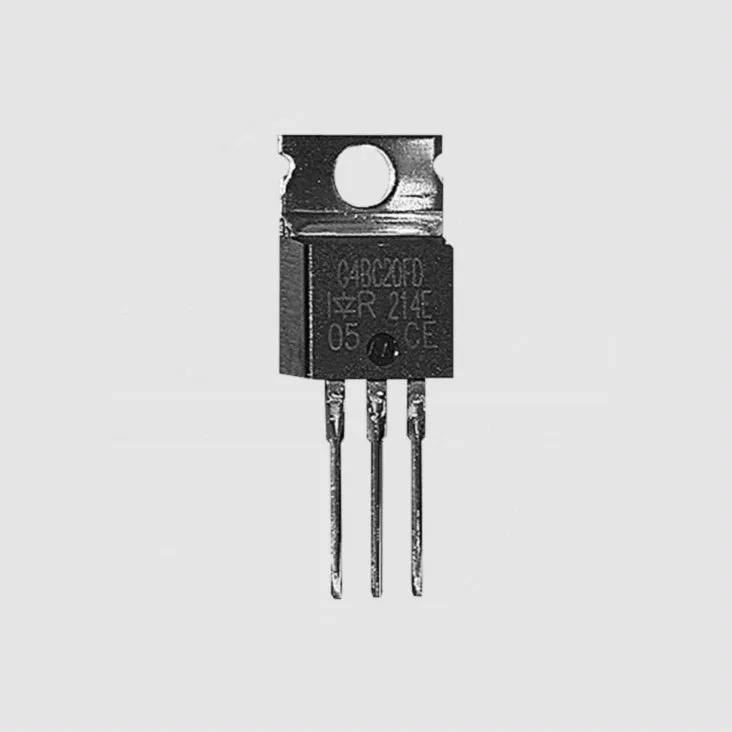

600V 12A 77W TO220AB
Varenummer:
106-632
Varekode: IRGB4045DPBF
Vægt: 2 g
0 stk.
på lager
Gruppe:
U4344
INTERNATIONAL RECTIFIER (IR) IGBTs with FRED
Series: IRG4B_D_, IRGB4_D_
Case: TO220AB
INTERNATIONAL RECTIFIER (IR) IGBTs with FRED
Series: IRG4B_D_, IRGB4_D_
Case: TO220AB
| Technical Specifications |
| Part Nr. | UCES | IC25 | ICpuls | Ptot | UGE(th) | td(on) | td(off) |
| IRG4B/B4_ | [V] | [A] | [A] | [W] | [V] | [ns] | [ns] |
| C20FDPBF | 600 | 16 | 64 | 60 | 3,0 | 43 | 240 |
| C20KDPBF | 600 | 16 | 32 | 60 | 3,0 | 54 | 180 |
| C20UDPBF | 600 | 13 | 52 | 60 | 3,0 | 39 | 93 |
| C30FDPBF | 600 | 31 | 120 | 100 | 3,0 | 42 | 230 |
| C30KDPBF | 600 | 28 | 58 | 100 | 3,0 | 60 | 160 |
| C30UDPBF | 600 | 23 | 92 | 100 | 3,0 | 40 | 91 |
| 045DPBF | 600 | 12 | 20 | 77 | 4,0 | 27 | 75 |
| 056DPBF | 600 | 24 | 48 | 140 | 4,0 | 31 | 83 |
| 059DPBF | 600 | 8 | 16 | 56 | 4,0 | 25 | 65 |
| 060DPBF | 600 | 16 | 32 | 99 | 4,0 | 30 | 95 |
| 061DPBF | 600 | 36 | 72 | 206 | 4,0 | 40 | 105 |
| 062DPBF | 600 | 48 | 96 | 250 | 4,0 | 41 | 104 |
| 064DPBF | 600 | 20 | 40 | 101 | 4,0 | 27 | 79 |
| UCES = Max. Collector-Emitter Breakdown Voltage, IC25 = Max. Continuous Collector Current At TC = 25°C, ICpuls = Max. Pulsed Collector Current, Ptot = Power Dissipation, UGE(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | |||||||
 | |||||||
| Note |
| You will find suitable isolation assemblies and heatsinks in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.irf.com |
|
