Lead-Acid Rech.Battery 12V/45W

Varenummer: 106-467
Varekode: UPPW12-45P1
Vægt: 2600 g
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "Bly 12V"
Gruppe: S2755
PANASONIC Lead-Acid Rechargeable Batteries
High-current-proof
Rated Voltage: 12V
Series: UP
Construction
Positive and negative electrodes made of a lead-tin calcium alloy.
The fiber glass separators contain high acid resistancy and low electric conductivity.
A security valve (response pressure 1 to 6Psi) allows excess gas to escape and stabilizes the optimal inside pressure.
The ABS leak-proof rechargeable battery case allows application in any position.
Features
For uninterruptible power supplies and providing stand-by power
For short discharge times of up to 30 minutes
Expected service life:
UPR_: 6 to 9 years
UPP_: 10 to 12 years
Approx. 30% higher energy density compared to conventional lead-acid batteries
Completely maintenance-free
Sealed, leak-proof housing
Operates in all positions
Fast charging capability
High energy density
Technical Specifications
Part Nr.
Panas.-Des.
UN
CN
C30
C15
C10
C5
UPR(P)W_
UP-_
[V]
[W/2V]
[W]
[W]
[W]
[W]
12-20P1RW1220P1
12
20
55
86
114
171
A12-32P2RWA1232P2
12
32
94
149
182
294
12-45P1RW1245P1
12
45
108
185
254
389
12-45P1PW1245P1
12
45
112
195
268
410
UN = Rated Voltage, CN = Rated Capacitance = Discharging Over 10min., C30 = Discharging Over 30min., C15 = Discharging Over 15min., C10 = Discharging Over 10min., C5 = Discharging Over 5min.
Trickle Charge System
Suitable charging voltage 13,6 to 13,8V; without limiting charging current.

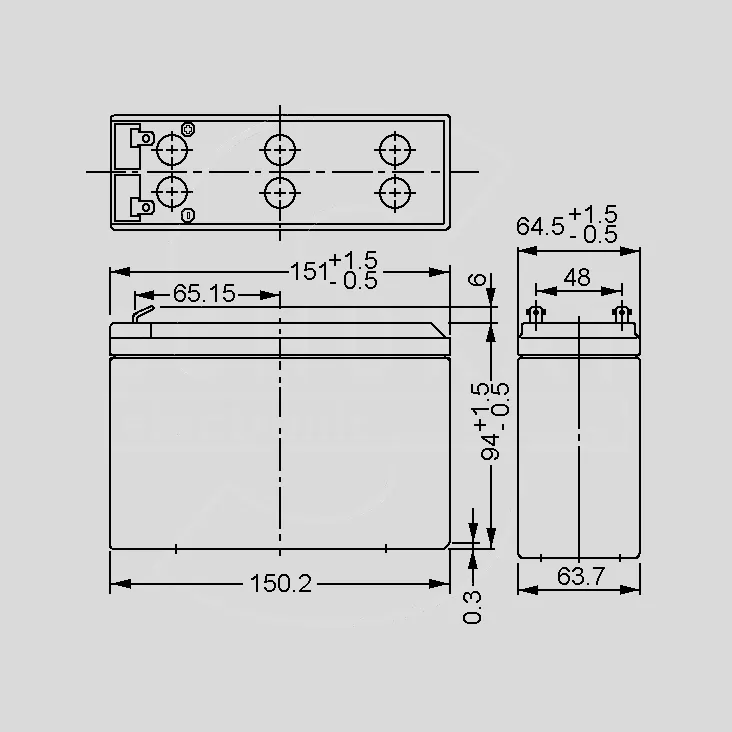

Dimensions
Part Nr.
L
B
H
Hges.
Weight
Terminal
UPR(P)W_
[mm]
[mm]
[mm]
[mm]
[kg]

12-20P1140
38,5
94
100,0
1,35
F1
A12-32P2151
51,0
94
100,0
2,00
F1
12-45P1151
64,5
94
101,5
2,60
F1
12-45P1151
64,5
94
100,0
2,60
F1
Hges. = Height with Terminals
Approvals

Note
You will find suitable battery chargers at product group S7811.
On request, we will gladly send you the recommended charging circuit from the manufacturer.
Prices exclude battery disposal fee, in accordance with BattG for deliveries within Germany to customers without ownership rights contract (see for price list).
Recycling
All used lead batteries must be given to an environmentally-friendly waste bank for disposal in accordance with local regulations.
Do not dispose of used batteries in domestic waste!

Terms of Delivery
Minimum order quantity: 1 PKU = 1 piece
Articles in bold print in stock, other articles of 10 pieces upwards available on request, delivery time approx. 12 weeks.
Manufacturer

http://www.industrial.panasonic.com/eu
