• Positive and negative electrodes made of a lead-tin-calcium alloy.
• The fiber glass separators contain high acid resistancy and low electric conductivity.
• A security valve (response pressure 1 to 6Psi) allows excess gas to escape and stabilizes the optimal inside pressure.
• The ABS leak-proof rechargeable battery case allows application in any position.
|
 |
• Absolute maintenance-free
• Sealed, leak-resistant structure
• Expected Design Life
LCR: 6 to 9 years
LCX: 10 to 12 years
• Operates in any position
• Fast charging capacity
• High energy density
|
|
|
|
|
|
|
|
|
Part Nr.
|
Panas.-Des.
|
UN
|
CN
|
C10
|
C5
|
C1
|
| |
LC-
|
[V]
|
[Ah]
|
[Ah]
|
[Ah]
|
[Ah]
|
| LCR1,3-12 |
R121R3PG
|
12
|
1,3
|
1,2
|
1,05
|
0,85
|
| LCR2,2-12 |
R122R2PG
|
12
|
2,2
|
2,0
|
1,80
|
1,30
|
| LCR3,4-12 |
R123R4PG
|
12
|
3,4
|
3,0
|
2,70
|
2,10
|

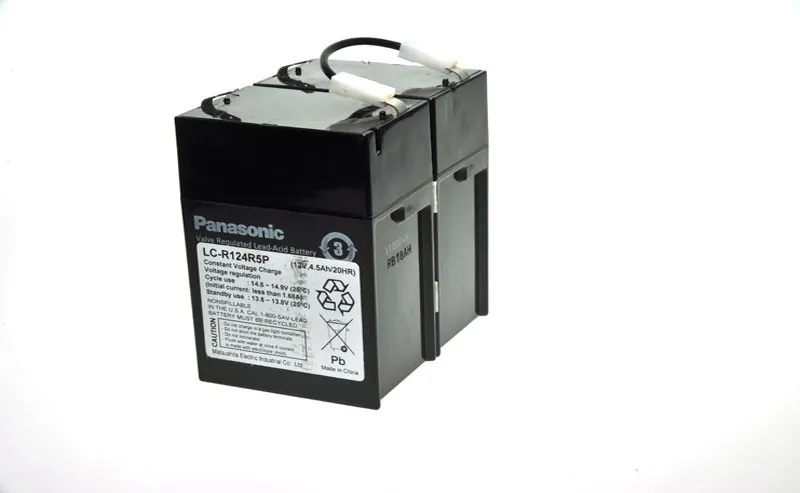

| LCR4,5-12 |
R124R5PD
|
12
|
4,5
|
3,9
|
3,50
|
2,80
|
| LCR7,2-12 |
R127R2PG
|
12
|
7,2
|
6,8
|
6,3
|
4,9
|
| LCR7,2-12F |
R127R2PG1
|
12
|
7,2
|
6,8
|
6,3
|
4,9
|
| LCR12-12 |
RA121PG
|
12
|
12,0
|
11,3
|
10,4
|
8,1
|
| LCR12-12F |
RA1212PG1
|
12
|
12,0
|
11,3
|
10,4
|
8,1
|
| LCX17-12 |
XD1217PG
|
12
|
17,0
|
15,0
|
13,0
|
10,0
|
| LCX24-12 |
X1224APG
|
12
|
24,0
|
22,0
|
19,0
|
14,0
|
| LCX28-12 |
X1228AP
|
12
|
28,0
|
26,5
|
25,0
|
21,0
|
| LCX38-12 |
X1238APG
|
12
|
38,0
|
35,0
|
31,5
|
22,5
|
| LCX42-12 |
X1242AP
|
12
|
42,0
|
40,0
|
37,0
|
26,0
|
| LCX65-12 |
X1265PG
|
12
|
65,0
|
59,0
|
53,0
|
40,0
|
| LCX75-12 |
X1275P
|
12
|
75,0
|
68,0
|
61,0
|
45,0
|
| LCX100-12 |
XB12100P
|
12
|
100,0
|
98,0
|
90,0
|
75,0
|
| LCX120-12 |
X12120P
|
12
|
120,0
|
109,0
|
99,0
|
74,0
|
UN = Rated Voltage, CN = Rated Capacitance = Discharging Over 20h, C10 = Discharging Over 10h, C5 = Discharging Over 5h, C1 = Discharging Over 1h
|
|
Suitable charging voltage 13,6 to 13,8V; without limiting charging current.
|
|
Charging Method for Operating Cycles
|
Suitable charging voltage 14,5 to 14,9V; starting charging current must be limited to maximum 0,4C (constant charging voltage).
|
|
|
|
|
|
|
|
|
Part Nr.
|
L
|
W
|
H
|
Hges.
|
Weight
|
Terminal
|
| |
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[kg]
|
|
| LCR1,3-12 |
97
|
47,5
|
50
|
55
|
0,59
|
F1
|
| LCR2,2-12 |
177
|
34
|
60
|
66
|
0,8
|
F1
|
| LCR3,4-12 |
134
|
67
|
60
|
66
|
1,2
|
F1
|
| LCR4,5-12 |
70
|
97
|
102
|
108
|
1,45
|
F1
|
| LCR7,2-12 |
151
|
64,5
|
94
|
100
|
2,5
|
F1
|
| LCR7,2-12F |
151
|
64,5
|
94
|
100
|
2,5
|
F2
|
| LCR12-12 |
151
|
101,5
|
94
|
102
|
3,9
|
F1
|
| LCR12-12F |
151
|
101,5
|
94
|
102
|
3,9
|
F2
|
| LCX17-12 |
181
|
76
|
167
|
167
|
6,5
|
M5
|
| LCX24-12 |
165
|
125
|
175
|
175
|
9,0
|
M5
|
| LCX28-12 |
165
|
125
|
175
|
175
|
11,0
|
M5
|
| LCX38-12 |
197
|
165
|
175
|
175
|
13,0
|
M5
|
| LCX42-12 |
197
|
165
|
175
|
175
|
16,0
|
M5
|
| LCX65-12 |
350
|
166
|
175
|
175
|
20,0
|
M6
|
| LCX75-12 |
350
|
166
|
175
|
175
|
24,0
|
M6
|
| LCX100-12 |
407
|
173
|
210
|
236
|
37,0
|
M8
|
| LCX120-12 |
407
|
173
|
210
|
236
|
37,0
|
M8
|
Hges. = Height with Terminals
|
|
LCR1,3-12, LCR2,2-12, LCR3,4-12, LCR7,2-12_, LCR12-12_, LCX24-12, LCX38-12, LCX65-12: VdS
|
|
| Approvals |
|
|
All used lead batteries must be given to an environmentally-friendly waste bank for disposal in accordance with local regulations.
Do not dispose of used batteries in domestic waste!

|
|
| Manufacturer |
http://www.panasonic-industrial.com
|
|
|
