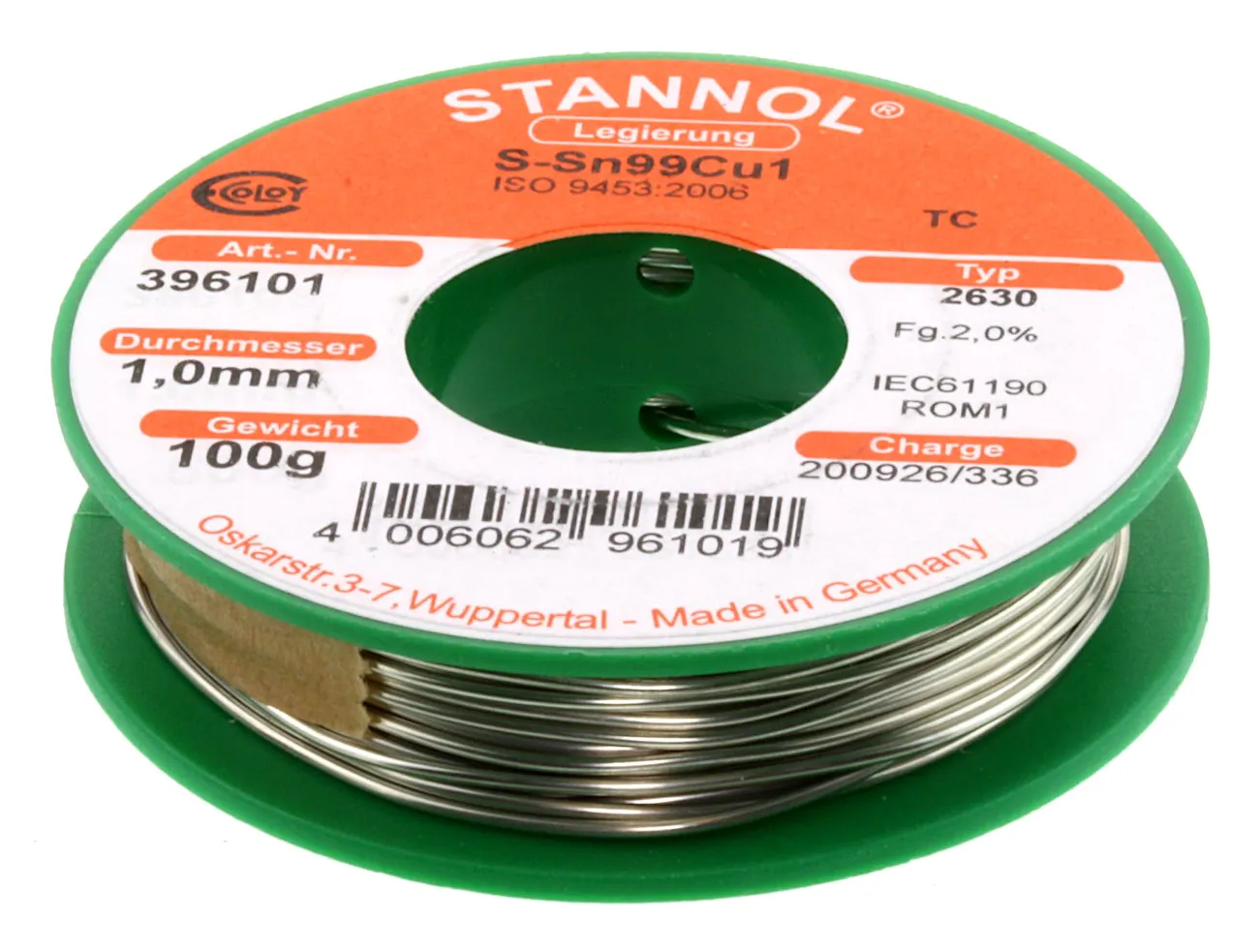

Sn99Cu1 Ecoloy 2,0% 1,0mm 100g/396101
Varenummer:
106-356
Varekode: LZ2610TC-0100
Vægt: 135 g
7 stk.
på lager
Specifikationer
| Produkt | loddetin |
|---|---|
| Flusmiddel | 2 % |
| Vægt | 100 g |
| Diameter | 1 mm |
Gruppe: R5116
STANNOL Lead-free Soldering Wires Ecoloy
Halide-activated Flux 2,0%
Diameter: 1,0mm
Series: 2630 TC
396101
| Features |
| • Halide-activated natural resin fluxes • High activity, good spread and high residue reliability • High spread speed • Soldering points are glossy with few bright flux residues • Flux residues - can be left on the PCB • For soldering transformers and soldering copper cables with large cross sections • For soldering which requires a strong fluxing agent due to the extreme heat capacity of the component • Hand and robot soldering |
 |
| Technical Specifications |
|
|
| Melting Point: | 217°C |
| Flux Type (IEC 61190-1-3 ROM1): | 1.1.2.B |
| Flux Content: | 2,0% |
| Corrosive Effects (DIN 8516): | None |
| Alloy (ISO 9453:2006): | Sn99Cu1/TC |
| Flux Core: | 1 Core |
|
|
| Note |
| • Soldering temperature and soldering time must accordingly be adjusted for lead-free solders. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
Inkl. moms
Kr. 169,00
- v/10 – Kr. 149,00
- v/25 – Kr. 139,00
Produktfiler
Sn99Cu1 Ecoloy 2,0% 1,0mm 100g/396101
106-356
/ LZ2610TC-0100
7 stk.
på lager
Specifikationer
- Produkt loddetin
- Flusmiddel 2 %
- Vægt 100 g
- Diameter 1 mm
Gruppe: R5116
STANNOL Lead-free Soldering Wires Ecoloy
Halide-activated Flux 2,0%
Diameter: 1,0mm
Series: 2630 TC
396101
| Features |
| • Halide-activated natural resin fluxes • High activity, good spread and high residue reliability • High spread speed • Soldering points are glossy with few bright flux residues • Flux residues - can be left on the PCB • For soldering transformers and soldering copper cables with large cross sections • For soldering which requires a strong fluxing agent due to the extreme heat capacity of the component • Hand and robot soldering |
|
| Technical Specifications |
|
|
| Melting Point: | 217°C |
| Flux Type (IEC 61190-1-3 ROM1): | 1.1.2.B |
| Flux Content: | 2,0% |
| Corrosive Effects (DIN 8516): | None |
| Alloy (ISO 9453:2006): | Sn99Cu1/TC |
| Flux Core: | 1 Core |
|
|
| Note |
| • Soldering temperature and soldering time must accordingly be adjusted for lead-free solders. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
