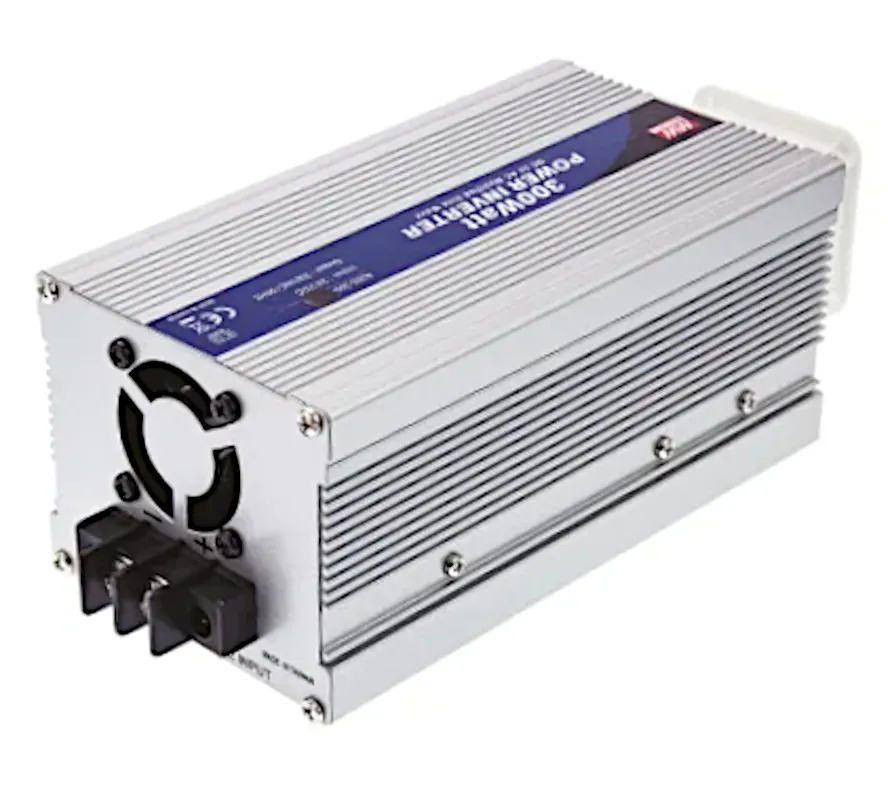

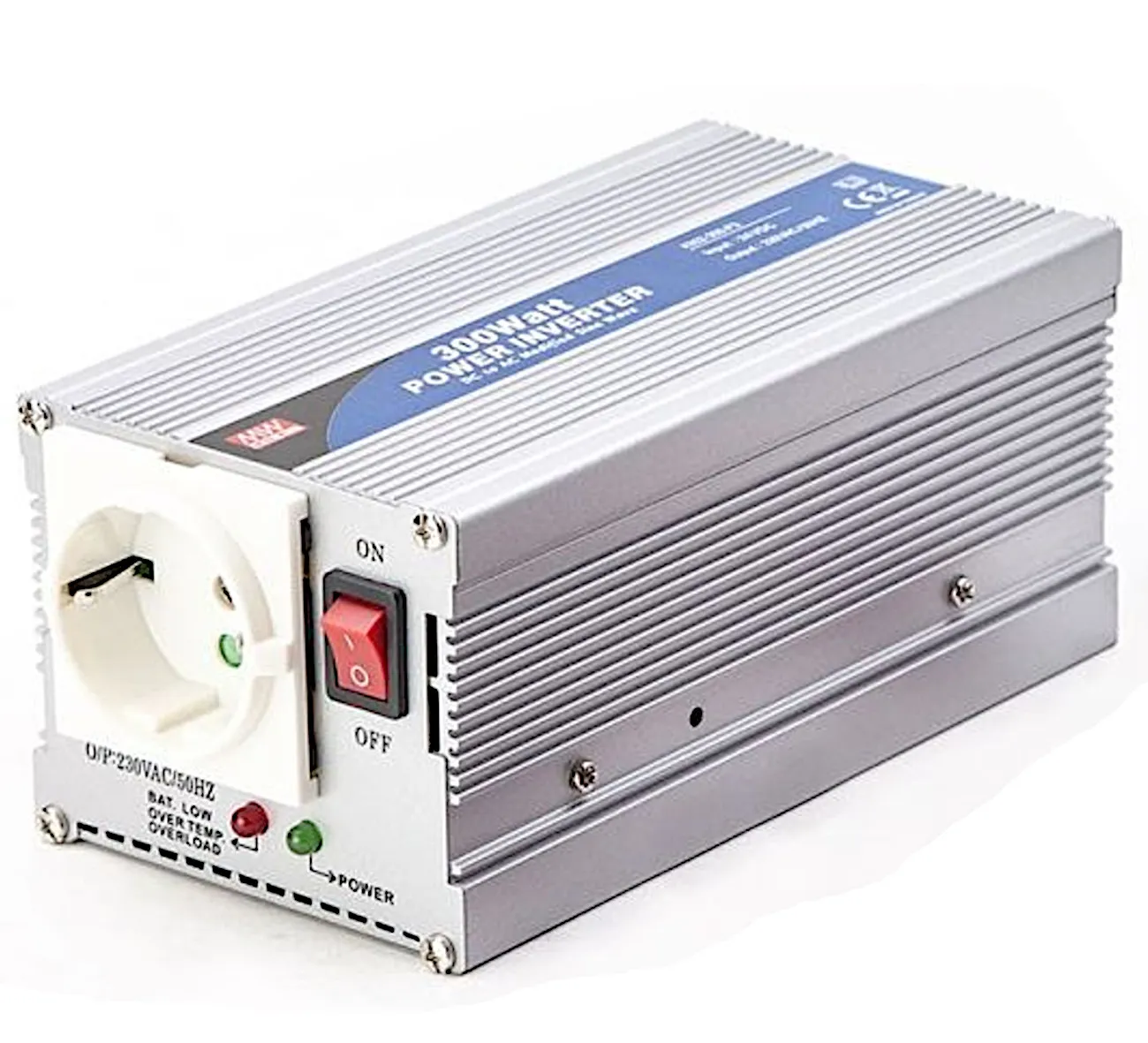

DC/AC Inverter 24V/230V 300W
Varenummer:
106-098
Varekode: A302-300-F3
Vægt: 1187 g
1 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 9 stk. kan skaffes onsdag d. 14/10
DC/AC Inverter 24V/230V 300W - Spændingsomformer
Gruppe: L9122
MEANWELL DC/AC Converters
Series: A30_-300-F3
With Modified Sine Wave Output
Output: 300W
| Features |
| • Modified sine wave output • Power On/Off switch • Front panel indicator for operation status • Battery low alarm, Battery low shutdown • Protections: over voltage/over temperature/overload/output short/input reverse polarity • Built-in fan On/Off control function |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||
| Input Voltage: | See Table | Output Voltage: | 230V AC | Output Voltage Tolerance: | ±10% | Output Frequency: | 50Hz ±1% | Output Rated Power: | 300W | Peak Power: | 600W | Wave Form: | Modified Sine Wave | Overvoltage | A301-300-F3: | 15...17V | A302-300-F3: | 30...32V | Operating Temperature | 100% Load: | 0...+30°C | 50% Load: | 0...+40°C | Weight: | 1100g | ||||
|
|||||||||||||||||||||||||||||
| Part Nr. | UE | IE | UBA | UBL | h | [V] | [A] | [V] | [V] | [%] | A301-300-F3 | 12 | 0...35 | 10 | 9,5 | 82 | A302-300-F3 | 24 | 0...15 | 20 | 19,5 | 85 | |||||||
| UE = Input Voltage Range, IE = Input Current, UBA = Battery Low Alarm, UBL = Battery Shutdown, h = Efficiency | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| Note |
| Before using the DC/AC converter, please ensure that your terminal equipment has been approved by the manufacturer for operation with modified sine-wave voltage (trapezoid). |
|
| Labelling |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
