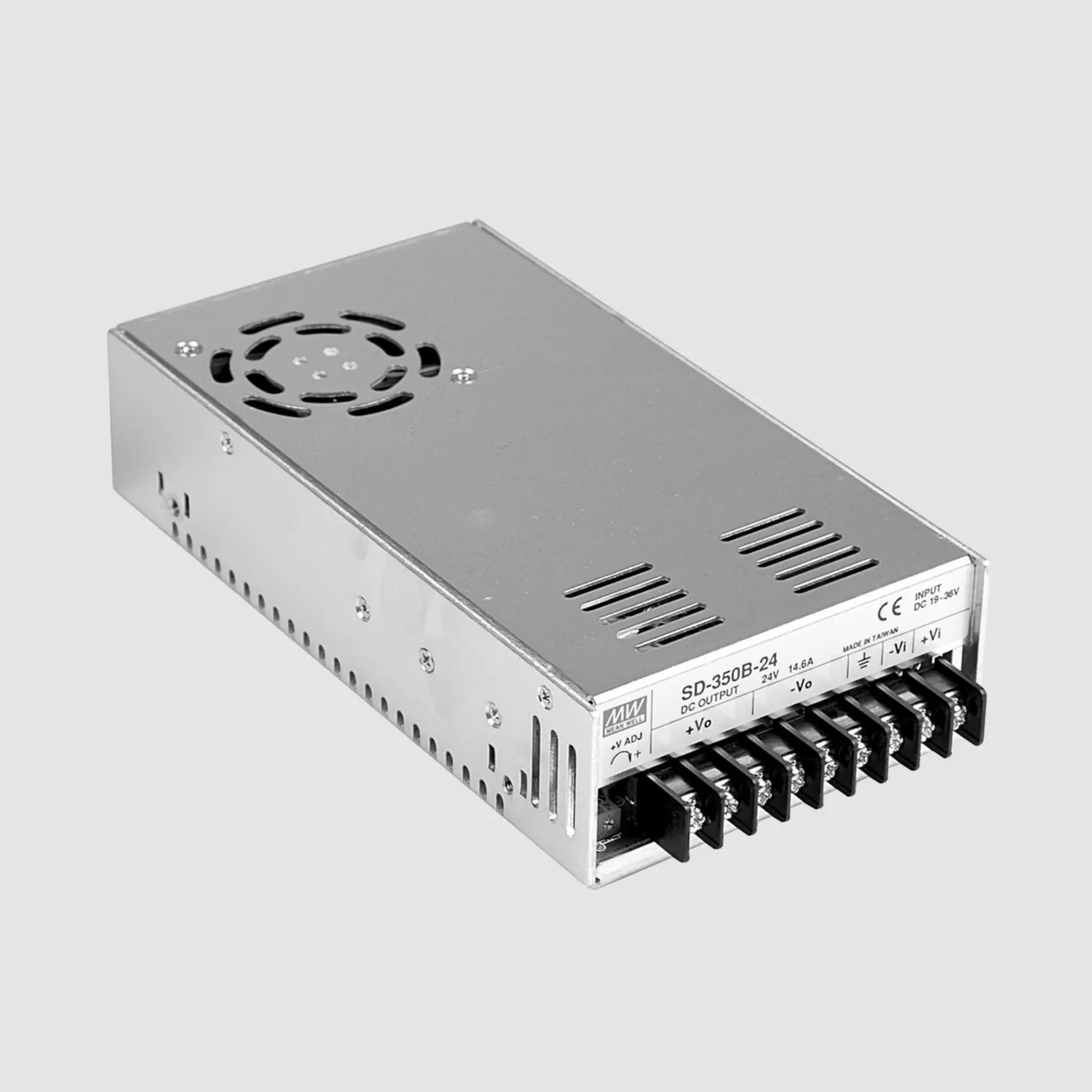

DC/DC-Conv 19-36V:24V 14,6A 350W

Varenummer: 106-061
Varekode: SD-350B-24
Vægt: 1191 g
0 stk. på lager
Vis lignende produkter i kategorien "50W"
Gruppe: L8561
MEANWELL DC/DC Converters
Series: SD-350
Case, Single Output
Input Voltage Ratio: 2:1
Output: 285 to 350W
Features
• Enclosed case, screw terminals
• Forced air cooling by built-in DC fan
• Overload protection, pulsing hiccup shutdown, auto recovery
• Wide input voltage range 2:1
• DC decoupling of input and output
• Input/output insulation 1500V
• Regulated output voltage
• Short-circuit proof
Technical Specifications
Input Voltage:
See Table
Over Load Protection:
105...135%
Withstand Voltage
I/P-O/P:
1500V AC
I/P-FG:
1500V AC
O/P-FG:
500V AC
Operating Temperature:
-20...+60°C
Weight:
1100g
I/P = Input, O/P = Output, FG = Frame Ground

Part Nr.
UE
UA
IA
Uadj
DUA
URN
h
SD-_
[V]
[V]
[A]
[V]
[%]
[mVp-p]
[%]
350B-519...36
5
0...57
4,5...5,5
2
100
74
350B-1219...36
12
0...27,5
11...16
1
120
80
350B-2419...36
24
0...14,6
23....30
1
150
80
350B-4819...36
48
0...7,3
43...53
1
200
84
350C-536...72
5
0...60
4,5...5,5
2
100
76
350C-1236...72
12
0...27,5
11...16
1
120
81
350C-2436...72
24
0...14,6
23....30
1
150
81
350C-4836...72
48
0...7,3
43...53
1
200
82
350D-572...144
5
0...60
4,5...5,5
2
100
78
350D-1272...144
12
0...29,2
11...16
1
120
83
350D-2472...144
24
0...14,6
23....30
1
150
87
350D-4872...144
48
0...7,3
43...53
1
200
89
UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency
Labelling

Terms of Delivery
Minimum order quantity: 1 PKU = 1 piece
Manufacturer

http://www.meanwell.com
Inkl. moms
Kr. 1235,63
