DC/DC-Conv 19-36V:24V 6,3A 151W
Varenummer:
106-042
Varekode: SD-150B-24
Vægt: 822 g
0 stk.
på lager
Gruppe:
L8541
MEANWELL DC/DC Converters
Series: SD-150
Case, Single Output
Input Voltage Ratio: 2:1
Output: 150 to 151W
MEANWELL DC/DC Converters
Series: SD-150
Case, Single Output
Input Voltage Ratio: 2:1
Output: 150 to 151W
| Features |
| Enclosed case, screw terminals Overload protection, current limiting, hiccup after 5s, re-power-on Wide input voltage range 2:1 DC decoupling of input and output Input/output insulation 1500V Regulated output voltage Short-circuit proof |
 |
| Technical Specifications |
| |
| Input Voltage: | See Table |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 1500V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 500V AC |

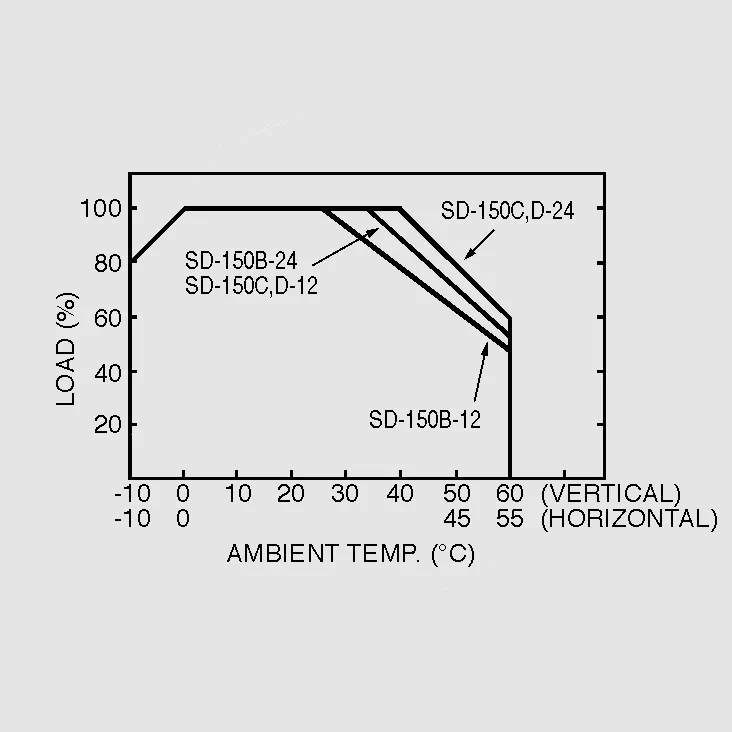

| Operating Temperature: | -10...+60C |
| Weight: | 860g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UE | UA | IA | Uadj | DUA | URN | h |
| SD-_ | [V] | [V] | [A] | [V] | [%] | [mVp-p] | [%] |
| 150B-12 | 19...36 | 12 | 0...12,5 | 11...16 | 1 | 120 | 75 |
| 150B-24 | 19...36 | 24 | 0...6,3 | 23...30 | 1 | 150 | 77 |
| 150C-12 | 36...72 | 12 | 0...12,5 | 11...16 | 1 | 120 | 77 |
| 150C-24 | 36...72 | 24 | 0...6,3 | 23...30 | 1 | 150 | 80 |
| 150D-12 | 72...144 | 12 | 0...12,5 | 11...16 | 1 | 120 | 79 |
| 150D-24 | 72...144 | 24 | 0...6,3 | 23...30 | 1 | 150 | 82 |
| UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | |||||||
| |||||||
| Labelling |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
