DC/DC-Conv 9,4-36V:+/-5V 1500mA
Varenummer:
105-975
Varekode: NSD15-12D5
Vægt: 29 g
0 stk.
på lager
Gruppe:
L8378
MEANWELL DC/DC Converter Modules
Series: NSD15-D
Open Frame, Dual Output
Input Voltage Ratio: 4:1
Output: 15W
MEANWELL DC/DC Converter Modules
Series: NSD15-D
Open Frame, Dual Output
Input Voltage Ratio: 4:1
Output: 15W
| Features |
| Open frame housing with integrated heatsink Overload protection, power limiting, auto recovery For direct PCB mounting Wide input voltage range 4:1 Built-in remote On/Off control DC decoupling of input and output Input/output insulation 1500V Regulated output voltage Short-circuit proof |
 |
| Technical Specifications |
| |
| Input Voltage: | See Table |
| Over Load Protection: | >105% |
| Withstand Voltage: | 1500V DC |
| Operating Temperature: | -25...+70C |
| Weight: | 30g |
| |
| Part Nr. | UE | UA | IA | DUA | URN | h |
| [V] | [V] | [mA] | [%] | [mVp-p] | [%] | |
| NSD15-12D5 | 9,4...36 | ±5 | 70...1500 | 3 | 100 | 76 |
| NSD15-12D12 | 9,4...36 | ±12 | 30...620 | 2 | 100 | 80 |
| NSD15-12D15 | 9,4...36 | ±15 | 20...500 | 2 | 100 | 80 |
| NSD15-48D5 | 18...72 | ±5 | 70...1500 | 3 | 100 | 80 |
| NSD15-48D12 | 18...72 | ±12 | 30...620 | 2 | 100 | 84 |
| NSD15-48D15 | 18...72 | ±15 | 20...500 | 2 | 100 | 84 |
| UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
| ||||||

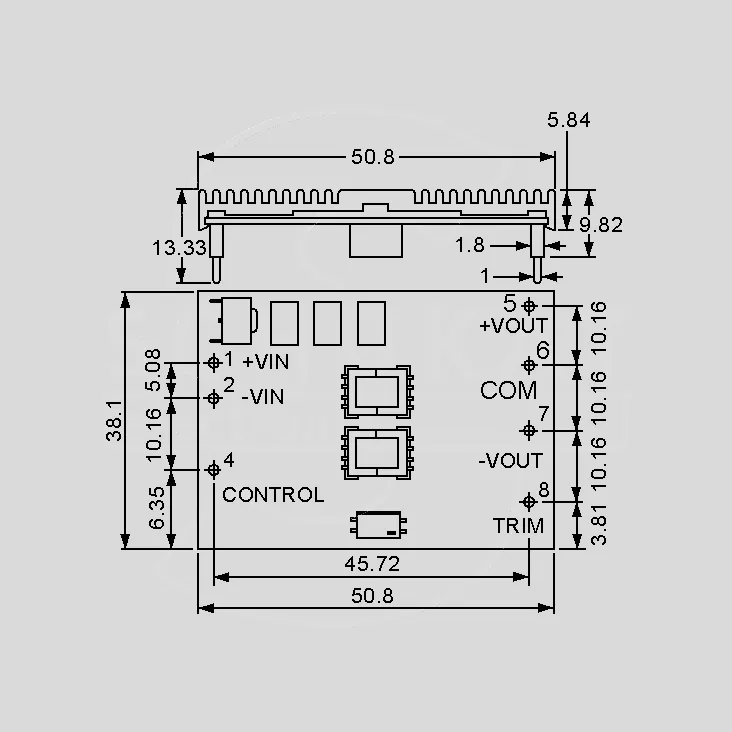

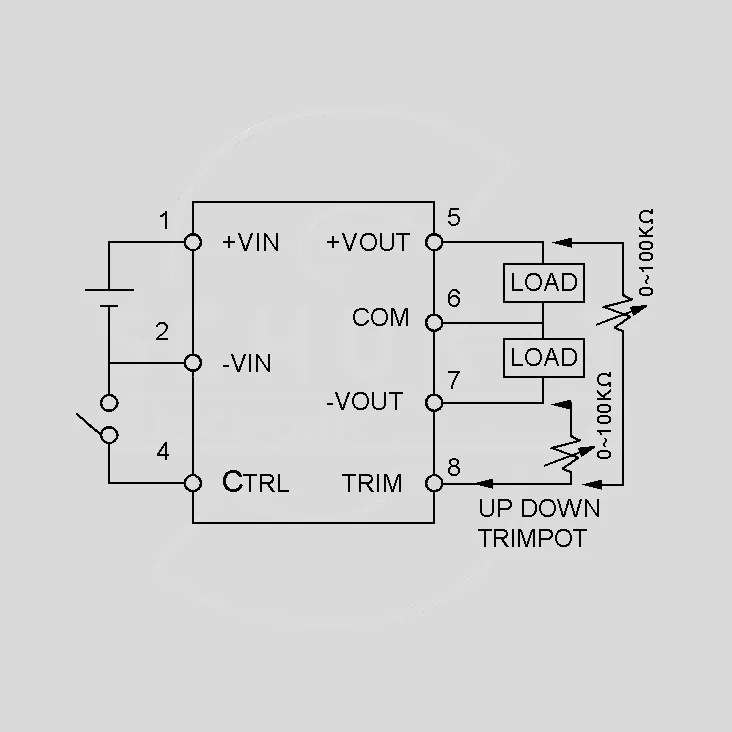

| Pin Assignment |
| |
| Pin 1: | +UIN |
| Pin 2: | -UIN |
| Pin 3: | - |
| Pin 4: | CTRL |
| Pin 5: | +UOUT |
| Pin 6: | COM |
| Pin 7: | -UOUT |
| Pin 8: | Trim |
| |
| Labelling |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
