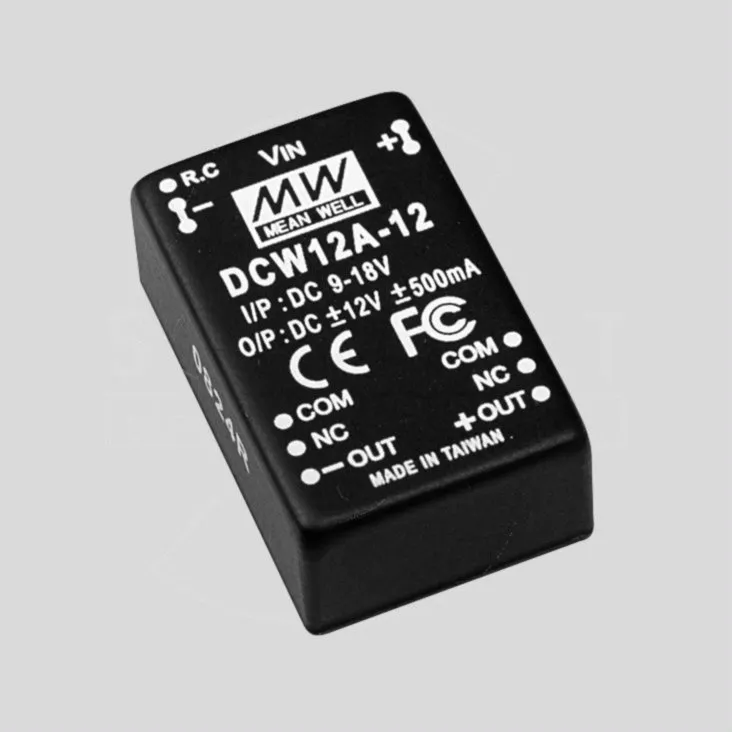

DC/DC-Conv 9-18V:+/-12V 500mA 12W

Varenummer: 105-897
Varekode: DCW12A-12
Vægt: 25 g
0 stk. på lager
Ved bestilling nu, får vi dem hjem tirsdag d. 3/11
Vis lignende produkter i kategorien "12W"
Gruppe: L8345
MEANWELL DC/DC Converter Modules
Series: DCW12
DIP/DIL24 Housing, Dual Output
Input Voltage Ratio: 2:1
Output: 12W
Features
• DIP/DIL24 housing
• For direct PCB mounting
• Wide input voltage range 2:1
• DC decoupling of input and output
• Built-in remote On/Off control
• Input/output insulation 1500V
• Regulated output voltage
• Short-circuit proof
Technical Specifications
Input Voltage:
See Table
Output Power:
12W
Over Load Protection:
110...180%
Withstand Voltage:
1500V DC
Operating Temperature:
-25...+71°C
Weight:
18,5g
Part Nr.
UE
UA1
IA1
UA2
IA2
URN
h
DCW_
[V]
[V]
[mA]
[V]
[mA]
[mVp-p]
[%]
12A-059...18
5
240...1200
-5
240...1200
50
80
12A-129...18
12
100...500
-12
100...500
60
84
12A-159...18
15
80...400
-15
80...400
60
83
12B-0518...36
5
240...1200
-5
240...1200
50
80
12B-1218...36
12
100...500
-12
100...500
60
84
12B-1518...36
15
80...400
-15
80...400
60
84
12C-0536...72
5
240...1200
-5
240...1200
50
81
12C-1236...72
12
100...500
-12
100...500
60
84
12C-1536...72
15
80...400
-15
80...400
60
83
UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, URN = Ripple & Noise, h = Efficiency

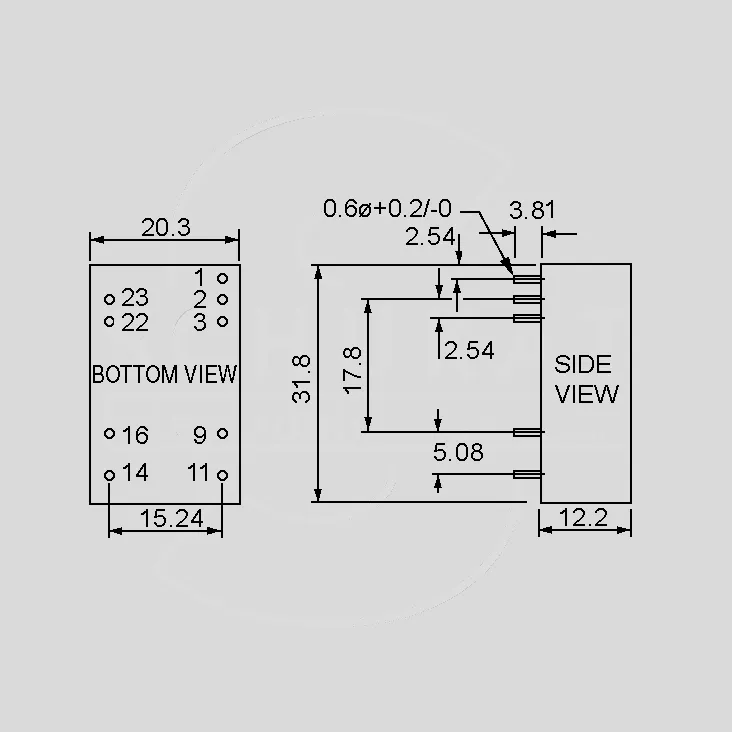

Pin Assignment
Pin 1:
RC
Pin 2, 3:
-UIN
Pin 9:
COM
Pin 11:
-UOUT
Pin 14:
+UOUT
Pin 16:
COM
Pin 22, 23:
+UIN
Labelling

Terms of Delivery
Minimum order quantity: 1 PKU = 1 piece
Manufacturer

http://www.meanwell.com
Inkl. moms
Kr. 526,88
  • v/10 – Kr. 395,16
  • v/25 – Kr. 329,30
  • v/100 – Kr. 263,44
  • v/1000 – Kr. 197,58
