• Enclosed type for direct PCB mounting
• Input voltage range: 85...264V AC
• Overload protection, shutdown, reset: auto recovery
• Short-circuit proof
• Isolation Class II
• For medical usage, EN60601-1 compliant
• Low standby current consumption 0,5W
|
 |
|
|
|
Operating Temperature:
|
-20...+70°C
|
Storage Temperature:
|
-40...+85°C
|
Overload Protection:
|
>105%
|
Overvoltage Protection:
|
115...135%
|
Insulation Voltage
|
I/P-O/P:
|
4000V AC
|
Isolation Resistance (I/P-O/P: 500V DC):
|
100MW
|
Hold Time (230V):
|
100ms
|
Weight:
|
105g
|
|
|
|
|
Imput Voltage:
|
85...264V AC (47...440Hz)
|
120...370V DC
|
Input Rated Current (230V):
|
0,15A
|
Inrush-current, Cold Start (230V):
|
45A
|
|
|
|
|
|
|
|
|
|
Part Nr.
|
UA
|
DUA
|
IAN
|
IA
|
PA
|
URW
|
h
|
| |
[V]
|
[%]
|
[A]
|
[A]
|
[W]
|
[mVp-p]
|
[%]
|

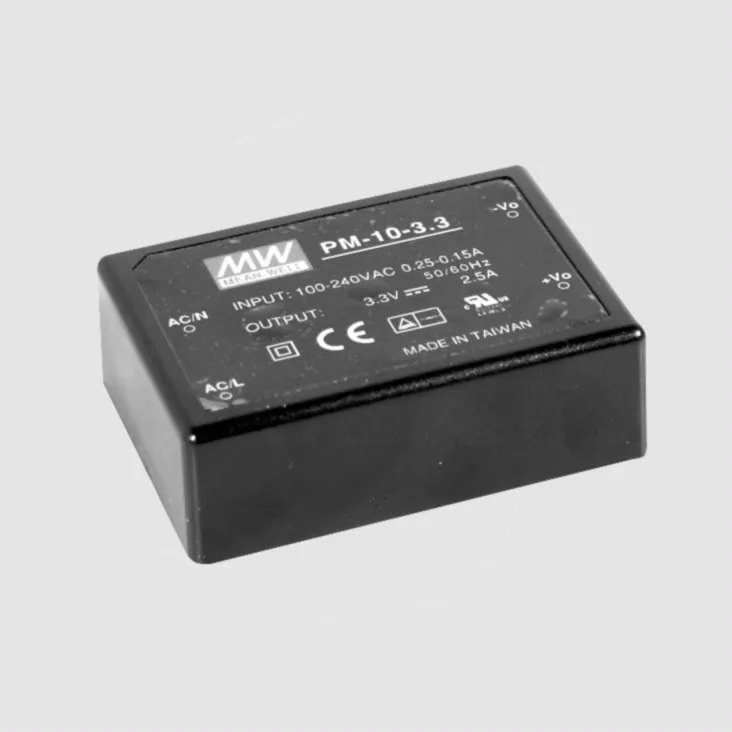

| PM-10-3,3 |
3,3
|
3
|
2,5
|
0...2,50
|
8,2
|
80
|
67
|
| PM-10-5 |
5
|
2
|
2
|
0...2,00
|
10
|
80
|
74
|
| PM-10-12 |
12
|
2
|
0,85
|
0...0,85
|
10
|
150
|
79
|
| PM-10-15 |
15
|
2
|
0,67
|
0...0,67
|
10
|
150
|
80
|
| PM-10-24 |
24
|
2
|
0,42
|
0...0,42
|
10
|
240
|
79
|
UA =Output Voltage, DUA = Output Voltage Tolerance, IAN = Output Rated Current, IA = Output Current Range, PA = DC Output Power, URW = Ripple & Noise, h = Efficiency
|
|
|
