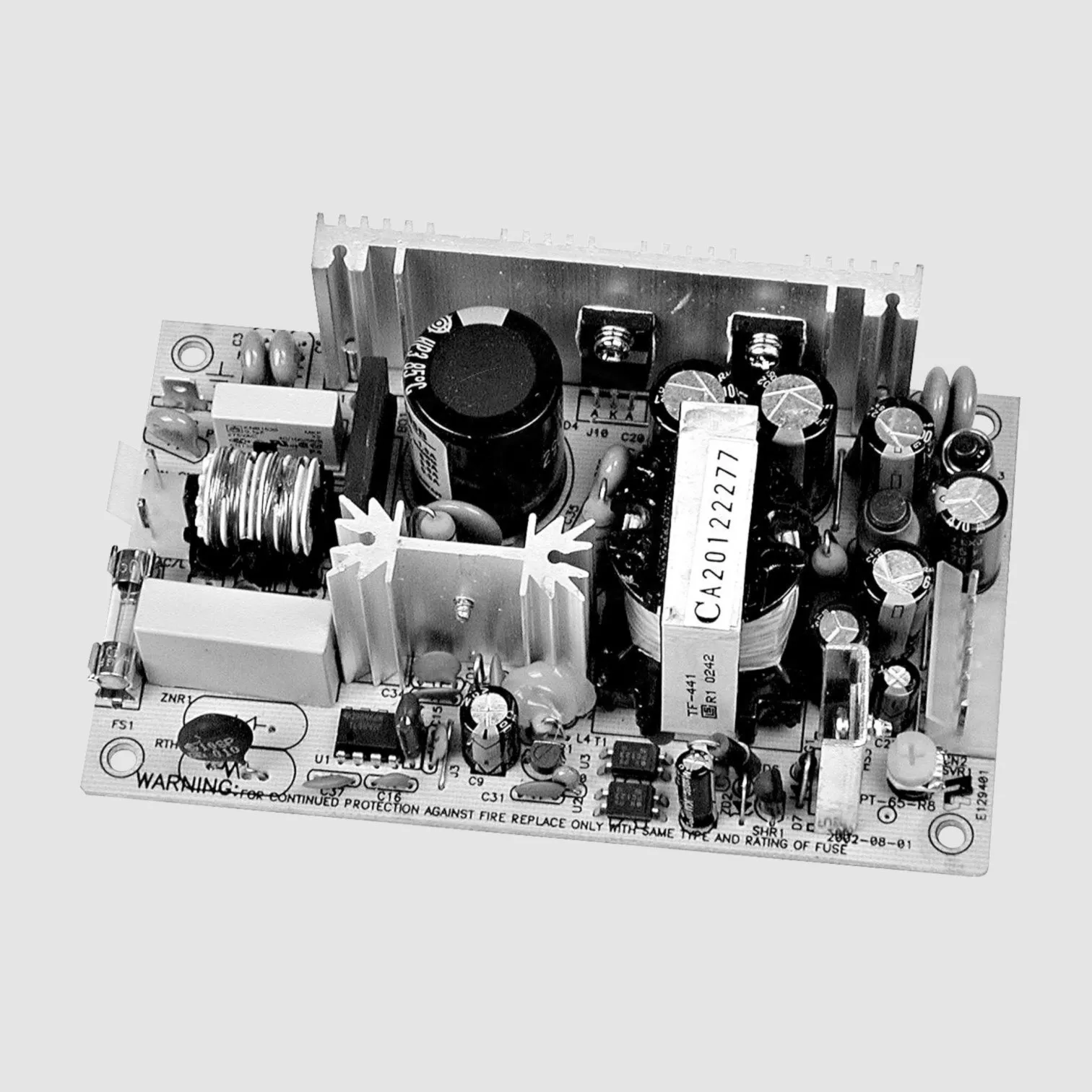

SPS Open Frame 65W 5/15/-15V
Varenummer:
105-657
Varekode: PT-65C
Vægt: 296 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem tirsdag d. 27/10
Gruppe:
L7165
MEANWELL Switching Power Supplies
Series: PT-65
Open Frame, Triple Output
Output: 60 to 68W
MEANWELL Switching Power Supplies
Series: PT-65
Open Frame, Triple Output
Output: 60 to 68W
| Features |
| Open frame Contact pin for nylon-crimp terminals Universal input Overload protection, pulsing hiccup shutdown, auto recovery Overload protection, current limiting, auto recovery Protections: short circuit/over load/over voltage |
 |
| Technical Specifications |
| |
| Input Voltage: | 90...264V AC (47...440Hz) |
| 127...370V DC | |
| Input Inrush Current, Max.: | 40A |
| Leakage Current, Max.: | 0,75mA |
| Output Voltage Adjustment: | +10/-5% |
| Over Load Protection: | 73...95W |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -10...+60C |
| Weight: | 250g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UA | IA | PA1) | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| PT-65A | 5 | 0,4...7 | 60 | 4 | 50 | 76 |
| 12 | 0,2...3,2 | 7 | 120 | |||
| -5 | 0...0,7 | 5 | 50 | |||
| PT-65B | 5 | 0,4...7 | 63,5 | 4 | 50 | 77 |
| 12 | 0,2...3,2 | 7 | 120 | |||
| -12 | 0...0,7 | 5 | 100 | |||
| PT-65C | 5 | 0,4...7 | 65 | 4 | 50 | 77 |
| 15 | 0,2...2,6 | 7 | 120 | |||
| -15 | 0...0,7 | 5 | 100 | |||
| PT-65D | 5 | 0,5...5 | 68 | 4 | 50 | 79 |
| 12 | 0,2...4 | 6 | 100 | |||
| 24 | 0,2...1,3 | 6 | 200 | |||
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency, 1) The Sum of the Power Used by the Individual Channels Must Not Exceed the Total Power Rating. | ||||||
| ||||||
| Note |
| You will find suitable crimp housings in product group L7611. |
|
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
Inkl. moms
Kr. 278,91
- v/5 – Kr. 198,12
- v/10 – Kr. 175,00
