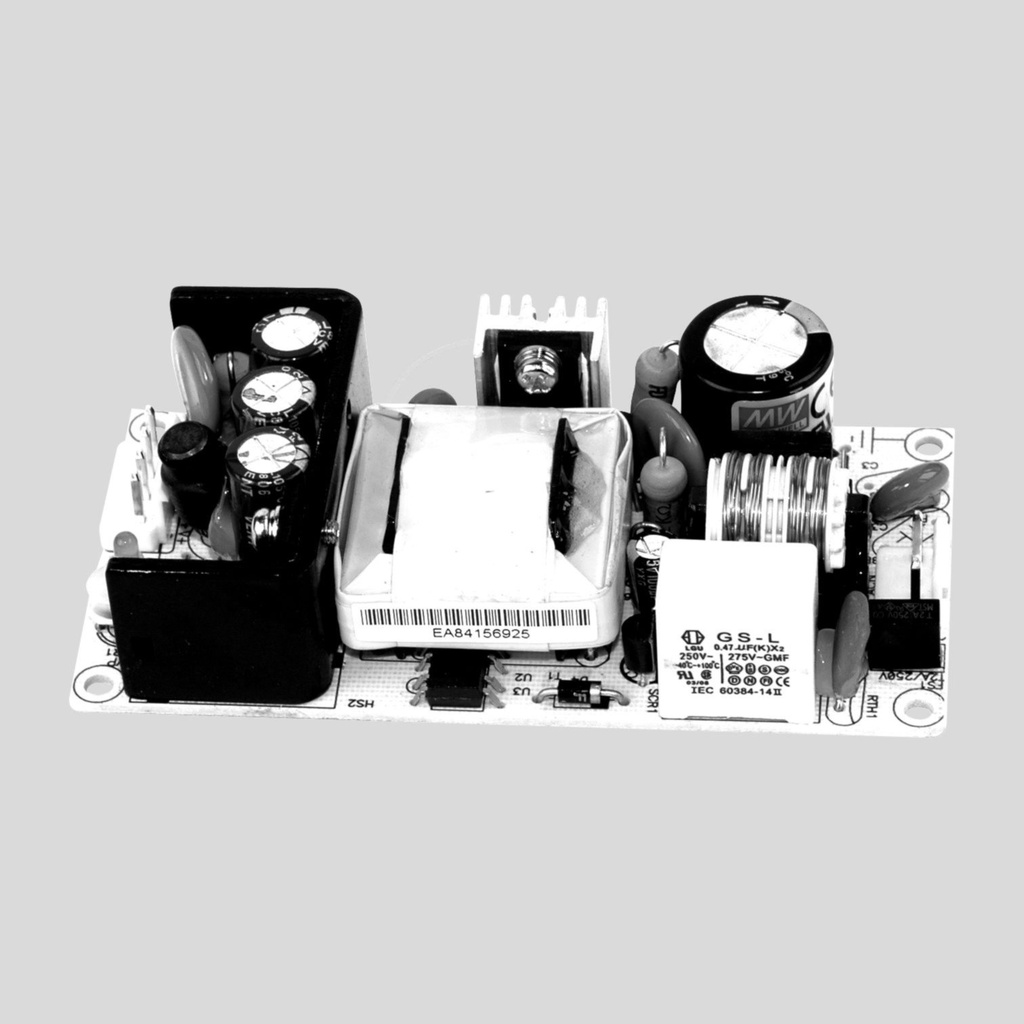

SPS Open Frame 36W 12V/3A
Varenummer:
105-641
Varekode:
PS-35-12
Vægt:
140 g
Lagerstatus:
Ikke på lager
Gruppe:
L7144
MEANWELL Switching Power Supplies
Series: PS-35
Open Frame, Single Output
Output: 19 to 36W
MEANWELL Switching Power Supplies
Series: PS-35
Open Frame, Single Output
Output: 19 to 36W
| Features |
| • Open frame • Contact pin for nylon-crimp terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage |
 |
| Technical Specifications |
| |
| Input Voltage: | 90...264V AC (47...440Hz) |
| 127...370V DC | |
| Input Inrush Current, Max.: | 45A |
| Leakage Current, Max.: | 2mA |
| Output Voltage Adjustment: | ±10 |
| Over Load Protection: | 105...150% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -20...+65°C |
| Weight: | 124g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| PS-35-3.3 | 3,3 | 0...6 | 19,8 | 2 | 80 | 70 |
| PS-35-5 | 5 | 0...6 | 30 | 2 | 100 | 78 |
| PS-35-7.5 | 7,5 | 0...4,7 | 35,25 | 2 | 100 | 80 |
| PS-35-12 | 12 | 0...3 | 36 | 1 | 120 | 81 |
| PS-35-13.5 | 13,5 | 0...2,6 | 35,1 | 1 | 120 | 81 |
| PS-35-15 | 15 | 0...2,4 | 36 | 1 | 150 | 81 |
| PS-35-24 | 24 | 0...1,5 | 36 | 1 | 200 | 85 |
| PS-35-48 | 48 | 0...0,75 | 36 | 1 | 240 | 84 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
| ||||||
| Note |
| You will find suitable crimp housings in product group F1445. |
|
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
