- Universal AC input/Full range
- Built-in active PFC function, PF>0.93
- Protections: Short circuit/Overload/Over voltage
- Built-in constant current limiting circuit
- Low profile: 33mm thickness
- LED indicator for power on
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz

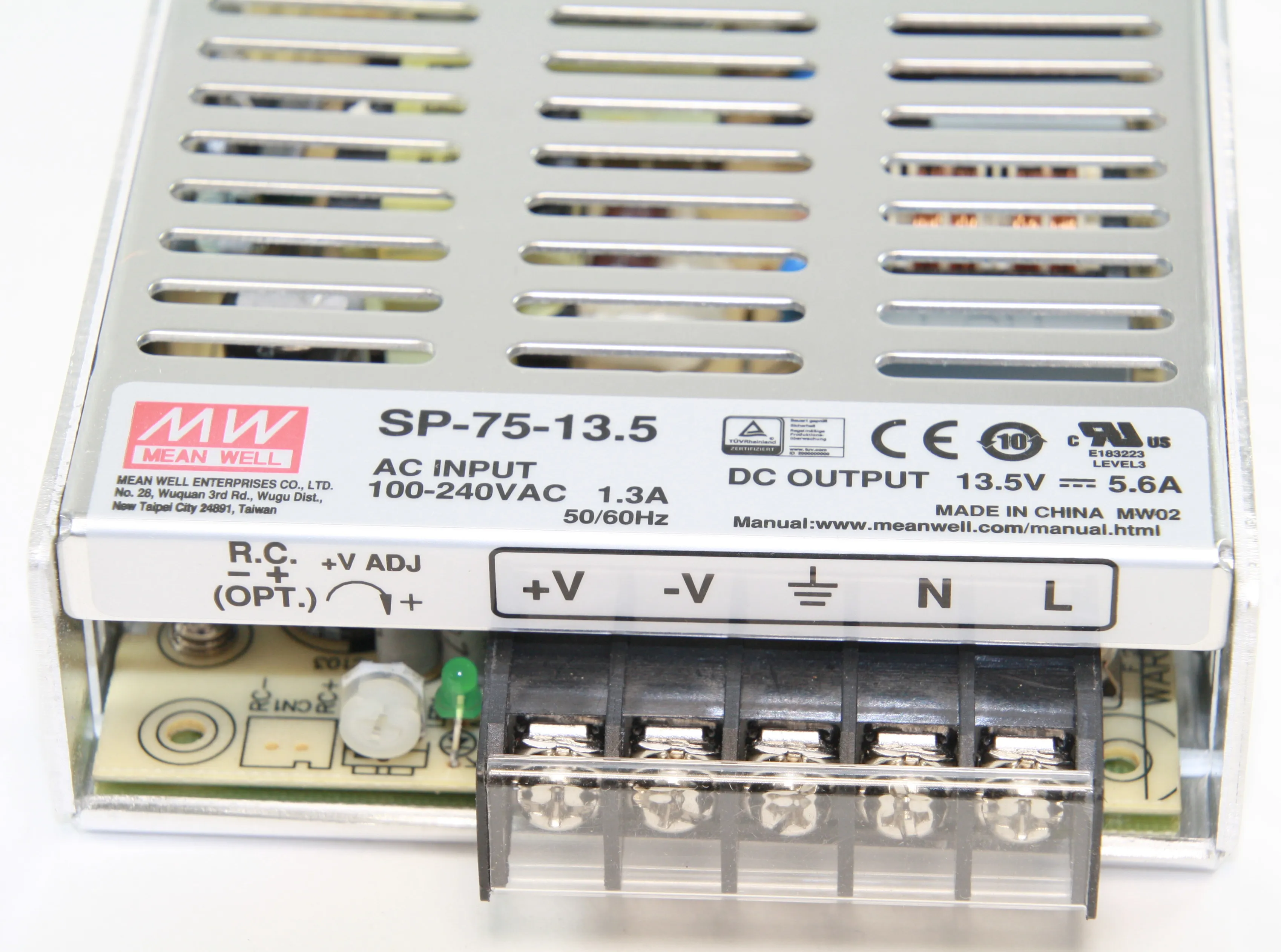

SPS Case 75,6W PFC 13,5V/5,6A
Varenummer:
105-461
Varekode: SP-75-13,5
Vægt: 570 g
1 stk.
på lager
SP-75 Series - 75W Single Output Switching Power Supply
Additional information
| Voltage (max/rated) |
14V |
|---|---|
| Current (amps) |
6A |
| Power (watts) |
76W |
| R&N (mV) |
80mV |
| Efficiency (%) |
78% |
Produktfiler
SPS Case 75,6W PFC 13,5V/5,6A
105-461
/ SP-75-13,5
1 stk.
på lager
SP-75 Series - 75W Single Output Switching Power Supply
- Universal AC input/Full range
- Built-in active PFC function, PF>0.93
- Protections: Short circuit/Overload/Over voltage
- Built-in constant current limiting circuit
- Low profile: 33mm thickness
- LED indicator for power on
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
Additional information
| Voltage (max/rated) |
14V |
|---|---|
| Current (amps) |
6A |
| Power (watts) |
76W |
| R&N (mV) |
80mV |
| Efficiency (%) |
78% |
Produktfiler
